2.6 STATUS LED

The SPARK can display information about its current mode of operation via its tri-colored STATUS LED. The STATUS
LED is located next to the motor output terminals and is labeled as STATUS with raised lettering on the SPARK housing.

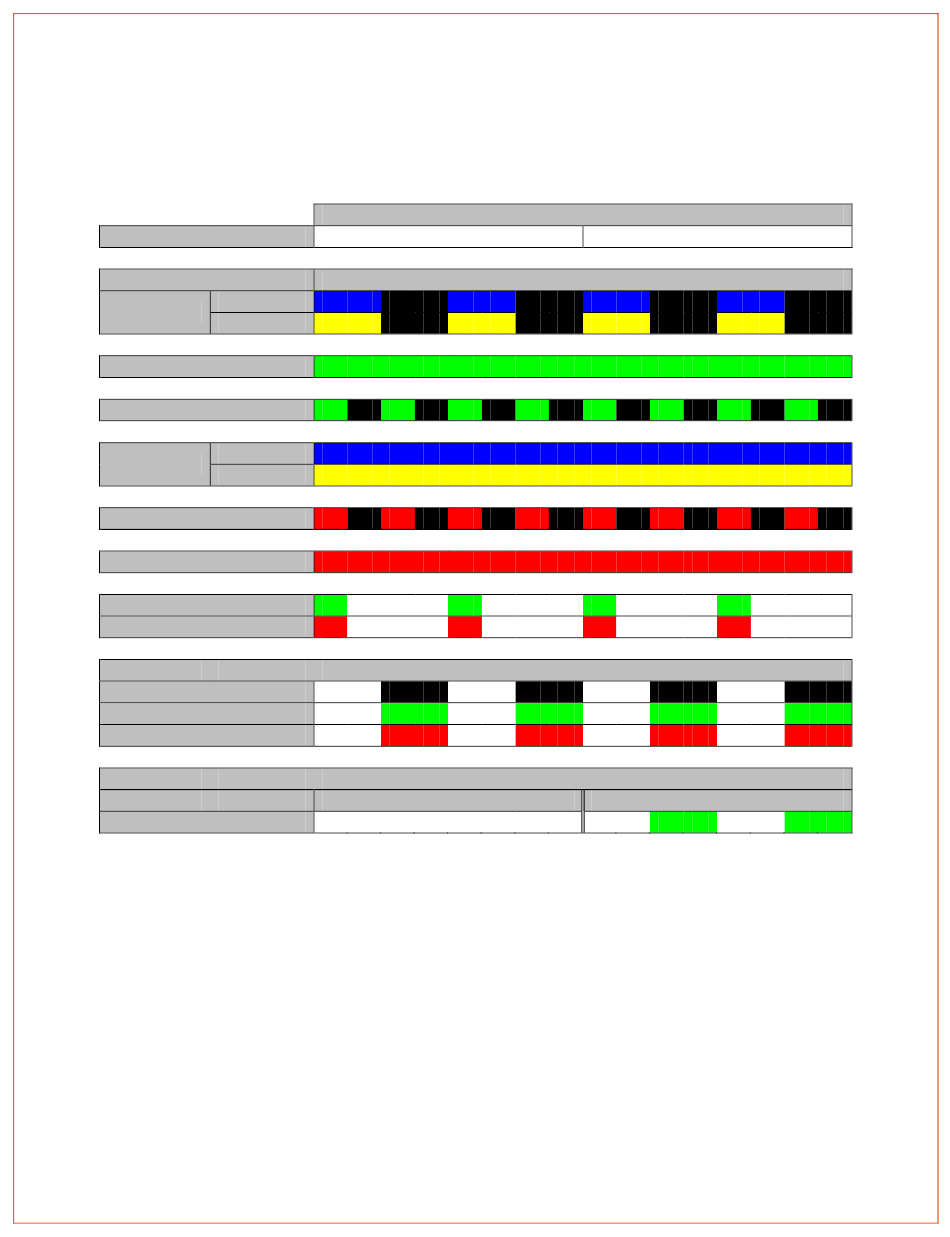

Figure 2-6 shows the status codes associated with each operating state of the SPARK.
Time Scale
State
No Signal
Full Forward
Proportional Forward
Neutral
Proportional Reverse
Full Reverse
Forward Limit Tripped
Reverse Limit Tripped
Calibration Mode
Successful Calibration
Failed Calibration
Reset to Factory Defaults
REV-11-1200-UM-00
1 second
Brake
Coast
Brake
Coast
Mode button held during power up

Figure 2-6 LED Status Codes

Copyright © 2016 REV Robotics, LLC
LED Status Code
1 second
Normal Operation
Calibration
Factory Reset
Mode button released
14
