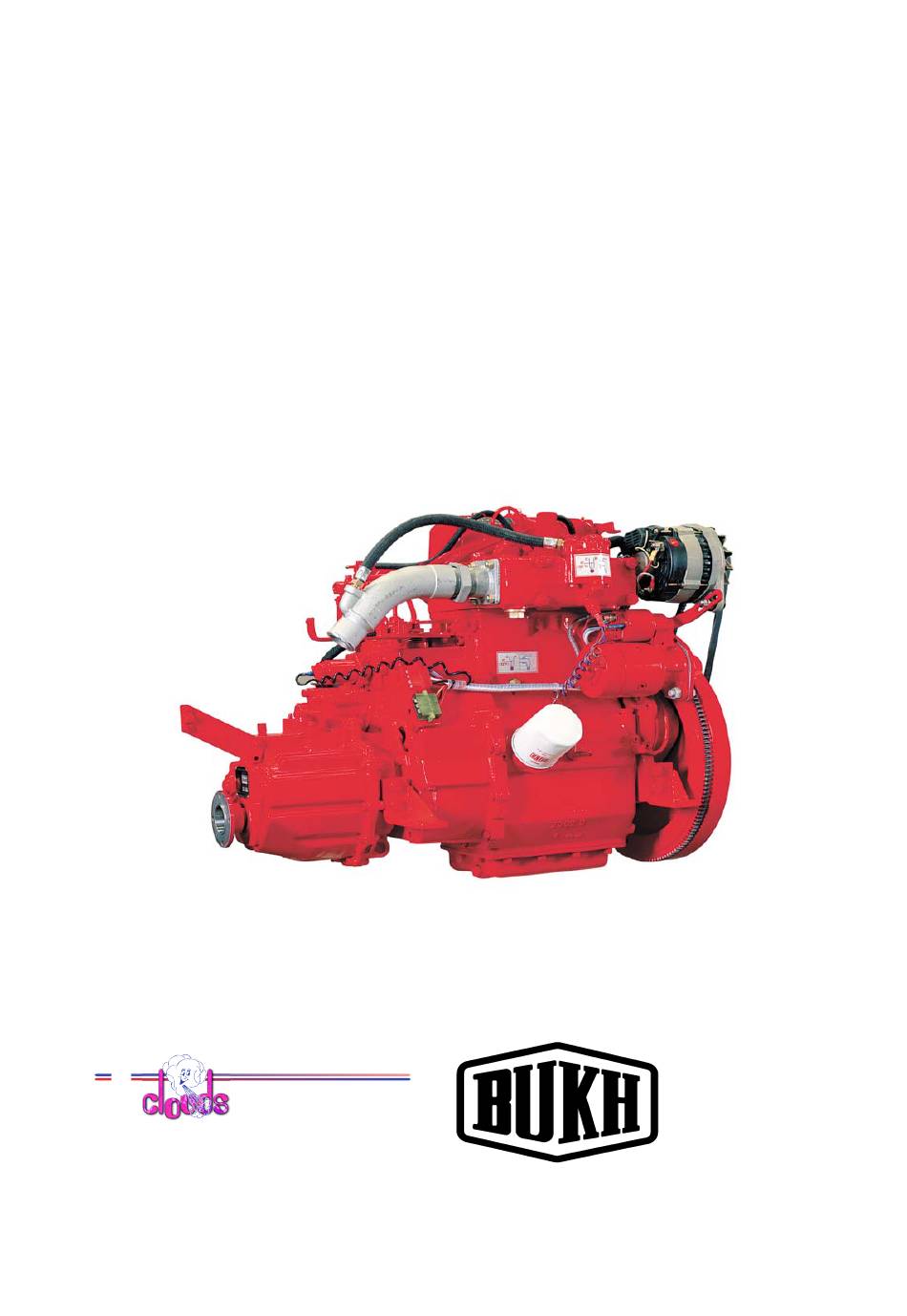

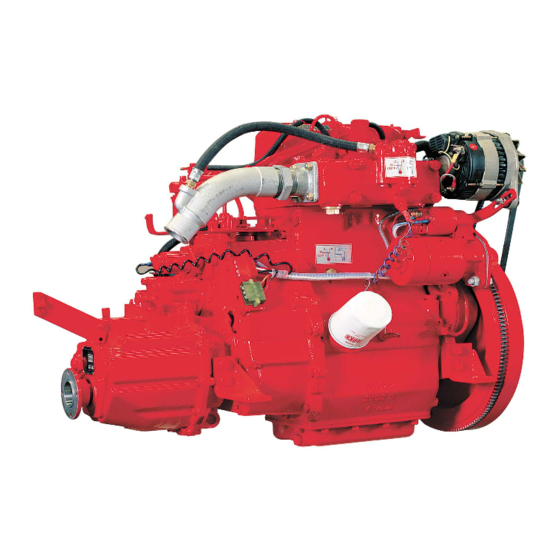

OWNER'S HANDBOOK
FOR
BUKH MARINE DIESEL ENGINE
TYPE DV24 ME
AABENRAA MOTORFABRIK
Heinrich Callesen A/S
International B.V.
Næstmark 30, P.O. Box 79
1e Industrieweg 6A
DK 6200 AABENRAA
3411 MG LOPIK
Telefoon 0348 - 55 16 44
Tel: +45 74 62 20 88
Telefax 0348 - 55 08 73
E-mail info@clouds.nl
Fax: +45 74 62 74 07
www.clouds.nl
E-mail: bukh@bukh.dk
www.bukh.dk
009W0825-R02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bukh DV24 ME
Summary of Contents for Bukh DV24 ME
- Page 1 OWNER'S HANDBOOK BUKH MARINE DIESEL ENGINE TYPE DV24 ME AABENRAA MOTORFABRIK Heinrich Callesen A/S International B.V. Næstmark 30, P.O. Box 79 1e Industrieweg 6A DK 6200 AABENRAA 3411 MG LOPIK Telefoon 0348 - 55 16 44 Tel: +45 74 62 20 88 Telefax 0348 - 55 08 73 E-mail info@clouds.nl...
-
Page 2: Table Of Contents
OPERATING MANUAL FOR BUKH DV24ME ENGINES CONTENTS Page Pictures for recognition of engine..........3 Introduction................... 4 Standard equipment ..............4 Operating manual................. 4 Preparation for the first start............5 Before start................... 5 Electric start.................. 5 Hand start..................5 After start..................6 Maneuvering................. -
Page 3: Pictures For Recognition Of Engine
OPERATING MANUAL FOR BUKH DV24ME ENGINES 1. Plug for draining off lubricating oil 2. Reversible engine mountings 3. Fuel lift pump 4. Cooling water pump 5. Dipstick for engine oil 6. Raised hand start 7. Air filter with noise suppression 8. -
Page 4: Introduction
If a problem with the engine should arise, we ask you to apply to one of our distributors, who will always be ready to help you, having skilled personnel, necessary tools etc., and at the same time you will be sure that only original BUKH spare parts are used. -
Page 5: Preparation For The First Start
Important:The stuffing box shall under no circumstances be force-lubricated. These instructions are only valid for propeller equipment supplied by BUKH. If other equipment is mounted, we refer to the instructions given for this. We always recommend checking of oil level before start. -
Page 6: After Start
OPERATING MANUAL FOR BUKH DV24ME ENGINES After Start When the engine has started, the RPM should be 800-1000 RPM when idling. Check the oil pressure. Normally this should be 2-4.5 bar. With cold engine the RPM should be kept down so that the oil pressure does not exceed 4.5 bar. -
Page 7: Fuel Lift Pump
OPERATING MANUAL FOR BUKH DV24ME ENGINES Fuel lift pump The fuel lift pump is a cam shaft driven sealed type diaphragm pump, which cannot be dismantled for repair or cleaning. It is recommended to install a water/dirt accumulating filter in the suction line to the pump. -
Page 8: Freshwater Cooling
OPERATING MANUAL FOR BUKH DV24ME ENGINES Freshwater Cooling When using freshwater cooling it will be possible to reach a higher operating temperature of 70-95°C which will prolong the life of the engine. This cooling system is recommended for engines operating for more than 500 hours a year. A pump circulates the freshwater in a closed system. -
Page 9: Propeller Equipment
OPERATING MANUAL FOR BUKH DV24ME ENGINES Propeller equipment (As supplied by BUKH – for other types consult individual manufacturer’s instructions) Flexible stern tube: Every three years replace the three seal rings in the stuffing box “A” and the rubber hose “B” connecting stuffing boxand inter- mediate tube “C”... -
Page 10: Galvanic Corrosion
Starting Instructions for BUKH Diesel Engine type DV24ME Electric Start: a) Switch on the main switch. -
Page 11: Winter Storage Of The Engine
OPERATING MANUAL FOR BUKH DV24ME ENGINES WINTER STORAGE OF THE ENGINE 1. Carry out the following whilst the boat is still in the water: Run the engine until normal workingtemperature is reached. Drain off engine and gear oil with the oil bilge pump. -
Page 12: Technical Data For Engine And Gearbox
OPERATING MANUAL FOR BUKH DV24ME ENGINES TECHNICAL MAIN DATA WORKING PRINCIPLE....................4-STROKE NUMBER OF CYLINDERS .................... 2 CYLINDER BORE/STROKE ..................85 mm / 85 mm SWEPT VOLUME ......................0.964 Litres COMPRESSION RATIO ....................18,5:1 COMPRESSION PRESSURE ...at 3600 rpm............47 Bar OUTPUT, CONTINOUS RATING ..at 2000 rpm..... -
Page 13: Recommended Maintenance And Checklist
OPERATING MANUAL FOR BUKH DV24ME ENGINES RECOMMENDED MAINTENANCE AND A CHECK LIST FOR BUKH ENGINES EVERY CHECK RECTIFY IF NEEDED YEARS Tightness of connections through hull: stern tube hull connection change sealing Check of lubricating oil: 2.1 a engine change oil 2.1.b engine... -
Page 14: Irregular Operation
OPERATING MANUAL FOR BUKH DV24ME ENGINES IRREGULAR OPERATION - CAUSES AND REMEDIES 1. Engine does not start SYMPTOM CAUSE REMEDY Insufficient or very little compression Inlet and/or exhaust valves leaking Grind or replace the valves, mill the seats Grease valve stems with 2/3 gas oil and 1/3 Inlet and/or exhaust valves sticking lub. -
Page 15: Lubricating Oil Chart
OPERATING MANUAL FOR BUKH DV24ME ENGINES LUBRICATING OIL CHART Lubricating oil Auxili- for engine: aries temp range OIL COMPANY OIL TYPE HD OIL GRADE & QUALITY BP OIL VISCO 5000 SAE 5W-40 API SJ/CF BP OIL Vanellus C4 Global SAE 15W-40 API CF-4/CF/SG... -
Page 16: El-Diagram
OPERATING MANUAL FOR BUKH DV24ME ENGINES - 16 - 009W0825-R02... -
Page 17: Dv24 Installation
OPERATING MANUAL FOR BUKH DV24ME ENGINES Installation: DV24 - 17 - 009W0825-R02... -
Page 18: General Terms Of Sale And Delivery
OPERATING MANUAL FOR BUKH DV24ME ENGINES General Terms of Sale and Delivery 1. Introduction If payment should be effected later than the stipulated settling date, interest shall be paid on The terms of sale and delivery specified below shall overdue payments at the rate of 1.5 per cent per...
