- Page 1 AC TrueTone Effects Pedal...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 01.09.2022, ID: 256818 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 7 Safety instructions............................. 8 Features............................... 10 Installation and starting up........................ 11 Connections and operating elements................... 13 Technical specifications........................14 Protecting the environment...................... - Page 4 AC TrueTone Effects Pedal...
-
Page 5: General Information
General information General information This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual. -
Page 6: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Symbols And Signal Words
General information The letterings for connectors and controls are marked by square brackets and italics. Letterings Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. -
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is con‐ sidered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly the user.
-
Page 10: Features

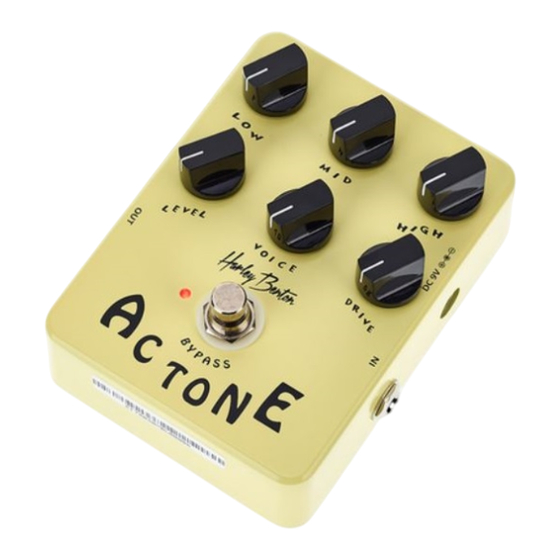

Features Features Effects pedal for electric guitars Overdrive Analogue Level, Voice and Drive controls Low, Mid and High 3-band-EQ controls Power supply via 9-V block battery or power adapter (both not included) AC TrueTone Effects Pedal... -
Page 11: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 12 Installation and starting up To insert or change the battery, disconnect a possibly used power adapter from the mains Changing the battery socket. Turn the pedal over, press lightly on the battery compartment cover and slide it down‐ wards in the direction of the arrow. Remove the back cover. Insert/replace the 9-V block bat‐ tery paying attention to the polarity markings and place the cover again into its original posi‐...
-
Page 13: Connections And Operating Elements
Connections and operating elements Connections and operating elements 1 [IN] | 1/4" jack socket to connect instruments 2 This LED lights when the effects pedal is used. When the LED is off or dim while the effects pedal is used, the battery is exhausted and must be replaced. 3 [TRUE BYPASS] | foot switch for enabling or disabling the pedal function &... -
Page 14: Technical Specifications
Technical specifications Technical specifications Input connections Power supply Socket for power adapter Instrument 1/4" jack socket Input impedance 1 MΩ Output connections 1/4" jack socket Output impedance 1 kΩ Current consumption 3.8 mA Power supply External power adapter, 100 - 240 V 50/60 Hz Power adapter Secondary current... - Page 15 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Distortion Metal Overdrive Fuzz includes power supply no, optionally available (item no. 409939) includes battery no, optionally available (item no. 417473) AC TrueTone Effects Pedal...
-
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. - Page 17 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose this device through an approved waste disposal firm or through your local waste facility.
