Summary of Contents for Harley Benton PowerPlant Tuner

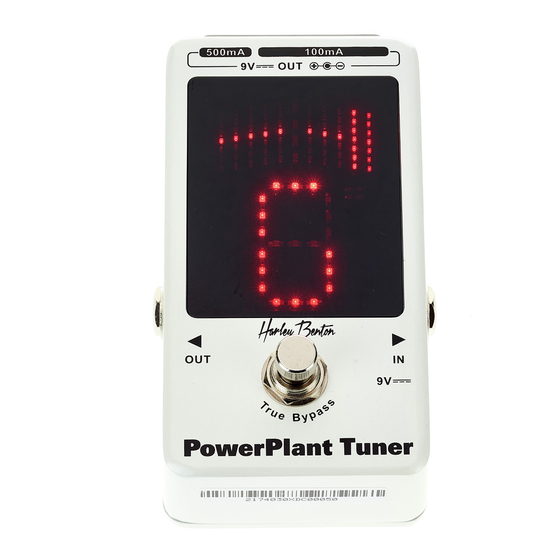

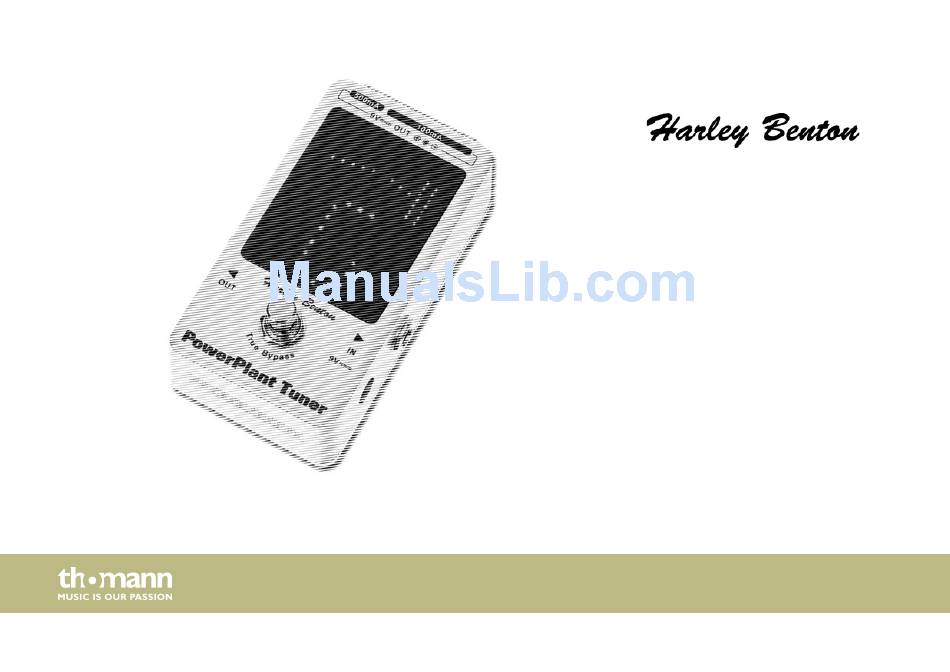

- Page 1 PowerPlant Tuner tuner pedal with power distribution user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 25.01.2016, ID: 372334...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features................................8 Starting up..............................9 Connections and controls........................10 Operating..............................13 Technical specifications........................14 Protecting the environment......................15 PowerPlant Tuner... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner. - Page 5 General notes Warning signs Type of danger Warning – danger zone. PowerPlant Tuner...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for tuning musical instruments as well as for power distribu‐ tion. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or prop‐... - Page 7 Failure to do so could result in damage to the device and pos‐ sibly the user. Unplug the external power supply before electrical storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or fire. PowerPlant Tuner...
-
Page 8: Features
Features Features Chromatic tuner pedal with external power supply for up to eight further 9 V units Suitable for guitar and bass 12 Hz … 4186 Hz Accuracy ± 1 cent Excellent readability due to large LED / LC display Power supply via stabilized DC power adapter (100 …... -
Page 9: Starting Up
Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. Handle the device with care. Do not try to disassemble or repair the device yourself if it should not work. Do not use solvents such as alcohol to clean the device. PowerPlant Tuner... -
Page 10: Connections And Controls
Connections and controls Connections and controls Front panel tuner pedal with power distribution... - Page 11 6 Six output sockets for the power supply of further devices with 9 V, each loadable with 100 mA. 7 Two output sockets for the power supply of further devices with 9 V, each loadable with 500 mA. PowerPlant Tuner...
- Page 12 Connections and controls Rear panel 6 Six output sockets for the power supply of further devices with 9 V, each loadable with 100 mA. 7 Two output sockets for the power supply of further devices with 9 V, each loadable with 500 mA. tuner pedal with power distribution...
-
Page 13: Operating
When tuning is finished, switch the device to True Bypass mode to feed the unchanged signal to connected devices such as amplifiers or other effects devices. In this mode, the red LED in the centre of the display goes out. PowerPlant Tuner... -
Page 14: Technical Specifications
Operating supply voltage DC 9 V , 2 A via supplied wall wart Max. current draw 120 mA (PowerPlant Tuner only, no further devices connected) Dimensions (W × H × D) 70 mm × 55 mm × 122 mm Weight... -
Page 15: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. PowerPlant Tuner... - Page 16 Notes tuner pedal with power distribution...
- Page 17 Notes PowerPlant Tuner...
- Page 18 Notes tuner pedal with power distribution...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
