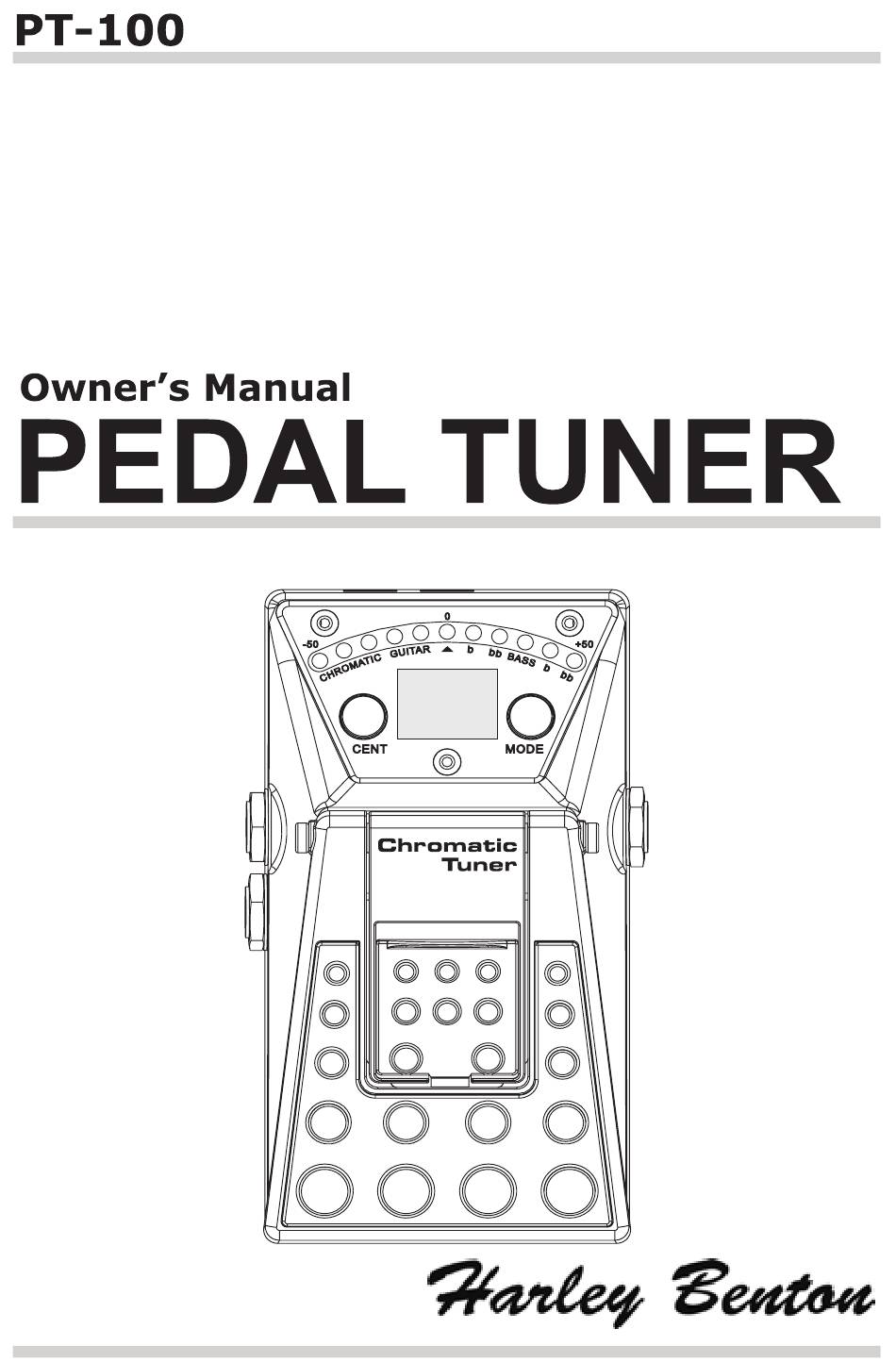

Summary of Contents for Harley Benton PT-100
-
Page 2: Safety Advice
Safety advice Intended use • This pedal tuner is exclusively meant for the tuning of electrical string instruments. The device is not intended for use in commercial or industrial environments. No warranty claims will be granted for damage resulting from improper use! Risk of electrical shocks! •... - Page 3 Risk of fire! • Never leave the device unattended while it is being used. • Do not place any open sources of fire, like candles, on the device. • Do not use the device in the vicinity of hot surfaces, stoves, radiators or the like. Risk of personal injury! • Keep the device away from children. Children frequently underestimate the dangers of electrical equipment.
- Page 4 The operational controls q 9V DC input socket w 9V DC output socket e Audio input socket r Audio output socket t Bypass output socket y Pedal switch u Mode button i Cent button...
- Page 5 1. 9V DC Input Jack Please connect to this jack when using a 9V DC adapter (35 mA minimum, not provided) to supply the tuner. The tuner will auto-power-on when a DC adapter is connected, and the inside battery supply will be cut off at the same time. 2. 9V DC Output Jack A same electric supply can be obtained from the 9V DC output jack when an adapter is connected to the tuner, for the use of other devices.
- Page 6 products or amplification equipment. When audio signal is inputted and ready for outputting: a) If the tuner is ON, no audio signal will be available from this jack. b) If the tuner is OFF, audio signal will be available from this jack. (Please use this connection, if you don‘t need sound when tuning your instrument). 5. Bypass Output Jack This is another jack for the connection of effects products or amplifiers. The output of this jack is not affected by the ON/OFF state of the tuner. (Please use this connection, if you need sound when tuning your instrument). 6. Pedal Switch Stomp this switch to turn on/off the tuner, and turn on/off the output of audio signals from “OUTPUT” at the same time. The tuner will auto-power-off, if no audio signal is detected within 3 minutes.
- Page 7 The sequence of tuning mode: When you‘ve selected the desired tuning mode, the indicator light will start to flicker in 2 seconds indicating entering tuning state. When you‘ve powered off the tuner after using, the tuning mode will be back to Chromatic mode when the tuner is powered on next time. 8 “A4” adjusting key Repeatedly pressing the “CENT” key to adjust the base frequency within the range from 435 to 445Hz. The corresponding value will be shown in the display.
-
Page 8: Changing The Battery
performing and vice versa. The tuner returns to default state when powered off. (A4=440Hz). When A4 440Hz, the indicator light will turn to blue when sensing the tone of instrument is correct during the tuning. Changing the battery If the display becomes darker or the sensitivity of tuning declines, please exchange the battery with a new one of the same type. - Page 9 3. Take the old battery out, and remove it from the connecting socket. 4. Put a new battery onto the socket and put it into the battery compartment as the arrow shows. 5. Put the battery compartment lid into the groove and push it into end.
- Page 10 Connections...
-
Page 11: Tuner Operation
Tuner operation 1. Powering on. a) When using an adapter the tuner will auto-power-on when the 9V DC input jack is connected with the adapter. b) When using battery the tuner will auto-power-on when the “INPUT” jack is connected with an audio signal cable. • When the tuner is powered on, the display and panel will show the default state for 3 seconds. - Page 12 versa. The display shows the last two digits of the currently selected frequency. 4. Play your instrument. Please adjust the volume of the amplifier which is connected to the tuner properly before playing your instrument. 5. Automatic tuning. a) When an instrument is detected under chromatic mode, the display will show the corresponding note name of the tuned instrument.
- Page 13 When an instrument is detected, the tuner will automatically check and display the note name, string number and warp of the tone. 6. Adjust the pitch of your instrument according to the tuning result. a) When the displayed note name and string number match the actual note name and string name of your instrument, and the centre indicator of the LED meter (the 0 position) is lit, the tone of the tuned instrument is correct. b) When the displayed note name and string number match the actual note name and string name of your...
- Page 14 the actual note name should be “1E”, the tone of this instrument is half note too low. You should tune up your instrument until the two note names match each other. Then repeat method b) to tune your instrument to the correct tone. d) When the displayed string number does not match the string number of your instrument, tune the instrument according to the sounding features of your...
-
Page 15: Specifications
• The display of the current state will last for 3 seconds, then the tuner will return to tuning mode. Cleaning Clean the device only with a dry or lightly moistened cloth. Do not use aggressive cleaning agents like alcohol or solvents. Specifications Power Supply 9V DC or Battery (9V/6F22) Consumption <35 mA (tuner) Tuning modes Chromatic, Bass, Guitar Tuning Range 27.5Hz - 1760 Hz Tolerance ±3 cent A4 Pitch Adjusting 435 Hz - 445 Hz... - Page 16 Disposal Do not throw the device in your normal domestic waste. This device is subject to the European Guidelines 2002/96/EG. Tuner • Dispose of the product or its parts via a professional waste disposal company or at your communal waste disposal facility. •...
- Page 20 Contact: Musikhaus Thomann Treppendorf 30 96138 Burgebrach Germany www.thomann.de...
