- Page 1 Vintage Tremolo effects pedal user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 16.10.2012...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Instructions for use........................... 9 Components and functions........................ 10 Technical specifications........................13 Protecting the environment......................14 Vintage Tremolo... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. Vintage Tremolo...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is con‐ sidered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 7 Never let children unattended use electrical devices. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Vintage Tremolo...
- Page 8 Safety instructions NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period.
-
Page 9: Instructions For Use
Handle the device with care. Do not try to disassemble or repair the device yourself in the unlikely event that it does not work. Do not use solvents such as alcohol to clean the device. Vintage Tremolo... -
Page 10: Components And Functions

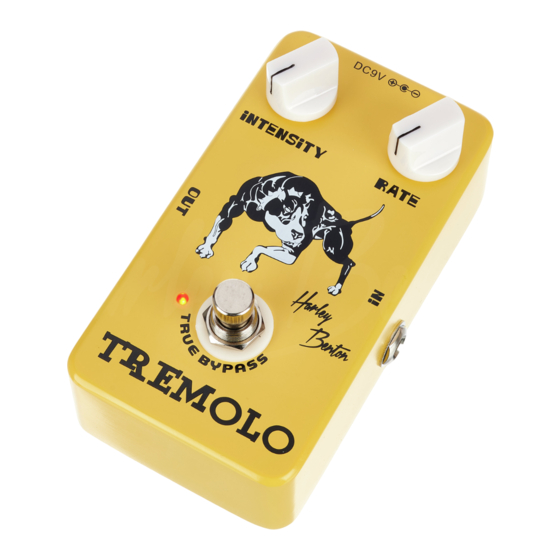

Components and functions Components and functions 1 INTENSITY Turn this knob clockwise to increase the intensity of the effect. 2 DC 9V Connection for power supply via an external DC 9V adaptor. When using external power supply, the battery supply is automatically disconnected. 3 RATE Turn this knob clockwise to increase the speed of the effect. - Page 11 You can either use a 9 V battery or the DC 9 V connection for an external power supply. Before connecting, check for correct polarity. When you do not use the pedal unplug the instrument cable from the input jack. Otherwise, the battery will be discharged. Vintage Tremolo...
- Page 12 Components and functions Changing the battery To insert or change the battery, disconnect a possibly used power adapter from the mains socket. Turn the pedal over, press lightly on the battery compartment cover and slide it down‐ wards in the direction of the arrow. Remove the back cover. Insert/replace the 9 V DC battery paying attention to the polarity markings and place the cover again into its original position until it locks.
-
Page 13: Technical Specifications
7 mA Operating voltage supply 9 V battery (6F22) 9 V power adaptor, inner contact = negative pole 48 V phantom power Dimensions (L × W × H) 120 mm × 72 mm × 55 mm Weight 280 g Vintage Tremolo... -
Page 14: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. - Page 15 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Vintage Tremolo...
