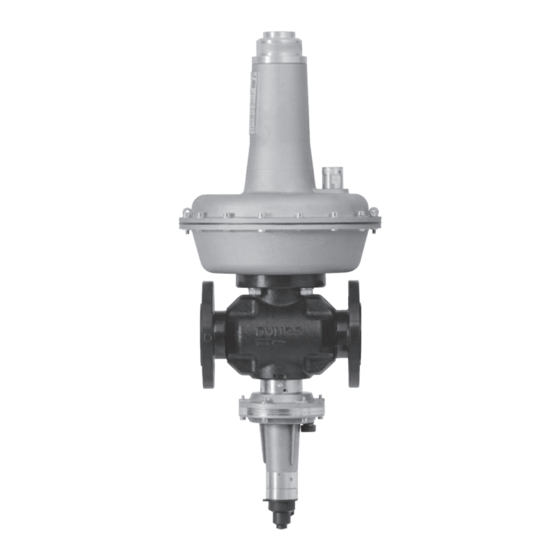

Instruction Manual
FRM-NOC

1 Target group

This manual is intended for personnel qualified in gas
safety and regulation technology, as well as personnel
trained or instructed by them.
The former are in a position to judge the work assigned
to the latter on the basis of their technical training,
knowledge and experience, as well as knowledge of the
relevant regulations, and are able to recognise potential
dangers. Only they are permitted to carry out assembly,
commissioning, settings and maintenance on the devices
in compliance with the recognised rules for occupational
safety.

2. Warnings

2.1 General warnings

The recognised occupational safety
rules and accident prevention
regulations must be observed and,
if necessary, personal protective
measures must be taken.
All adjustments and settings should
only be performed in accordance
with the instruction manuals of the
connected machines.
Never carry out work as long as gas
pressure or voltage is applied. Avoid
naked flames. Please observe public
regulations.
Prior to assembly, the device must be
inspected for transport damage.
The device must not be exposed to
naked flames. Protection against
lightning strikes must be guaranteed.
Connected line systems must be free
from dirt and contamination.
1 ... 76
Hang this instruction manual in a clearly visible
place inside the installation room! Do not carry out
any work until you have read the safety instructions
of this instruction manual and are qualified to do so.
Protection from environmental
impacts and weather conditions
(corrosion, rain, snow, icing,
humidity (e.g. by condensation),
mould, UV radiation, harmful insects,
poisonous, corrosive solutions/liquids
(e.g. cutting and cooling fluids), must
be guaranteed. Depending on the
installation site, it may be necessary
to take protective measures.
The device may only be operated
in compliance with the operating
conditions stated on the type plate.
The device must be protected from
vibrations and mechanical impacts.
The device must not be used in areas
with increased seismic risk.
Explanation of the symbols
1, 2, 3,... =
Act based on
the sequence
=
Instruction
