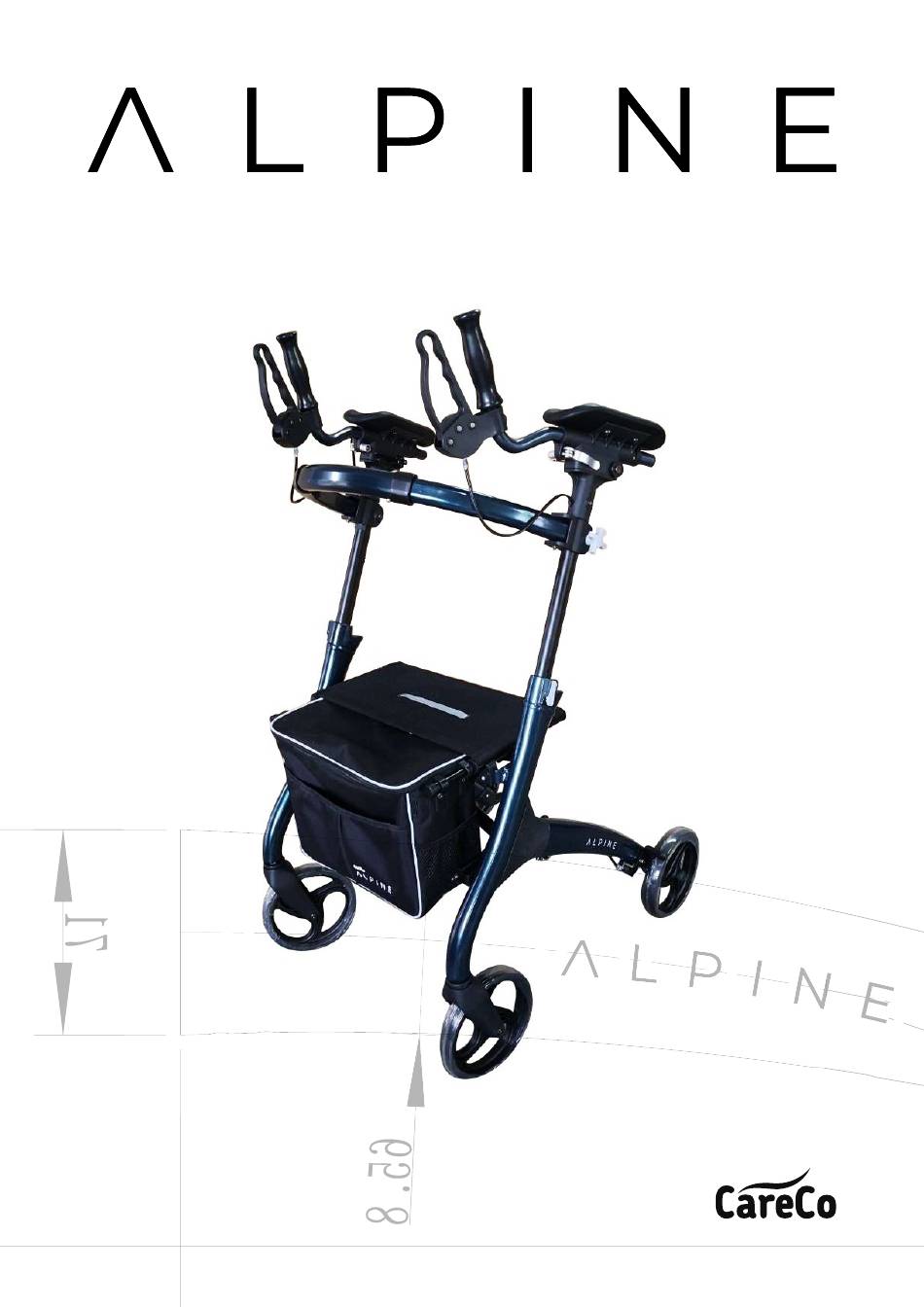

- Page 1 F O R E A R M R O L L A T O R USER MANUAL WA01082 PRODUCT CODE...
- Page 2 NOTES Check all parts for shipping damage. In case of shipping damage, Do NOT use. Contact Dealer further instruction. SAFETY SUMMARY To ensure the safe operation of the Alpine Forearm Rollator, these instructions MUST be followed: General warning • DO NOT install or use this equipment without first reading and understanding •...
- Page 3 WA01082 PRODUCT CODE General warning • When using the rollator in a stationary position, the hand brakes MUST be locked. • DO NOT put your full weight on the linkage component nor use it as a handle to carry the Walker. It is designed only for the purpose of connecting the two armrest supports, neither for supporting the user nor carrying the Walker.
- Page 4 WA01082 PRODUCT CODE OPENING/FOLDING THE ROLLATOR Note: Refer to the FOLDING/ASSEMBLY WARNINGS in the SAFETY SUMMARY of this instruction sheet. OPENING Notes: For clearer display, the bag is not attached to the rollator. 1. Install the hand grip with brake & armrest component to the top of the side tube, and rotate the black lever by 90 degrees and then lock it to the slot, as shown in Figure 1.
- Page 5 WA01082 PRODUCT CODE OPENING/FOLDING THE ROLLATOR 4. Press the snap button and adjust it to the appropriate position. Make sure the snap button protrudes through the hole on the linkage component, as shown in Figure 4. FIGURE 4 5. Before using, test the rollator by grasping the side frames and attempt to pushing slightly inward with some force.
- Page 6 WA01082 PRODUCT CODE OPENING/FOLDING THE ROLLATOR FOLDING Note: For clearer display, the bag is not attached to the rollator. 1. Press the snap button and adjust it to the appropriate position. Make sure the snap button protrudes through the hole on the linkage component, as shown in Figure 6. FIGURE 6 2.
- Page 7 WA01082 PRODUCT CODE ADJUSTING HANDRAIL/ HAND GRIP/ BRAKE CABLES Notes: Refer to the INSTALLATION WARNINGS in the SAFETY SUMMARY of this instruction sheet. 1. Release the knob and adjust the height handrails upward or downward to the desired height. Ensure both handrails are at the same height and the knob is locked after height adjustment, as shown in figure 8.
- Page 8 3. Check the wheels are locked and installed properly. 4. Make sure the quick release kit is locked. 5. Replace any broken, damaged or worn items immediately. 0333 015 5000 | CareCo UK Limited , Hubert Road, Brentwood, Essex, CM14 4JE...
