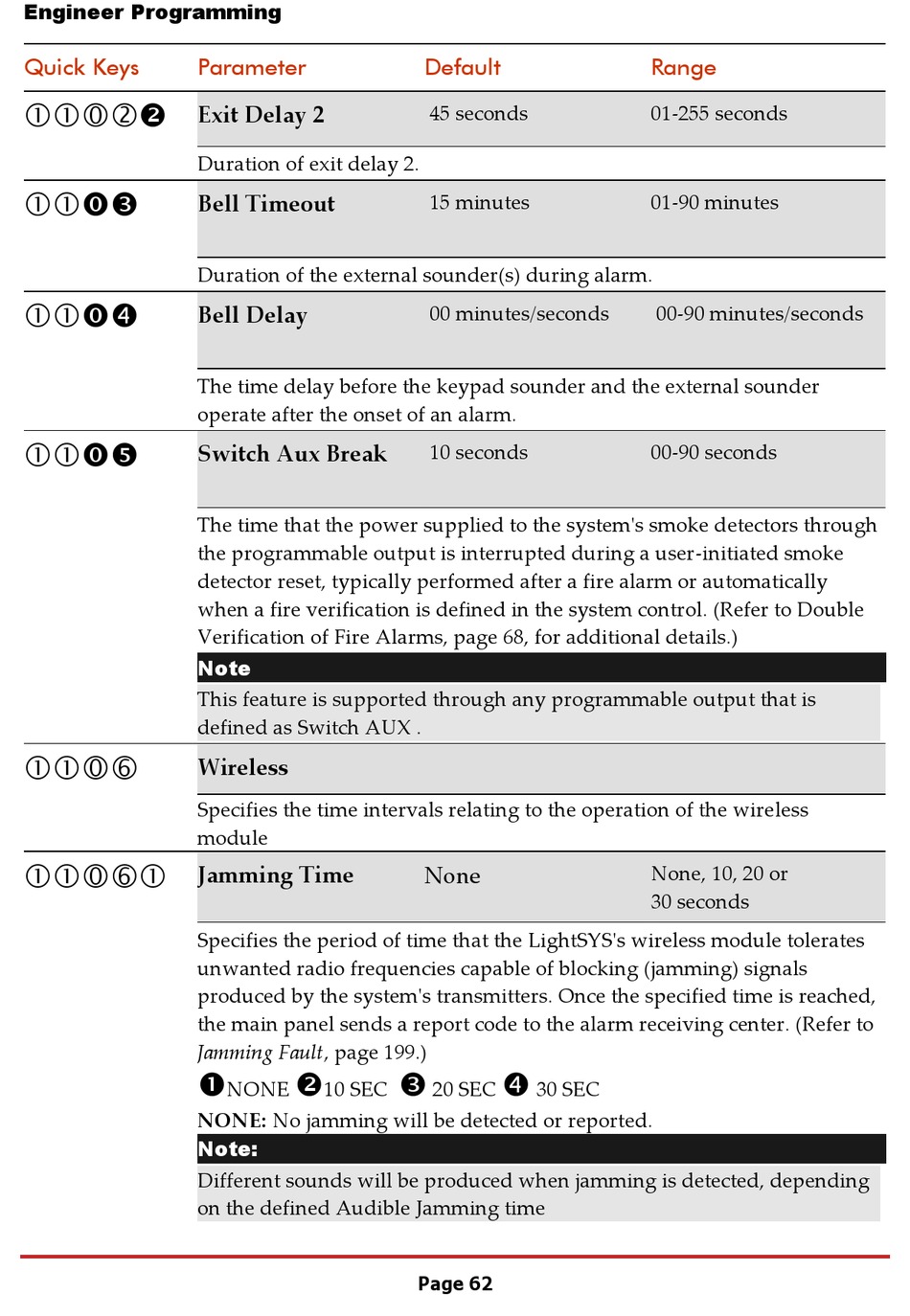

Risco LightSYS Installation And Programming Manual page 62

Engineer Programming
Quick Keys






Parameter
Exit Delay 2
Duration of exit delay 2.
Bell Timeout
Duration of the external sounder(s) during alarm.
Bell Delay
The time delay before the keypad sounder and the external sounder
operate after the onset of an alarm.
Switch Aux Break
The time that the power supplied to the system's smoke detectors through
the programmable output is interrupted during a user-initiated smoke
detector reset, typically performed after a fire alarm or automatically
when a fire verification is defined in the system control. (Refer to Double
Verification of Fire Alarms, page 68, for additional details.)
Note
This feature is supported through any programmable output that is
defined as Switch AUX .
Wireless
Specifies the time intervals relating to the operation of the wireless
module
Jamming Time
Specifies the period of time that the LightSYS's wireless module tolerates
unwanted radio frequencies capable of blocking (jamming) signals
produced by the system's transmitters. Once the specified time is reached,
the main panel sends a report code to the alarm receiving center. (Refer to
Jamming Fault, page 199.)
 
NONE 10 SEC
NONE: No jamming will be detected or reported.
Note:
Different sounds will be produced when jamming is detected, depending
on the defined Audible Jamming time
Default
45 seconds
15 minutes
00 minutes/seconds
10 seconds
None
 
20 SEC 30 SEC
Page 62
Range
01-255 seconds
01-90 minutes
00-90 minutes/seconds
00-90 seconds
None, 10, 20 or
30 seconds
