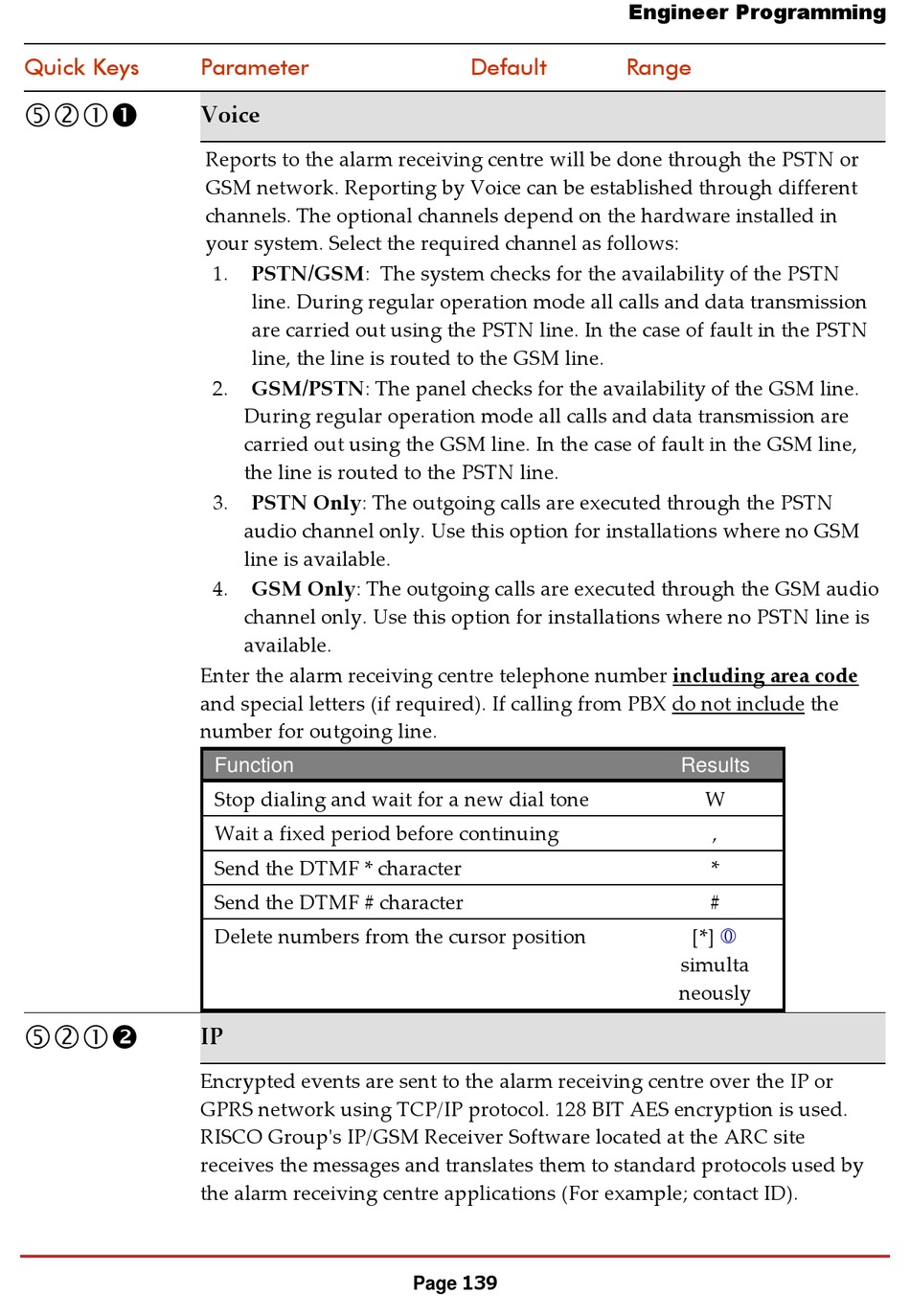

Risco LightSYS Installation And Programming Manual page 139

Quick Keys


Parameter
Voice
Reports to the alarm receiving centre will be done through the PSTN or
GSM network. Reporting by Voice can be established through different
channels. The optional channels depend on the hardware installed in
your system. Select the required channel as follows:
1. PSTN/GSM: The system checks for the availability of the PSTN
line. During regular operation mode all calls and data transmission
are carried out using the PSTN line. In the case of fault in the PSTN
line, the line is routed to the GSM line.
2. GSM/PSTN: The panel checks for the availability of the GSM line.
During regular operation mode all calls and data transmission are
carried out using the GSM line. In the case of fault in the GSM line,
the line is routed to the PSTN line.
3. PSTN Only: The outgoing calls are executed through the PSTN
audio channel only. Use this option for installations where no GSM
line is available.
4. GSM Only: The outgoing calls are executed through the GSM audio
channel only. Use this option for installations where no PSTN line is
available.
Enter the alarm receiving centre telephone number including area code
and special letters (if required). If calling from PBX do not include the
number for outgoing line.
Function
Stop dialing and wait for a new dial tone
Wait a fixed period before continuing
Send the DTMF * character
Send the DTMF # character
Delete numbers from the cursor position
IP
Encrypted events are sent to the alarm receiving centre over the IP or
GPRS network using TCP/IP protocol. 128 BIT AES encryption is used.
RISCO Group's IP/GSM Receiver Software located at the ARC site
receives the messages and translates them to standard protocols used by
the alarm receiving centre applications (For example; contact ID).
Default
Page 139
Engineer Programming
Range
Results
W
,
*
#

[*]
simulta
neously
