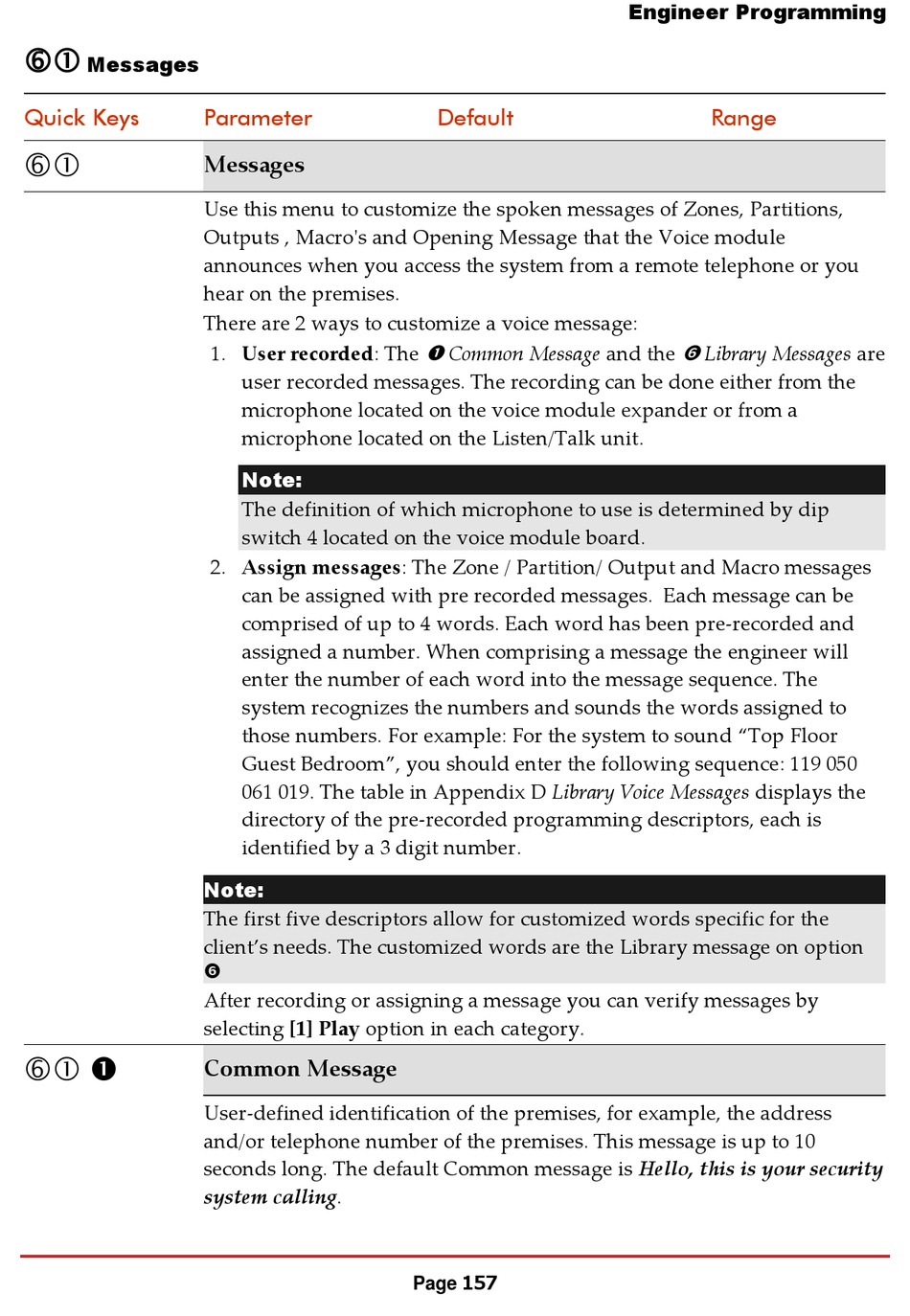

Messages - Risco LightSYS Installation And Programming Manual



Messages

Quick Keys

 
Parameter
Messages
Use this menu to customize the spoken messages of Zones, Partitions,
Outputs , Macro's and Opening Message that the Voice module
announces when you access the system from a remote telephone or you
hear on the premises.
There are 2 ways to customize a voice message:
1. User recorded: The
user recorded messages. The recording can be done either from the
microphone located on the voice module expander or from a
microphone located on the Listen/Talk unit.
Note:
The definition of which microphone to use is determined by dip
switch 4 located on the voice module board.
2. Assign messages: The Zone / Partition/ Output and Macro messages
can be assigned with pre recorded messages. Each message can be
comprised of up to 4 words. Each word has been pre‐recorded and
assigned a number. When comprising a message the engineer will
enter the number of each word into the message sequence. The
system recognizes the numbers and sounds the words assigned to
those numbers. For example: For the system to sound "Top Floor
Guest Bedroom", you should enter the following sequence: 119 050
061 019. The table in
directory of the pre‐recorded programming descriptors, each is
identified by a 3 digit number.
Note:
The first five descriptors allow for customized words specific for the
client's needs. The customized words are the Library message on option

After recording or assigning a message you can verify messages by
selecting [1] Play option in each category.
Common Message
User-defined identification of the premises, for example, the address
and/or telephone number of the premises. This message is up to 10
seconds long. The default Common message is Hello, this is your security
system calling.
Default

Common Message and the
‎
A ppendix D Library Voice Messages displays the
Page 157
Engineer Programming
Range

Library Messages are
