Desk Top Mounted Screen (UNSBWS)
A
B
NOTE: Desk Top Mounted Glass Screen with
Flat Edge Worksurface shown as an example.
For Solid Screen installation, please refer to
Installation Guide DIS_305a).
Date:
Dec 2015
DIS_305b_G01

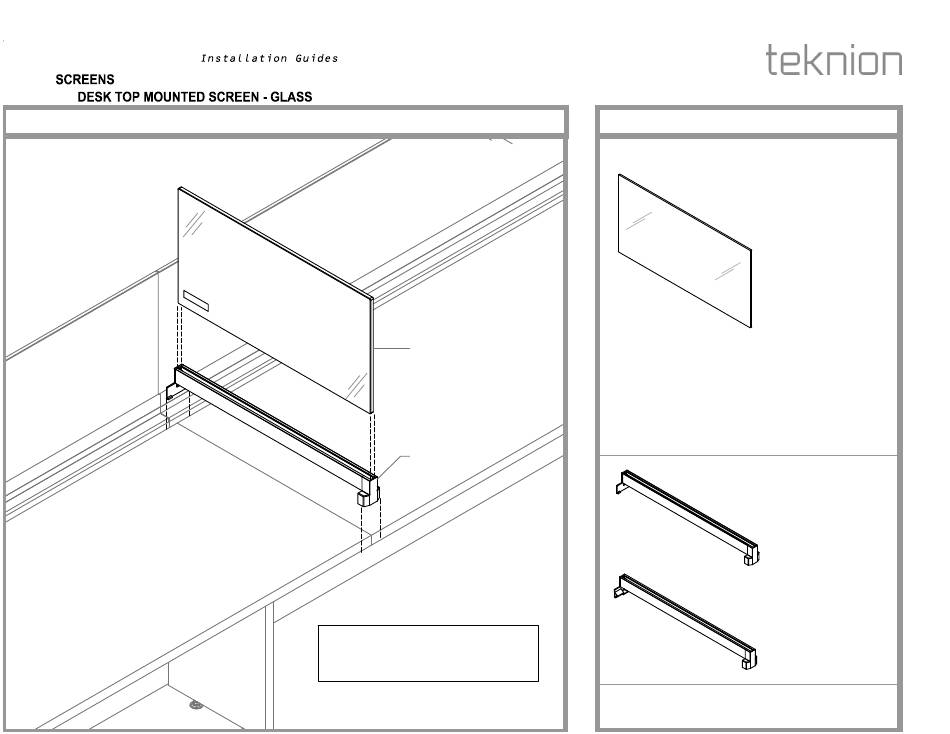

Part and Product Identification
A - 10 mm Tempered Glass for Desk Top Mounted Screen
(H01-1023) x1
OR
- 10 mm Laminated Glass for Desk Top Mounted Screen
(H01-1037) x1
B - Desk Top Mounted Screen
For Glass - Flat Edge - Sub.II
(N15-0812) x1
OR
- Desk Top Mounted Screen
For Glass - Knife Edge - Sub.II
(N15-0813) x1
For Customer Support please contact
product.support@teknion.com
Page No:
1 of 4
Rev. No: 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the district UNSBWS and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion district UNSBWS

  • Page 1 - Desk Top Mounted Screen For Glass - Knife Edge - Sub.II (N15-0813) x1 NOTE: Desk Top Mounted Glass Screen with Flat Edge Worksurface shown as an example. For Solid Screen installation, please refer to Installation Guide DIS_305a). For Customer Support please contact product.support@teknion.com...
  • Page 2 district Section: Date: Dec 2015 Page No: 2 of 4 Description: DIS_305b_G02 BASE RAIL INSTALLATION DETAILS (FLAT EDGE WORKSURFACE) Side View Underside View Tumb Screw STEP 1: Drop Base Rail on an angle to engage back Bracket to the underside of Worksurface. STEP 2a: Secure the Rail in place by rotating thumb screw.
  • Page 3 district Section: Date: Dec 2015 Page No: 3 of 4 Description: DIS_305b_G03 DETAIL (KNIFE EDGE WORKSURFACE) INSERT SCREEN PANE Side View Foam Thumb Screw Underside View STEP 2b: Secure the Rail in place by rotating thumb screw. STEP 3: Engage Screen pane into rail cavity between Base Rail Subassembly Foam and inserts.
  • Page 4 district Section: Date: Dec 2015 Page No: 4 of 4 Description: DIS_305b_G04 LOCATION ADJUSTMENT SECURE IN PLACE Reverse View STEP 4: Pull Screen towards user edge. STEP 5: Use 5/64" Allen Key to tighten set screws firmly but not excessive. For Glass Screens :DO NOT USE EXTENSION ON ALLEN KEY.
