VERSION
# 20-0 7-09
1 / 8

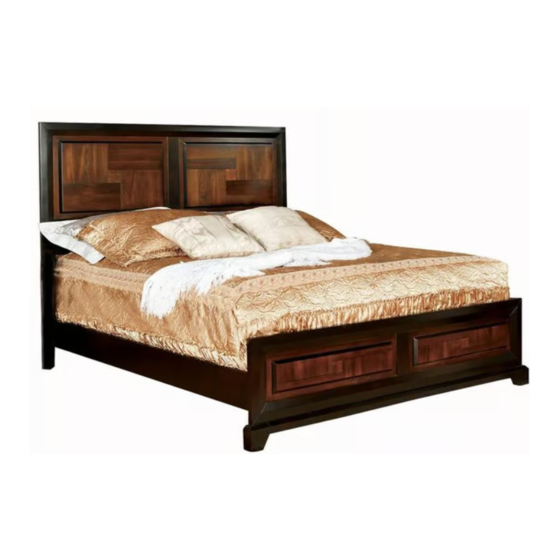

MODEL #
CM 7152EK/CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
Wrench
(Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7152EK
Summary of Contents for Furniture of America CM7152EK
- Page 1 MODEL # CM 7152EK/CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) Wrench (Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 CM 7152EK/CK #4 2pcs #1 1pc #2 1 pc #3 4 pc s Footboard Slat Side Rail Headboard #5 8 pcs #6 1pc #7 2pcs Ø1/4" Support Leg Headboard Down Rail Headboard Legs 170 x 30 x 30 mm #A 10 pcs #B 10 pcs #C 10 pcs #D 8 pcs...
- Page 6 CM 7152EK/CK is packed in 2 cases Carton Disignation Part Hardware #A 10pcs Headboard #B 10pcs #C 10pcs Footboard # I 1pc C M7152K-HB&FB Headboard Down Rail Headboard Legs # D 8pcs Slat # E 8pcs # F 8pcs C M7152EK/CK-R Side Rail # G 8pcs #H 8 pcs...
- Page 7 ASSEMBLY INSTRUCTIONS Align HB legs (#7) to the headboard (#1), then Part #1 x1pc secure by using bolts (#A) with washers Part #6 x1pc (#B,C). Part #7 x2pcs Hardware #A x10pcs Hardware #B x10pcs Hardware #C x10pcs Align HB rail (#6) to the HB legs (#7), then secure by using bolts (#A) with washers (#B,C).
- Page 8 ASSEMBLY INSTRUCTIO NS Attach threaded studs (#D) to the headboard and footboard (#2), then align the side rails (#4) to the P art #2 x1pc threaded studs (#D). Secure by Part using hex nuts (#E) with washers # 4 x 2 pcs (#F,G).
