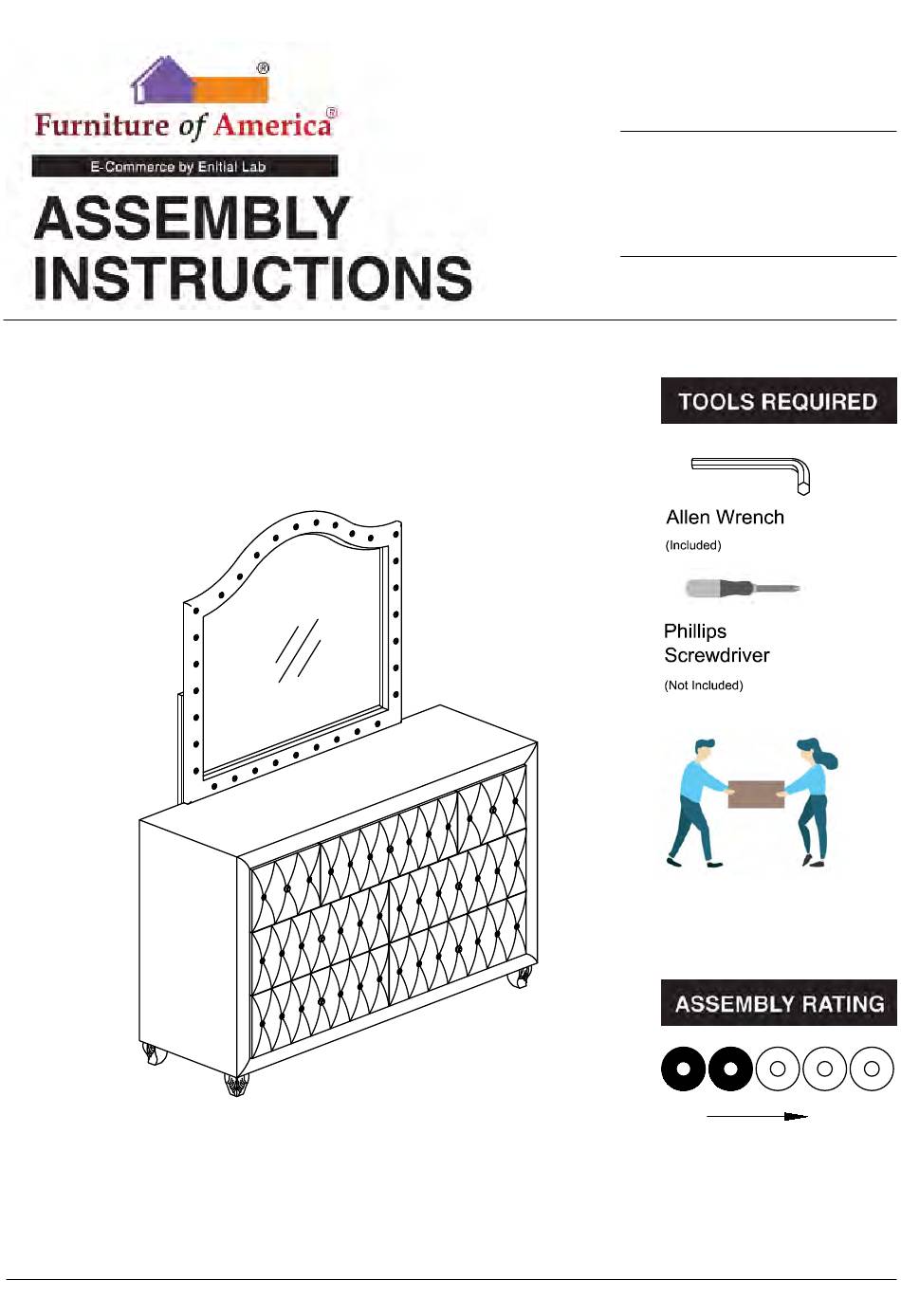

- Page 1 MODEL # CM7150D-M Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 20-06-0 5...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 0...
- Page 5 DRESSER&MIRROR CM7150D-M #4 4pcs #1 1pc #5 3pcs #2 1pc #3 2pcs Dresser Mirror Support Rob Bun Foot Support Leg 30x30x78mm #B 4pcs #C 4pcs #D 4pcs #A 4pcs Lock Washer Ø5/16" Flat Washer Ø5/16" Anti Slip Sheet Bolt Ø5/16" x 3-1/2"...
- Page 6 CM7150D-M is packed in 2 cases Dresser CM7150D Bun Foot #I 1Set Support Leg Support Rob CM7150M Mirror 6 / 10...
- Page 7 EXPORDED VIEW 50mm 20mm 40mm 40mm 7 / 10...
- Page 8 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part Part #4 x4pcs Part Part #5 x1pc Align legs (#4) with washers (#D) to the dresser (#1), then Hardware #A x4pcs secure by using bolts (#A) with washers (#B,C). Align and attach center leg (#5) to the dresser (#1), then adjust Hardware #B x4pcs the leveler according to ground level.
- Page 9 ASSEMBLY INSTRUCTIONS Part #2 x1pc Part Part #3 x1pc Hardware #F x8pcs Hardware #G x8pcs Hardware #H x8pcs Align mirror supports (#3) to the mirror (#2) and dresser (#1), then secure by using bolts (#A) with washers (#B,C). Remove knobs from the inside then secure Hardware #I x1Set knobs to the outside.
- Page 10 10/10...
