Summary of Contents for Furniture of America CM7153CK

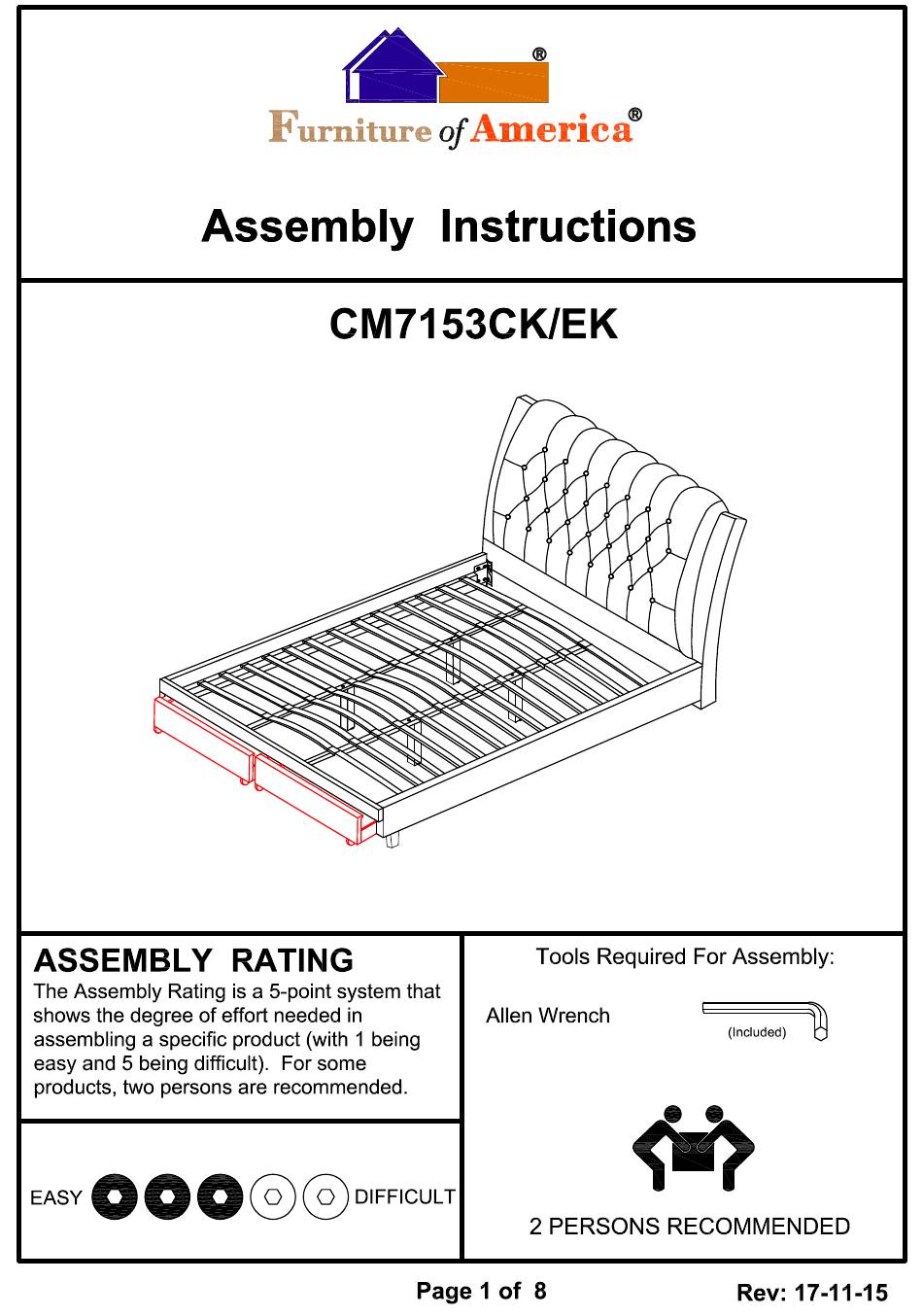

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 5 Prepare 2 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align side rail legs (#5) to the holes of the side rails (#2). Secure by using bolts (#C). Cut straps on the headboard (#1). Prepare 14 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto...
- Page 6 Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#B). Align support legs (#7) to the holes of the center support rails (#4). Secure by using bolts (#B). Prepare 2 bolt assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#B).
- Page 7 Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#B). Align center support rails (#4) to the holes of the headboard (#1) and footboard (#3). Secure by using bolts (#B). 1) Prepare 16 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#A).
- Page 8 Slide drawers in. Attach end and middle caps (#G,F) to the slats (#6). Insert slats to the side rails (#2) and center support rails (#4).
