S A 2 0 0

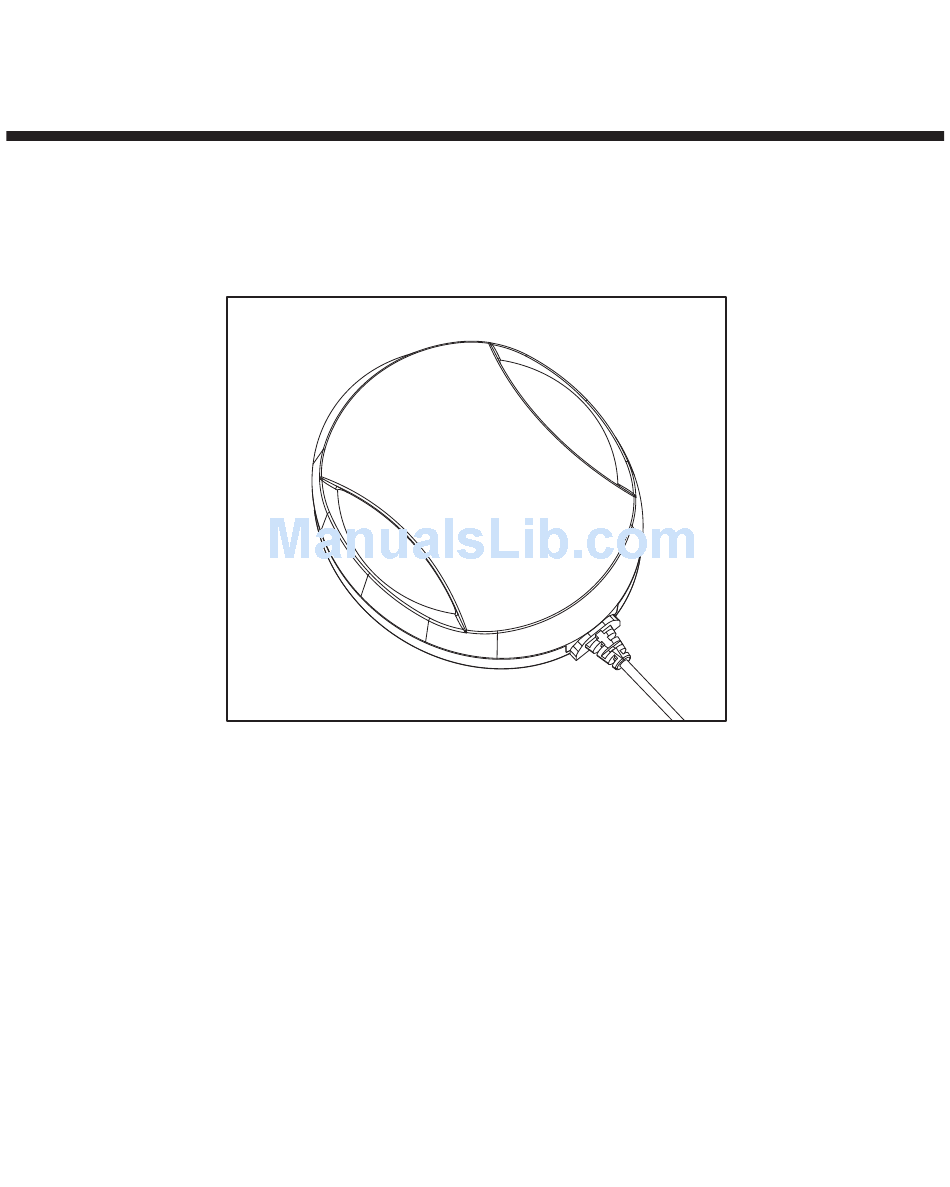

I N S T A L L A T I O N G U I D E
I n t r o d u c t i o n

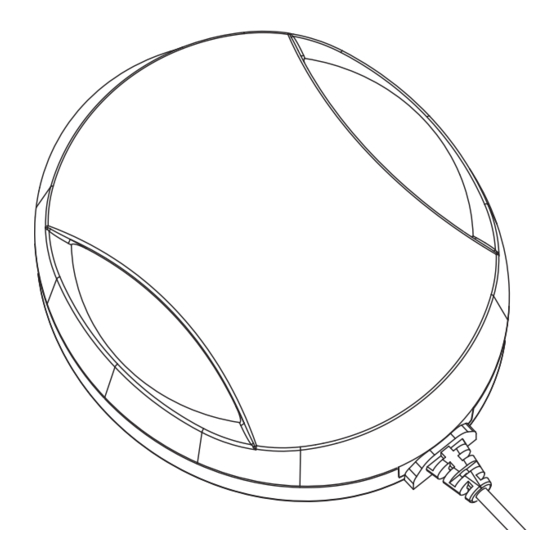

The Clarion SA200, a Sirius Satellite Radio approved
antenna, has been designed and engineered to receive
signal transmissions for Sirius' three satellites and network of
ground-based repeaters. This is a finely tuned antenna intended
to receive satellite signals throughout North America under
diverse conditions. It is imperative to read and understand
the "Installation Guide" to ensure optimum performance of the
satellite antenna.
