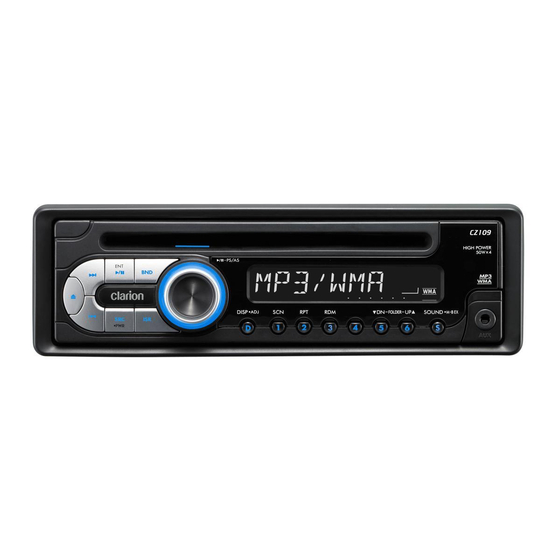

CD/MP3/WMA RECEIVER
AUTORADIO CD/MP3/WMA
CD/MP3/WMA-RECEIVER
SINTOLETTORE CD/MP3/WMA
CD/MP3/WMA-RADIO-COMBINATIE
RECEPTOR CD/MP3/WMA
CD/MP3/WMA-RADIO
RECEPTOR CD/MP3/WMA
Advertisement
Table of Contents
Related Manuals for Clarion CZ109ER
Summary of Contents for Clarion CZ109ER
- Page 1 Owner’s manual Mode d’emploi Bedienungsanleitung Istruzioni per l’uso Gebruiksaanwijzing Manual de instrucciones Bruksanvisning Manual de instruções CZ109E CZ109ER CZ109EG CD/MP3/WMA RECEIVER AUTORADIO CD/MP3/WMA CD/MP3/WMA-RECEIVER SINTOLETTORE CD/MP3/WMA CD/MP3/WMA-RADIO-COMBINATIE RECEPTOR CD/MP3/WMA CD/MP3/WMA-RADIO RECEPTOR CD/MP3/WMA...
- Page 2 APPARATET BØR KUN ÅBNES AF FAGFOLK MED SÆRLIGT KENDSKAB TIL APPARATER MED LASERSTRÅLER! Indvendigt i apparatet er anbragt den her gengivne advarselsmækning, som advarer imod at foretage sådanne indgreb i apparatet, at man kan komme til at udsaætte sig for laserstråling. CZ109E/CZ109ER/CZ109EG...
-
Page 3: Table Of Contents
Thank you for purchasing this Clarion product. Please fully read this owner’s manual before operating this equipment. Check the contents of the enclosed warranty card and store it in a safe place with this manual. Contents 1. FEATURES ............................3 2. -
Page 4: Controls
• Turn the power on/off. • Select folders while in MP3/WMA mode. [x], [v] buttons [DIRECT] buttons • Commence fast-forward/fast-reverse mode. • Store radio stations in memory or recall it directly while in radio mode. [Q] (EJECT) button • Press to eject disc. CZ109E/CZ109ER/CZ109EG... -
Page 5: Dcp (Detachable Control Panel)
Main unit connector Note: • If the DCP is dirty, wipe off with a soft, dry cloth only. Attaching the DCP 1. Insert the right end of DCP into main unit. 2. Press left end of DCP into main unit. CZ109E/CZ109ER/CZ109EG... -
Page 6: Operations
3-2. Press the [ ] button. 3-3. Turn the [ROTARY] knob to adjust the setting (Setting range: – 3 to +3). The factory default setting is “0”. 3-4. Press the [ ] button to return to the previous mode. CZ109E/CZ109ER/CZ109EG... - Page 7 CT may not display accurately. T<G 0> : The factory default setting is “0”. (Adjustment range: +7 to – T<F 10K>: The factory default setting is “10K”. (Adjustment range: 10K/12.5K/ 15K/17.5K) 3-4. Press the [ ] button to return to the previous mode. CZ109E/CZ109ER/CZ109EG...
-
Page 8: Radio Operations
] button (2 sec.), 2 modes are available: Quick tuning and step or the auto store function will begin and the unit will begin storing stations. tuning. Quick tuning Press and hold [x] or [v] (1 sec.) to tune a station. CZ109E/CZ109ER/CZ109EG... -
Page 9: Rds Operations
The factory default setting is “OFF”. Notes: • This function is disabled when a national station such as BBC R2 is being received. • The REG function ON/OFF setting is valid when the AF function is ON. CZ109E/CZ109ER/CZ109EG... - Page 10 1. Press and hold the [DISP] button (1 sec.) to can be received, the unit returns to the PTY select mode. switch to the RDS adjustment selection display. 2. Press [x] or [v] to select “PTY”. 3. Turn the [ROTARY] knob to select “ON” or “OFF”. CZ109E/CZ109ER/CZ109EG...
-
Page 11: Cd/Mp3/Wma Operations
When the TA, Alarm or PTY interrupt ends, the volume returns to the previous level. However titles must be within 64 single byte alphabetical letters and numbers (including extension). 3. Do not affix a name to a file inside a folder with the same name. CZ109E/CZ109ER/CZ109EG... -
Page 12: Displaying Cd Titles
1. Press and hold the [x] button (1 sec.). “PAUSE” appears in the display. For MP3/WMA discs, some time is required until 2. To resume CD play, press the [ ] button to initiate movement between tracks. Also, some again. error may occur in the playing time. CZ109E/CZ109ER/CZ109EG... -
Page 13: Operations Common To Each Mode
The factory default setting is “ON”. If the error display “– –:– –” appears, these 2-1. Select “SCRN SVR”. modes (Scan/Repeat/Random) can be canceled while still in play mode. 3-1. Turn the [ROTARY] knob to select “ON” or “OFF”. CZ109E/CZ109ER/CZ109EG... -
Page 14: Aux Function
The factory default setting is “MID”. 1. Press and hold the [DISP] button (1 sec.). 2. Select “AUX SENS”. 3. Turn the [ROTARY] knob to select “HIGH”, “MID” or “LOW”. Note: • When AUX mode is selected, AUX IN sensitivity can be set. CZ109E/CZ109ER/CZ109EG... -
Page 15: Troubleshooting
Let dry for about 1 hour with power on. when power is the internal lens when the car first turned on. is parked in a humid place. Wrong file name File system is not correct. Use ISO9660 level 1, 2 or JOLIET or Romeo file system. CZ109E/CZ109ER/CZ109EG... -
Page 16: Error Displays
Signal to Noise Ratio: 90 dB (1 kHz) Main unit: Dynamic Range: 85 dB (1 kHz) 178 (W) 50 (H) 155 (D) mm Distortion: 0.01% Note: • Specifications and design are subject to change without notice for further improvement. CZ109E/CZ109ER/CZ109EG... - Page 17 (name and signature or equivalent marking of authorized person) D.F.DQC08A134 RefNo 08ROC002C3 Clarion Co., Ltd. All Rights Reserved. Copyright © 2008: Clarion Co., Ltd. PE-3160E Printed in China / Imprimé en Chine / Gedruckt in China / Stampato in Cina...
