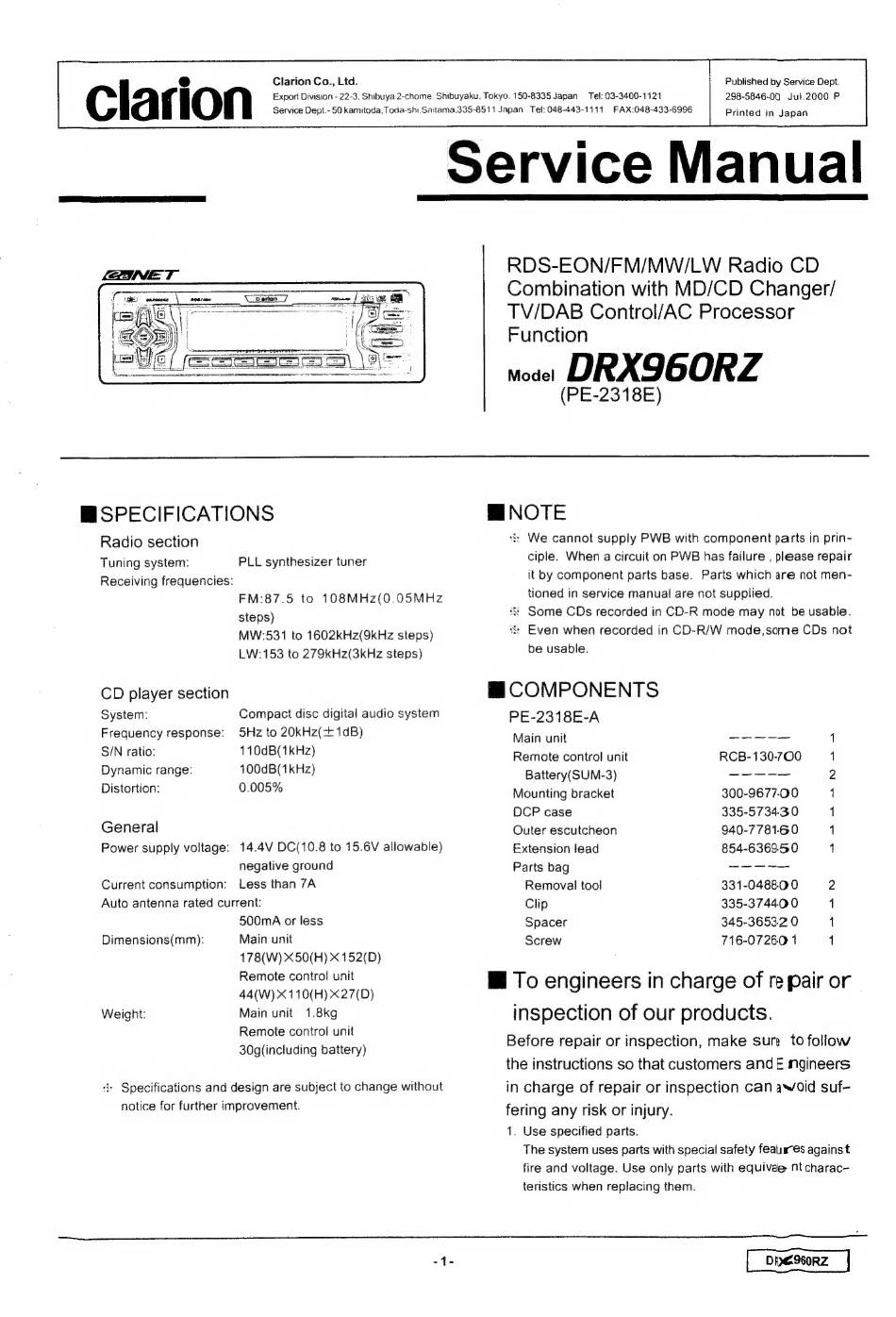

Clarion DRX960RZ Service Manual

Clarion Co., Ltd. Published by Service Dept.
@
Export Division - 22-3, Shibuya 2-chome. Shibuyaku, Tokyo. 150-8335 Japan Tel: 03-3400-1121 298-5846-00 Jul.2000 P
Service Dept.- 50 kamitoda. Toda-shi. Sartama.335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996 Printed in Japan
S I M |
RDS-EON/FM/MW/LW Radio CD
Combination with MD/CD Changer/
TV/DAB Control/AC Processor
Function
Model DRX960RZ
(PE-2318E)
MSPECIFICATIONS MNOTE
Radio section "i: We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure , please repair
Tuning system: PLL synthesizer tuner
it by component parts base. Parts which are not men-
Receiving frequencies:
FM:87.5 to 108MHz(0.05MHz tioned in service manual are not supplied.
steps) #% Some CDs recorded in CD-R mode may not be usable.
MW:531 to 1602kHz(9kHz steps) "+ Even when recorded in CD-R/W mode,some CDs not
LW:153 to 279kHz(3kHz steps) be usable.
CD player section M@ COMPONENTS
System: Compact disc digital audio system PE-2318E-A
Frequency response: 5Hz to 20kHz(+1dB) Main unit Ee Reon 1
SIN ratio: 110dB(1kHz) Remote control unit RCB-130-700 1
Dynamic range: 100dB(1kHz) Battery(SUM-3) pate pertem 2
Distortion: 0.005% Mounting bracket 300-9677.00 1
DCP case 335-5734.30 1
General Outer escutcheon 940-7781-60 1
Power supply voltage: 14.4V DC(10.8 to 15.6V allowable) Extension lead 854-6369.50 4
negative ground Parts bag i Se
Current consumption: Less than 7A Removal tool 331-0488.0 0 2
Auto antenna rated current: Clip 335-374400 1
500mA or less Spacer 345-36532 0 1
Dimensions(mm): Main unit Screw 716-07260 1 1
178(W) X50(H) x 152(D)
pines taag li To engineers in charge of re pair or
44(W) X110(H) X27(D)
Weight: Main unit 1.8kg inspection of our products.
Remote control unit
30g(including battery) Before repair or inspection, make sure to follow
the instructions so that customers andE ngineers
: Specifications and design are subject to change without in charge of repair or inspection can awoid suf-
notice for further improvement. fering any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivae nt charac-
teristics when replacing them.
