EMC VNX Series Installation And Operation Manual page 7

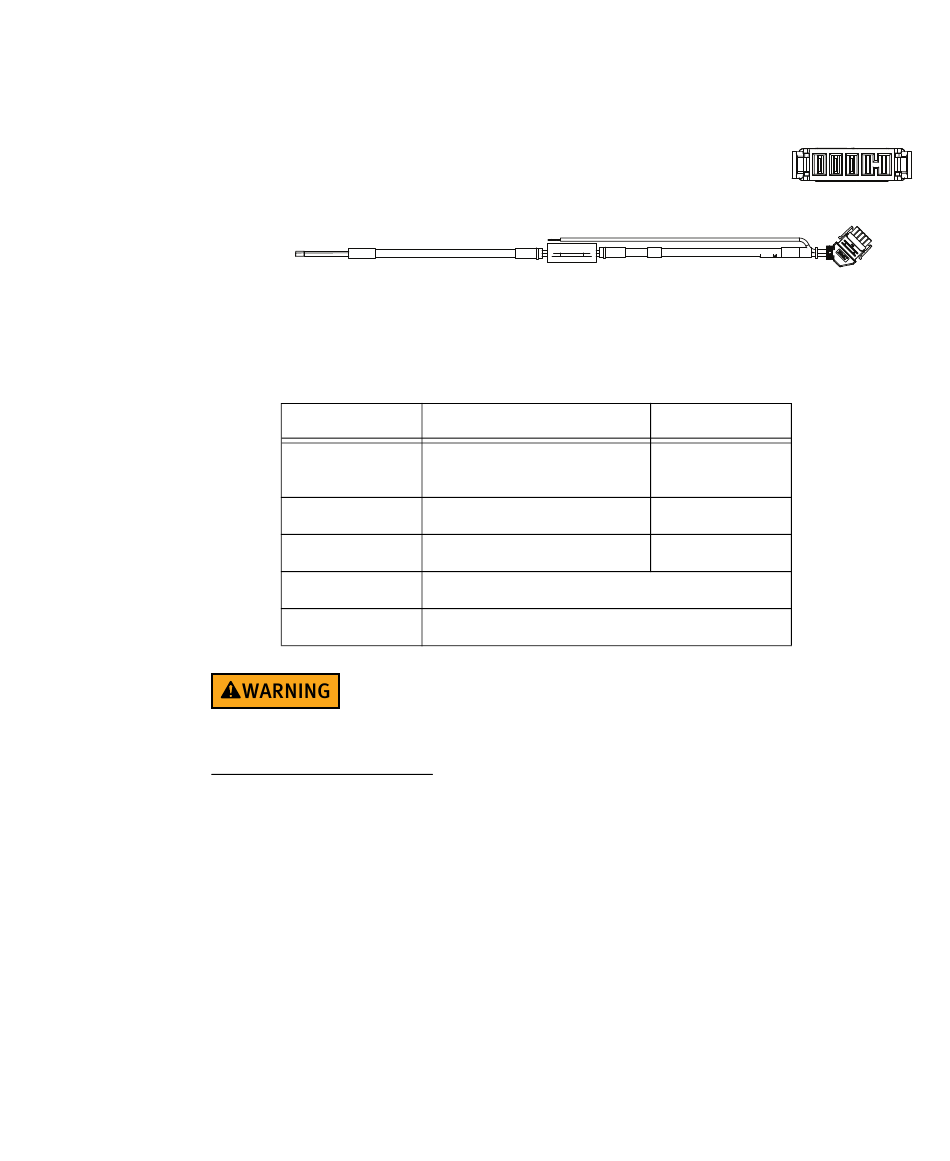

Figure 2 shows the power cord provided by EMC for DC-powered data mover (blade)
enclosures. Table 6 describes the pin outs.
Figure 2 Data Mover power cord
Table 6 Cabling pinout (Molex)
P1 designation
1
2
3
4
5
The data mover power cord is not repairable, and the integrated fuse is not
replacable. Should any cord component fail, you must replace the entire power cord.
DC-Powered VNX™ Series Enclosures Installation and Operation Guide
Description
DC negative (-)-48 V fused
line
DC positive (+)
Chassis ground
—
—
Power considerations
5
Wire color
Brown
Black
Green/Yellow
1
