Installing a DC-AC inverter
7. When each assembly is fully seated into the rear bracket/notch and flush with the

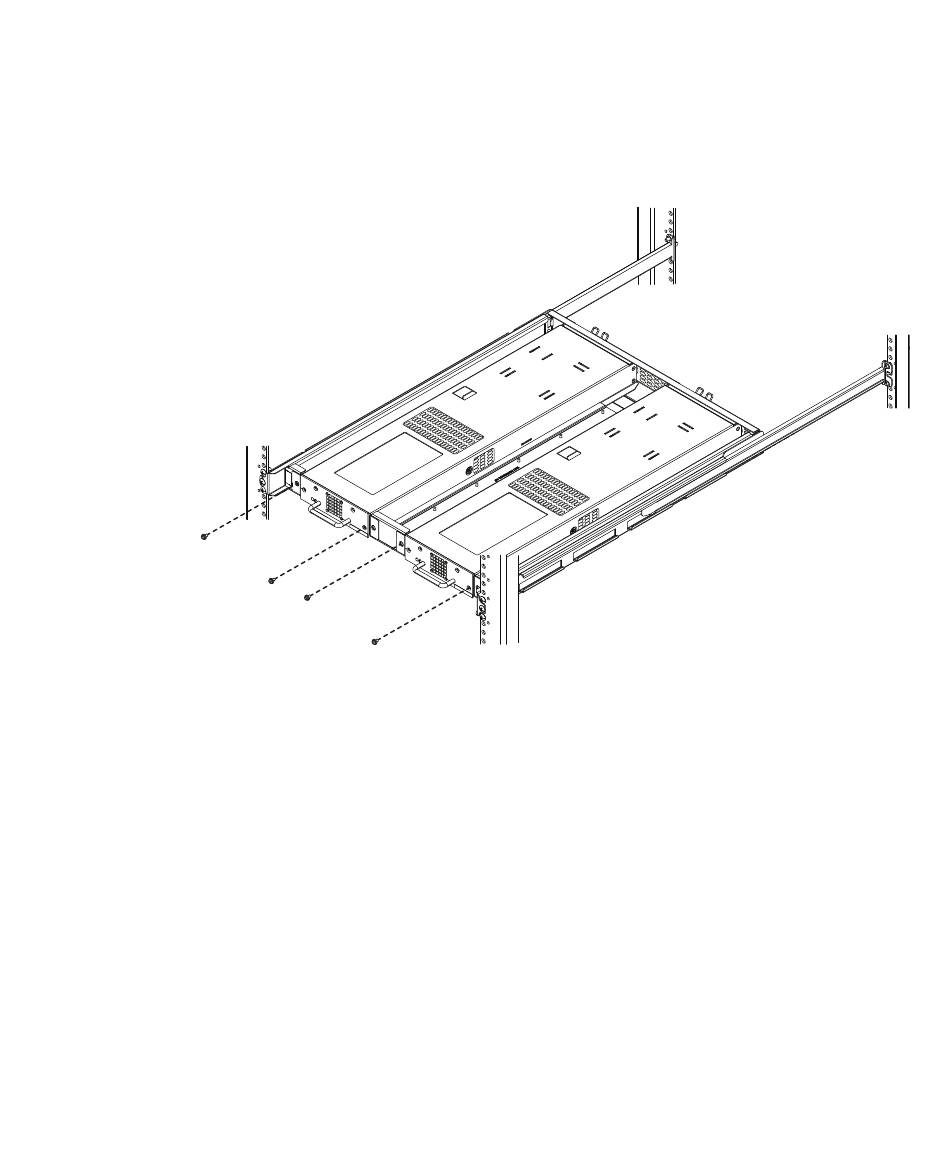

Figure 12 Securing inverters to the mounting tray
16
DC-Powered VNX™ Series Enclosures Installation and Operation Guide
mounting tray front, secure the inverter unit(s) to the tray by tightening the screws
as shown in
Figure
12.
CL5397
