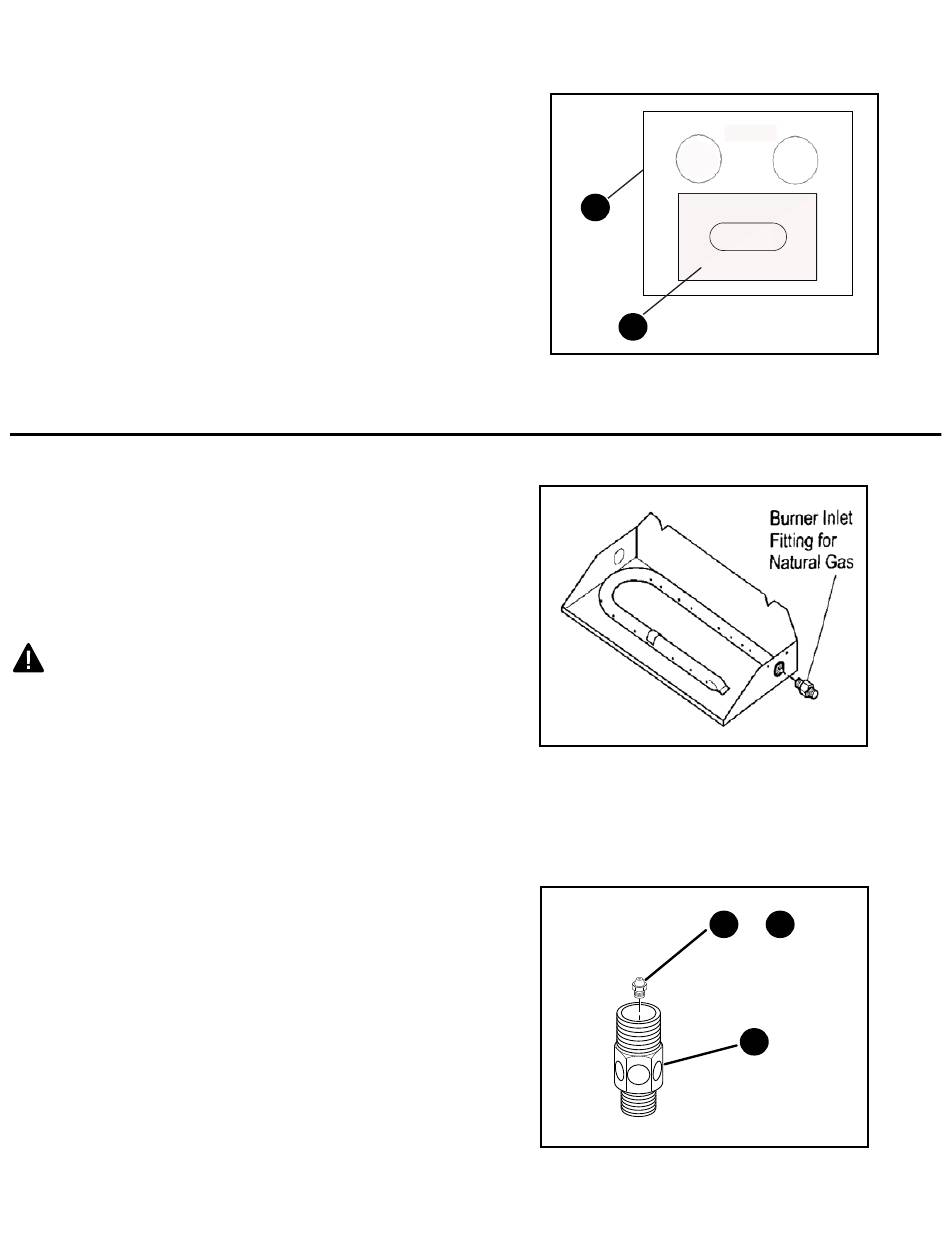

7. When installing this kit on the left hand side of
the burner, adhere control instruction label (N)
onto valve cover (L) as shown in Fig. 7.
PROPANE/LP GAS INSTALLATION
1. Remove the natural gas burner inlet fitting
from the burner pan assembly as shown in
Fig. 1. DO NOT remove the orifice from this
fitting.
If you have a 24 in. log set, then the
24 in. propane/LP orifice (H), shown in the table
below, is already installed in the propane/LP
burner air mixer (A). Proceed to step 3.
2. The propane/LP burner air mixer (A)
included in this kit has 6 holes and must be
used to replace the natural gas inlet
fitting. Be sure to use the correct
propane/LP orifice for your appliance. This
kit contains additional orifices (G or I) as
shown in Fig. 2.
L
N
6
Fig. 7
OFF
Fig. 1
Fig. 2
G I
or
A
