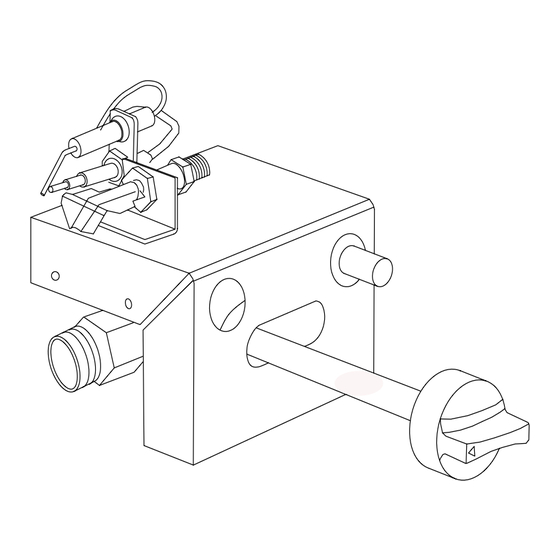

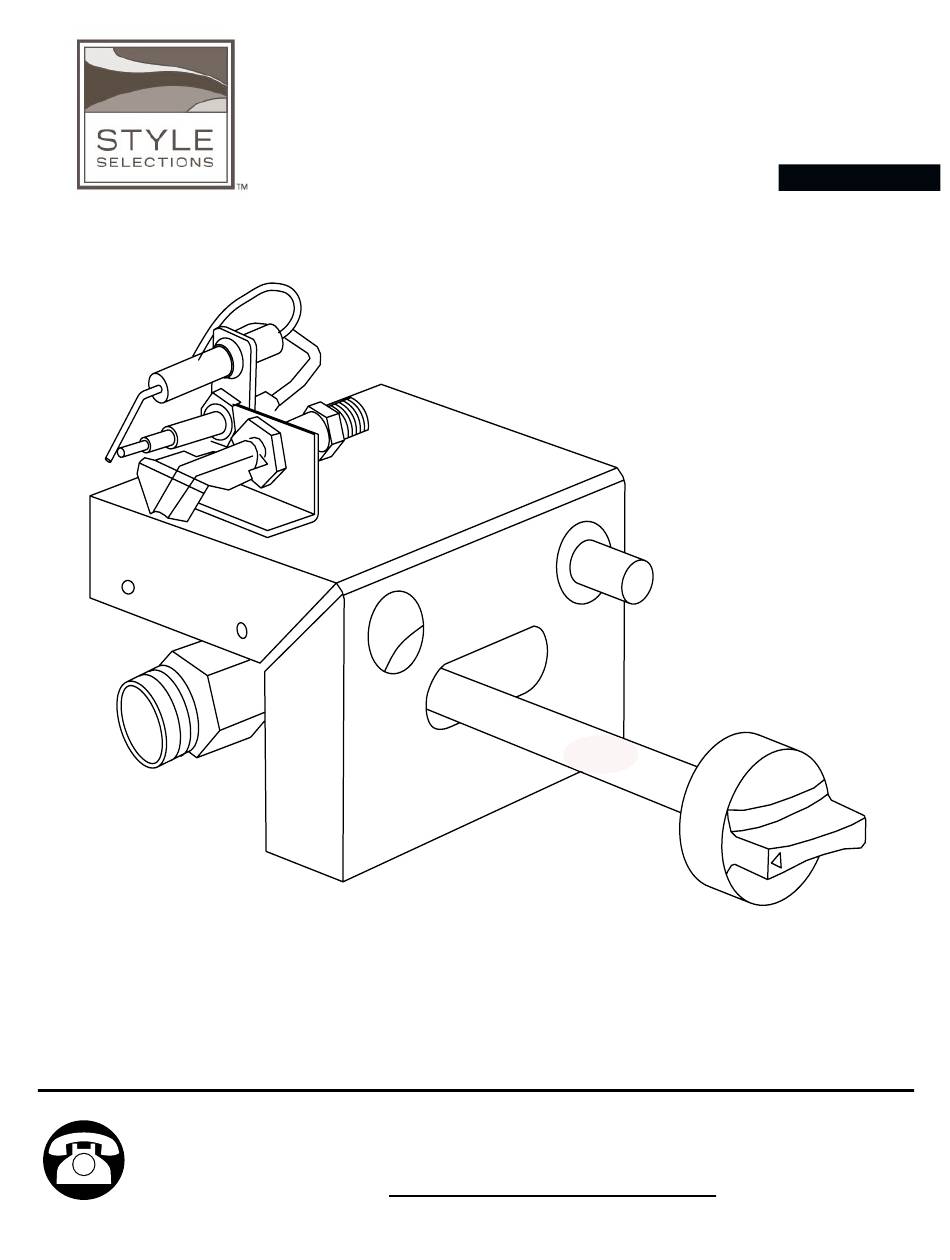

- Page 1 ITEM #0011258 MANUAL ON/OFF VALVE SAFETY PILOT KIT MODEL # NVDWA1 Español p. 11 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST, Monday - Friday or e-mail customerservice@usaprocom.com.
-
Page 2: Package Contents
PACKAGE CONTENTS Part Description Quantity Propane/LP Burner Air Mixer Gas Control Valve Safety Pilot Pilot Gas Pipe Assembly Control Knob Control Rod Extension 18 in. Propane/LP Orifice 24 in. Propane/LP Orifice 30 in. Propane/LP Orifice Propane/LP Pilot Injector Self Tapping Screws Valve Cover Piezo Ignitor Control Instructions Label... -
Page 3: Warnings And Cautions
WARNINGS AND CAUTIONS WARNING • If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. • Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. -
Page 4: Natural Gas Installation
NATURAL GAS INSTALLATION 1. Thread the gas control valve (B) onto the Fig. 1 burner air mixer (A). Use pipe sealant on the male threads of the burner air mixer. Hold the burner air mixer with a wrench to prevent overtightening the connection to the burner. - Page 5 Fig. 4 4. Install valve cover (L) to burner pan using two self tapping screws (K) as shown in Fig. 4. 5. Install safety pilot (C) and piezo ignitor (M) Fig. 5 onto valve cover (L) as shown in Fig. 5. Use two self tapping screws (K).
- Page 6 7. When installing this kit on the left hand side of Fig. 7 the burner, adhere control instruction label (N) onto valve cover (L) as shown in Fig. 7. PROPANE/LP GAS INSTALLATION Fig. 1 1. Remove the natural gas burner inlet fitting from the burner pan assembly as shown in Fig.
- Page 7 The number stamped on orifices correspond to each respective size log set as indicated by model numbers as shown in table below. Model # Orifice Orifice # SSEAV18RP SSEAV24RP SSWV24RP SSWV30RP For an 18 in. or 30 in. log set, use a 10 mm socket or nut driver to remove the orifice from the propane/LP burner air mixer (A).
-
Page 8: Replacement Parts
REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Call Customer Service toll free at (1-866-573-0674) for referral information. When calling Customer Service, have ready: • Your name •... -
Page 9: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST, Monday - Friday or e-mail customerservice@usaprocom.com. Part. Description Part # Propane/LP Burner Air Mixer WAL06-02 Gas Control Valve NV2050 Safety Pilot NDW-N600x4 Pilot Gas Pipe Assembly WAB09... -
Page 10: Year Limited Warranty
2-YEAR LIMITED WARRANTY The manufacturer warrants this product to be free from defects in workmanship and material present at time of shipment from the factory for two (2) years from the date of purchase. This warranty applies only to the original purchaser. The manufacturer agrees to correct such de- fect at no charge or, at our option, replace the product with a comparable or superior model.
