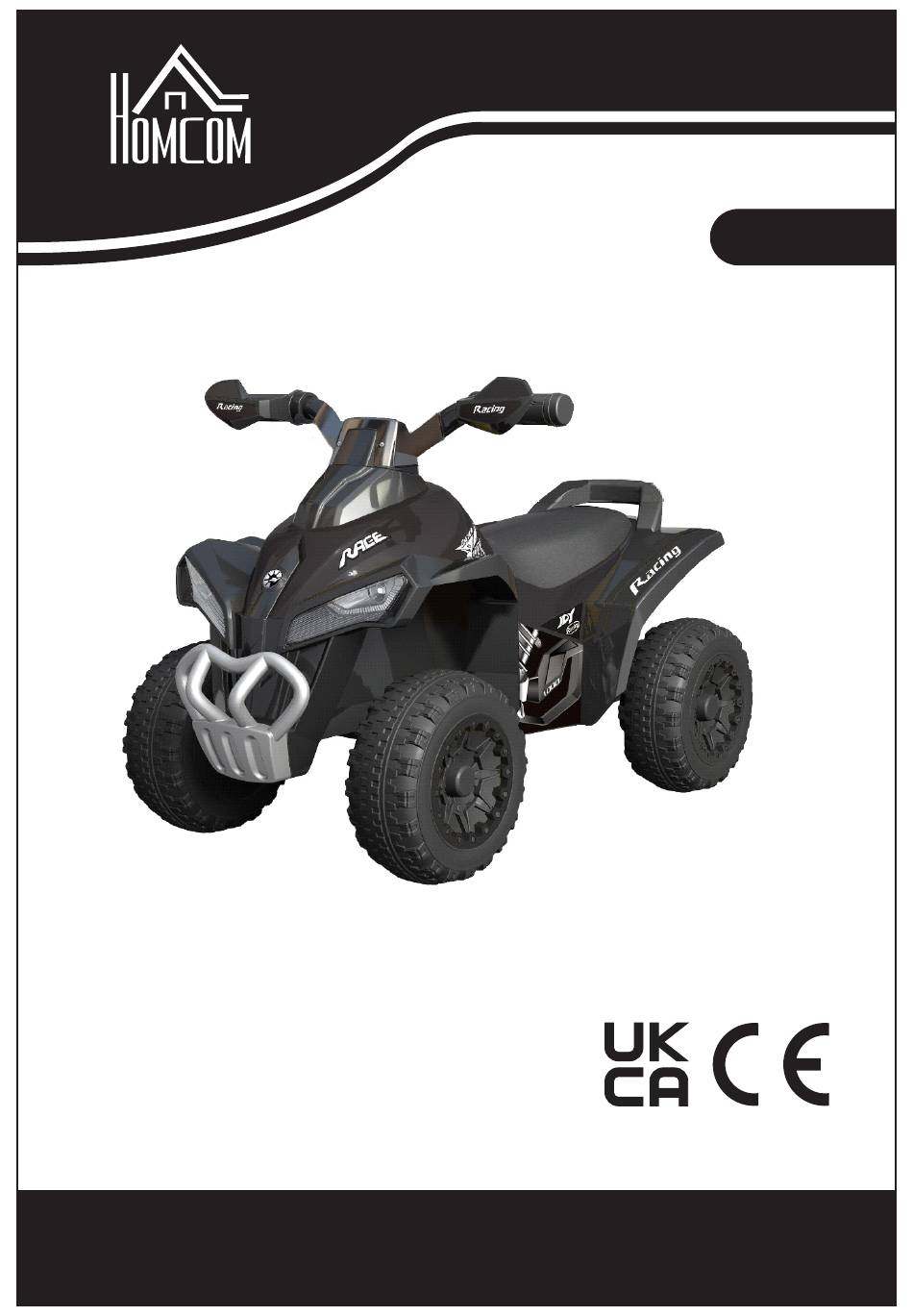

- Page 1 IN221000270V01_UK 370-096 1.Suitable age for 18-36 Months. 2.Maximum user weight: 20KGS. 3.Adult assembly required. IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
- Page 2 Specification Specifications ltem 20KGS Maximum weight 67x40.5x46CM Size Children at 18-36 months Available ages WARNING: (1) This kind of product is fit for the children aged 18-36 month old and maximum load under 20kg maximum load under 20kg. (2) WARNING-Never leave the child unattended. (3) Prevent access to stairs, steps and uneven surface.
- Page 3 PART 5.A rear axle & 1.body Axle sleeve*2 6. Steering shaft 2.handlebar M4*10 3.Bumper 4. wheel*4 Note: All screws, nuts and small plastic parts are pre-installed in the corresponding position, please follow the steps to remove before you install the product.
- Page 4 INSTALLATION STEPS Step 1 Install the rear wheel As shown in the arrow, insert the shaft frame into the car body, pass the axle sleeve, gasket, rear wheel, gasket and nut (as shown in Figure 1) through the axle, and tighten the nut clockwise (as shown in Figure 2). wheel A rear axle Gasket...
- Page 5 Step 3 Install front wheel Gasket Gasket Gasket Gasket As shown by the arrow, pass the gasket, wheel, gasket and nut through the front axle and tighten the nut clockwise Step 4 Install the Steering shaft Turn the car upside down and insert the steering shaft Step 5 Install the Steering shaft Insert the handlebar into the steering shaft, insert the gasket,...
- Page 6 Step 6 Install the battery Loosen the 4x10 mounting screws and open the seat cushion to see the battery box. Add the dry battery and you can use the music function. box and take off the cover; Use three AAA 1.5V cells, please install the batteries properly.
