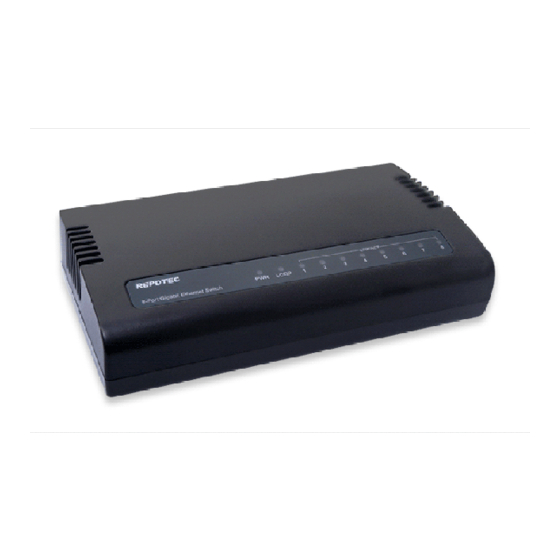

- Page 1 RP-G108Q 8-Port Gigabit Switch Quick Installation Guide V1.0...
-
Page 2: Before You Start
Before You Start Package Contents RP-G108Q Quick Installation Guide AC Power Adapter (5 VDC, 1 A) Installation Requirements A computer with a network adapter installed Cat-5e or Cat-6 Network Cable The surface must support at least 1,5 Kg for the Switch. -
Page 3: Hardware Installation
Hardware Installation 3. Connect the AC Power Adapter to the RP-G108Q and then to a power outlet. 4. Connect a CAT-5e or CAT-6 RJ-45 network cable from the computer to RP-G108Q. Notice The cable distance between 16/24 port Switch and other IEEE802.3 compatible network device should not exceed 100 meter. -
Page 4: Technical Specifications
Technical Specifications IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX Standards IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control Ethernet: Cat. 3,4,5, up to 100m Cables Fast Ethernet: Cat. 5, up to 100m Gigabit Ethernet: Cat. 5, 5e,6, up to 100m Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex) Data Transfer Rate Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex) -
Page 5: Guia De Instalação Rápida
RP-G108Q 8-Port Gigabit Switch Guia de Instalação Rápida V1.0 P/N:41AR-G108Q000-A00... -
Page 6: Antes De Iniciar
Antes de Iniciar Conteúdo da Embalagem RP-G108Q Guia de Instalação Rápida Adaptador Externo de Tensão (5 VDC, 1 A) Requisitos Mínimos Computador com adaptador de rede instalado Cabo de rede Cat-5e ou Cat-6 Superfície deve suportar no mínimo 1,5 Kg A tomada elétrica deve estar a no máximo 1,82 metros (6 feet) do Switch. -
Page 7: Instalação Do Hardware
Instalação do Hardware 2. Conecte o Cabo de Alimentação ao RP-G108Q e então a uma tomada elétrica. 1. Conecte o Cabo de Alimentação ao RP-G108Q e então a uma tomada elétrica. Aviso The cable distance between the Switch and other IEEE802.3 compatible network device should not exceed 100 meter. -
Page 8: Especificações Técnicas
Especificações Técnicas IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX Standards IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control Ethernet: Cat. 3,4,5, up to 100m Cabos Fast Ethernet: Cat. 5, up to 100m Gigabit Ethernet: Cat. 5, 5e,6, up to 100m Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex) Taxa de Transferência de Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex) Dados...
