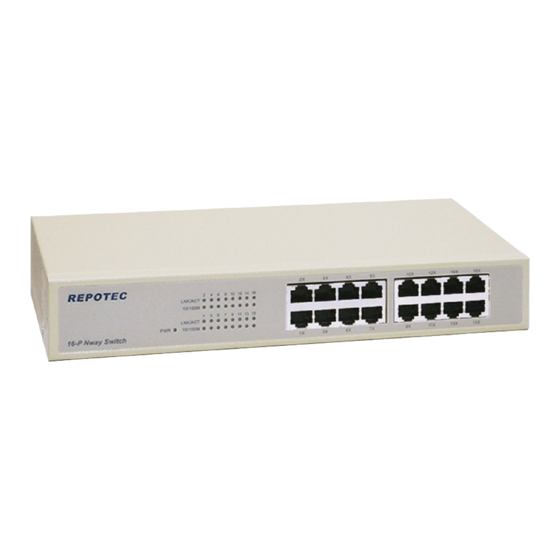

- Page 1 16/24 Port Nway switch User’s manual...
- Page 2 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 3 Introduction The 16/24 port Ethernet Switch are designed to allow simultaneous transmission of multiple packets via an internal high-speed data channel .This means that it can partition a network more efficiently than bridges or routers in most environments .This 16/24 port Ethernet Switch is a highly reliable network Switch and is the ideal device for bridging Ethernet to Fast Ethernet workgroups or networks .Simple and cost-effective, the 16/24 port Switch Ethernet supports IEEE802.3 10Base-T Ethernet and IEEE802.3u 100Base-TX Fast...
- Page 4 100Base-TX - UTP/STP category 5 cable — 10Base-T - UTP/STP category 3 or 5 cable — Connector: STP RJ-45 port for 10/100Mbps TX — LED indicators: — System - Power LED. — Individual port - link/activity and speed LEDs — Dimension: 440mm(L) x 200mm(W) x 44mm(H) —...
- Page 5 LED indicators LED Function Color Description Green Lit: Power on LNK/ACT Green Lit: Indicates the adapter is connected to Switch Flash: indicates data in or out the port 10/100 Green Lit: 100Mbps Unlit: 10Mbps Rear Panel The rear panel of the 16/24-port Ethernet Switch indicates a AC inlet, which accepts 100-240VAC 50-60Hz power input.
- Page 6 Hardware Troubleshooting This chapter contains information to help you solve problems. If the 16/24 port Switch is not functioning properly, make sure the 16/24 port Switch was set up according to instructions in this manual. The Power LED is not lit Solution: Check if the AC power cord is well connected.
