User manual

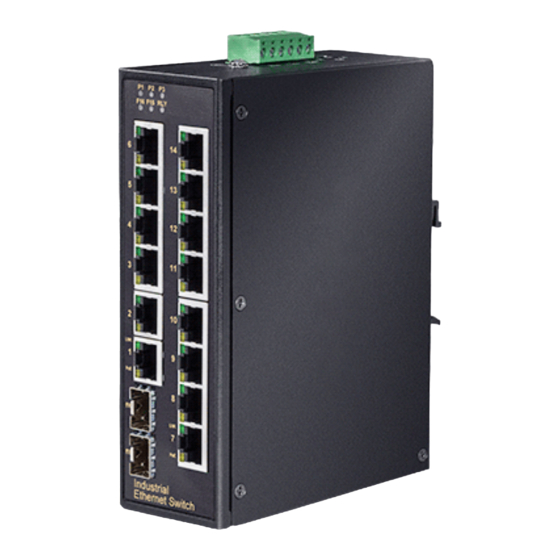

Hardened Industrial 16 port Gigabit PoE Switch, 14 x 10/100/1000M TX 30W PSE + 2 x 1000M SFP,
48-56VDC input voltage, operating temp.: -40°C to +75°C
FCC MARKING
This Equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received; including interference that may
cause undesired operation.
CE MARKING
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55032/35 class A for ITE, the essential protection requirement of
Council Directive 2014/30/EU on the approximation of the laws of the Member States
relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible
that information in this document is not up-to-date. Please check with your local
distributors for the latest information. No part of this document can be copied or
reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2022, All Rights Reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP-IPG814-2F and is the answer not in the manual?

Questions and answers

Summary of Contents for Repotec RP-IPG814-2F

  • Page 1 User manual Hardened Industrial 16 port Gigabit PoE Switch, 14 x 10/100/1000M TX 30W PSE + 2 x 1000M SFP, 48-56VDC input voltage, operating temp.: -40°C to +75°C FCC MARKING This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 2 Introduction: This Industrial PoE switch is designed with Hardened Ethernet and PoE controllers to ensure performance in harsh environment. It is equipped with 14 ports 30Watts Giga TX PSE and can deliver up to 300Watts of power to your PD devices. All 16 ports are independent and can all be used for easy expansion of your network application.
  • Page 3: Installation Package

    Installation package: This unit can be wall mounted or din-rail mounted. Wall mount brackets and din-rail bracket are included. Power connection This unit provides a 6 pin terminal block. PoE functions can be operated from 48-56VDC power input. Always make sure your input voltage is within this supported voltage range for each model.
  • Page 4 Power connecting procedure: STEP 1 – Pull out 6 pin terminal block. STEP 2 – Connect wire to P1+, P1-, P2+, P2-, and the neutral wire to the ground screw. STEP 3– Plug connected 6 pin terminal block back into place. Or, Connect the P3 power DIN from external power adapter.
  • Page 5: Led Indicator

    LED indicator RLY(Amber) ON – Only PW1 or PW2 is connected OFF-both PW1 and PW2 are connected P1(Green) F15, F16 (Green) LNK (Green) PoE (Amber) ON -- P1+, P1- is ON – F15 or F16 SFP ON—TX port is ON – PD is connected fiber is detected detected...
  • Page 6: Specification

    Specification IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE Standard IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af PoE IEEE 802.3at PoE+ Switch Architecture Back-plane (Switching Fabric): 32Gbps Data Processing Store and Forward Flow Control...
  • Page 7 Power Supply Redundant Dual DC 48V-56V Power Input Power Consumption 5.76W@48 VDC full load, Without PoE Relay outputs with current carrying capacity of 1 A @24VDC, Alarm Relay Contact Relay in open circuit mode when 2 powers are connected. in short circuit mode when only one power supply is connected PoE power per port 30watts.
