Repotec RP-G0401DC User Manual

Brief introduction

I.
Many thanks for purchasing Gigabit Ethernet Switch!
This product supports IEEE802.3ab 1000Base-T and
IEEE802.3z 1000Base-X protocols. This manual
matches the 5-port 10/100/1000Mbps Ethernet switch
with 1-port 1000Base-X features. The following
product select guide is for your reference.

Packing list

II.
Please check the following items in the package before
installing the switch.
Gigabit Ethernet Switch 1 piece
AC/DC adapter 1 piece
User manual 1 copy
Please contact the dealer immediately for any missing
or damaged items.
III.

Installation

1. Interface
All RJ-45 copper interfaces support Auto-Negotiation
for optimal speed detection through RJ-45 CAT5e UTP
cables with a maximum length of 100 meters (or 328
feet). They also support standard Auto-MDI/MDI-X
that can detect the type of connection to any Ethernet
device without requiring special straight or crossover
cables.
2. Connection
Connect one end of the standard UTP CAT5 network cable
to the 10/100/1000Mbps RJ-45 ports on the front panel of
the switch. Connect the other of the cable to the typical
network devices.
3. Power on
Connect one end of the power adapter to the switch. Connect
the power plug of the adapter to a standard wall outlet. When
the switch is powered on, the PWR LED should be remain
static green. The LED of each port indicates the connection
status of corresponding port. (See Table.1 for detailed
description)

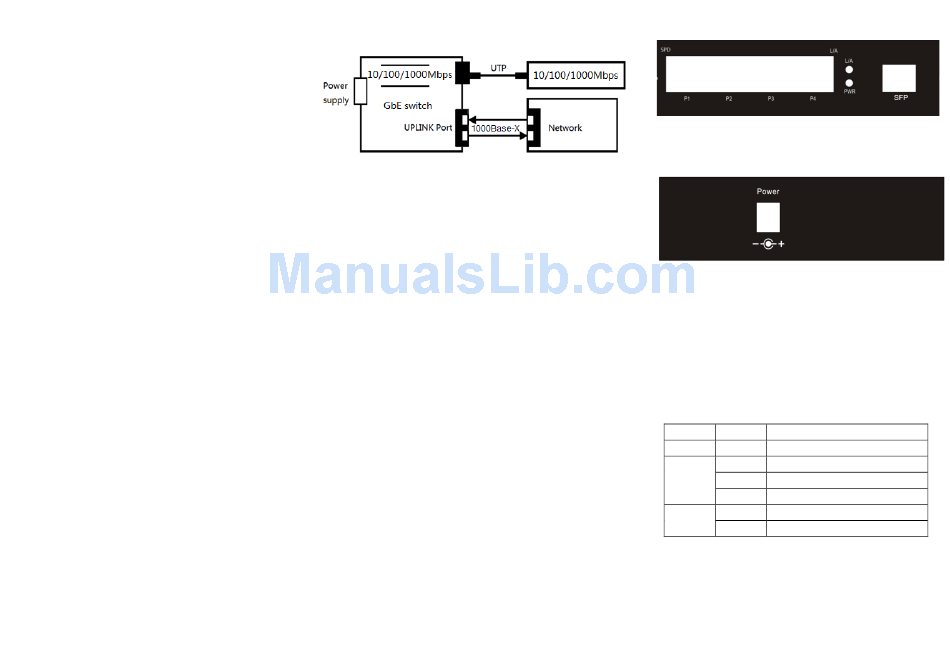

4. Panel
All link ports and LED indicators are located on the front
panel, leaving only Power port on the back panel. The panels
as follows pictures:
Front panel
Back Panel
5. LED indicator
The LED indicators serve as device monitoring and
error display. Detailed descriptions are summarized in
the following table.
LED Status Description
Device active
PWR Green
Link to port
Green
Link failure
L/A OFF
Data transfer to port
Blink
Transfer rate is 1000Mbps
Amber
SPD
Transfer rate is 10/100Mbps
OFF
