Repotec RP-G1416D Manual
Hide thumbs Also See for RP-G1416D:

Advertisement

Quick Links

FCC Certifications
This Equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual,
may
cause
harmful
interference
to
radio
communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to the
EMC Directive 2004/108/EC, the Low Voltage Directive
2006/95/EC, and the RoHS Directive 2011/65/EU.
Company has an on-going policy of upgrading its products
and it may be possible that information in this document is not
up-to-date. Please check with your local distributors for the
latest information. No part of this document can be copied or
reproduced in any form without written consent from the
company.
Trademarks:
All trade names and trademarks are the properties of their
respective companies.
Copyright © 2013, All Rights Reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP-G1416D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Repotec RP-G1416D

  • Page 1 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2: Unpacking Information

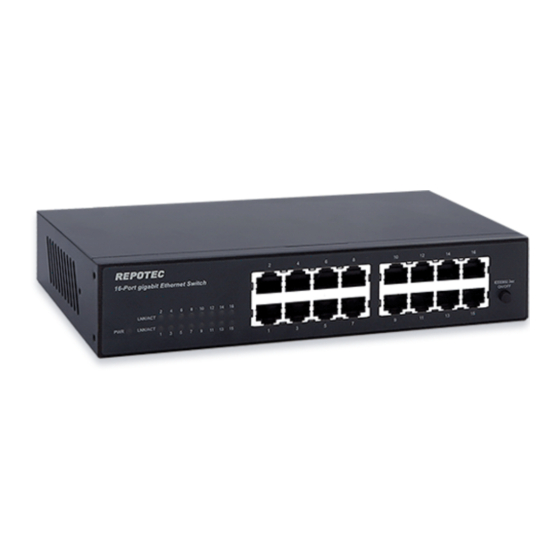

    Introduction General Description Easily boost your networking throughput, the rack-mountable switch provides you 16/24* 10/100/1000Mbps Gigabit ports that lead you to a real Gigabit connection. Users are now able to transfer large and high bandwidth-needed files faster and hence get a real efficiency improvement. The switch offers users with fast and reliable network.
  • Page 3: Key Feature

    Key Feature  Complies with 10BASE-T specifications of the IEEE802.3 standard  Complies with 100BASE-TX specifications of the IEEE802.3u standard  Complies with 1000BASE-T specifications of the IEEE802.3ab standard  16/24 * 10/100/1000Mbps RJ-45 N-Way ports  Supports N-Way protocol for speed (10/100/1000Mbps) and duplex mode (Half/Full) auto-detection ...
  • Page 4: Front Panel

    Front Panel The front panel consists of LED indicators and the ports. For detailed LED definition, please refer to the next paragraph. The front panel of the switch is shown as below: 16 port Model 24 port Model LEDs Definition Both the 16/24 port switches contain one power LED for the device, Link/Act LEDs for each port that shows the activities and information of the ports.
  • Page 5: Rear Panel

    Rear Panel The power receptacle and power on/off switch is located on the rear panel of the switch: 16 port Model 24 port Model Power Receptacle To be compatible with the electric service standards around the world, the switch is designed to afford the power supply in the range from 100 to 240VAC, 50/60Hz.
  • Page 6: Installation

    Installation This switch can be placed on your desktop directly, or mounted on the wall. The installation is a snap. Users can use all the features of the switch with simply attaching the cables and turning the power on. Before installing the switch, we strongly recommend: The switch is placed with appropriate ventilation environment.
  • Page 7: Station Connection

    Station Connection Connect each station to the switch by twisted-pair cable. Plug one RJ-45 connector into a RJ-45 port of the switch, and plug the other RJ-45 connector into the station’s network adapter. Power on the switch and then system is ready. Switches Connection Network Cables Installation Crossover or straight-through cable: All the ports on...
  • Page 8: Product Specifications

    Product Specifications 802.3 Ethernet, 802.3u Fast Ethernet, 802.3ab Gigabit Ethernet , Standard 802.3x flow control for full duplex, 802.3az Energy Efficient Ethernet support , 802.1p CoS 16/24 * 10/100/1000Mbps auto Interface MDI/MDI-X RJ-45 switching ports RJ-45 (10BASE-T): Category 3,4,5 UTP/STP Cable RJ-45 (100BASE-TX): Category 5 Connections...
