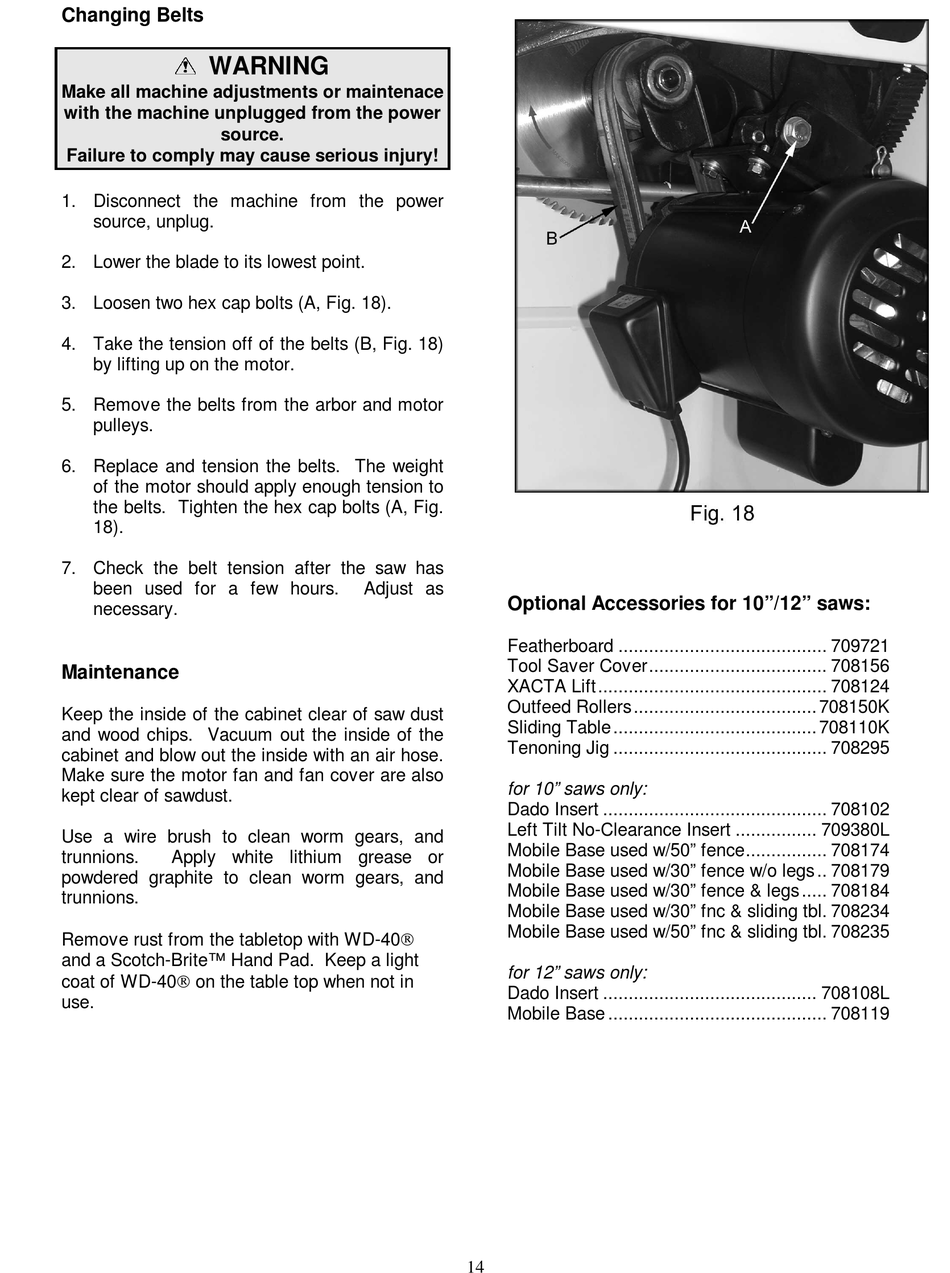

Changing Belts

WARNING

Make all machine adjustments or maintenace
with the machine unplugged from the power
source.
Failure to comply may cause serious injury!
1. Disconnect the machine from the power
source, unplug.
2. Lower the blade to its lowest point.
3. Loosen two hex cap bolts (A, Fig. 18).
4. Take the tension off of the belts (B, Fig. 18)
by lifting up on the motor.
5. Remove the belts from the arbor and motor
pulleys.
6. Replace and tension the belts. The weight
of the motor should apply enough tension to
the belts. Tighten the hex cap bolts (A, Fig.
18).
7. Check the belt tension after the saw has
been used for a few hours.
necessary.

Maintenance

Keep the inside of the cabinet clear of saw dust
and wood chips. Vacuum out the inside of the
cabinet and blow out the inside with an air hose.
Make sure the motor fan and fan cover are also
kept clear of sawdust.
Use a wire brush to clean worm gears, and
trunnions. Apply white lithium grease or
powdered graphite to clean worm gears, and
trunnions.
Remove rust from the tabletop with WD-40
and a Scotch-Brite™ Hand Pad. Keep a light
coat of WD-40 on the table top when not in
use.
Adjust as
Optional Accessories for 10"/12" saws:
Featherboard ......................................... 709721
Tool Saver Cover................................... 708156
XACTA Lift ............................................. 708124
Outfeed Rollers.................................... 708150K
Sliding Table ........................................ 708110K
Tenoning Jig .......................................... 708295
for 10" saws only:
Dado Insert ............................................ 708102
Left Tilt No-Clearance Insert ................ 709380L
Mobile Base used w/50" fence................ 708174
Mobile Base used w/30" fence w/o legs .. 708179
Mobile Base used w/30" fence & legs ..... 708184
Mobile Base used w/30" fnc & sliding tbl. 708234
Mobile Base used w/50" fnc & sliding tbl. 708235
for 12" saws only:
Dado Insert .......................................... 708108L
Mobile Base ........................................... 708119
