Operating Instructions and Parts Manual
3-Ton Short Chassis Service Jack
Model JSJ-3XA
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-454224
Ph.: 800-274-6848
Revision A 02/2012
www.waltermeier.com
Copyright © 2012 Walter Meier (Manufacturing) Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JSJ-3XA and is the answer not in the manual?

Questions and answers

Summary of Contents for Jet JSJ-3XA

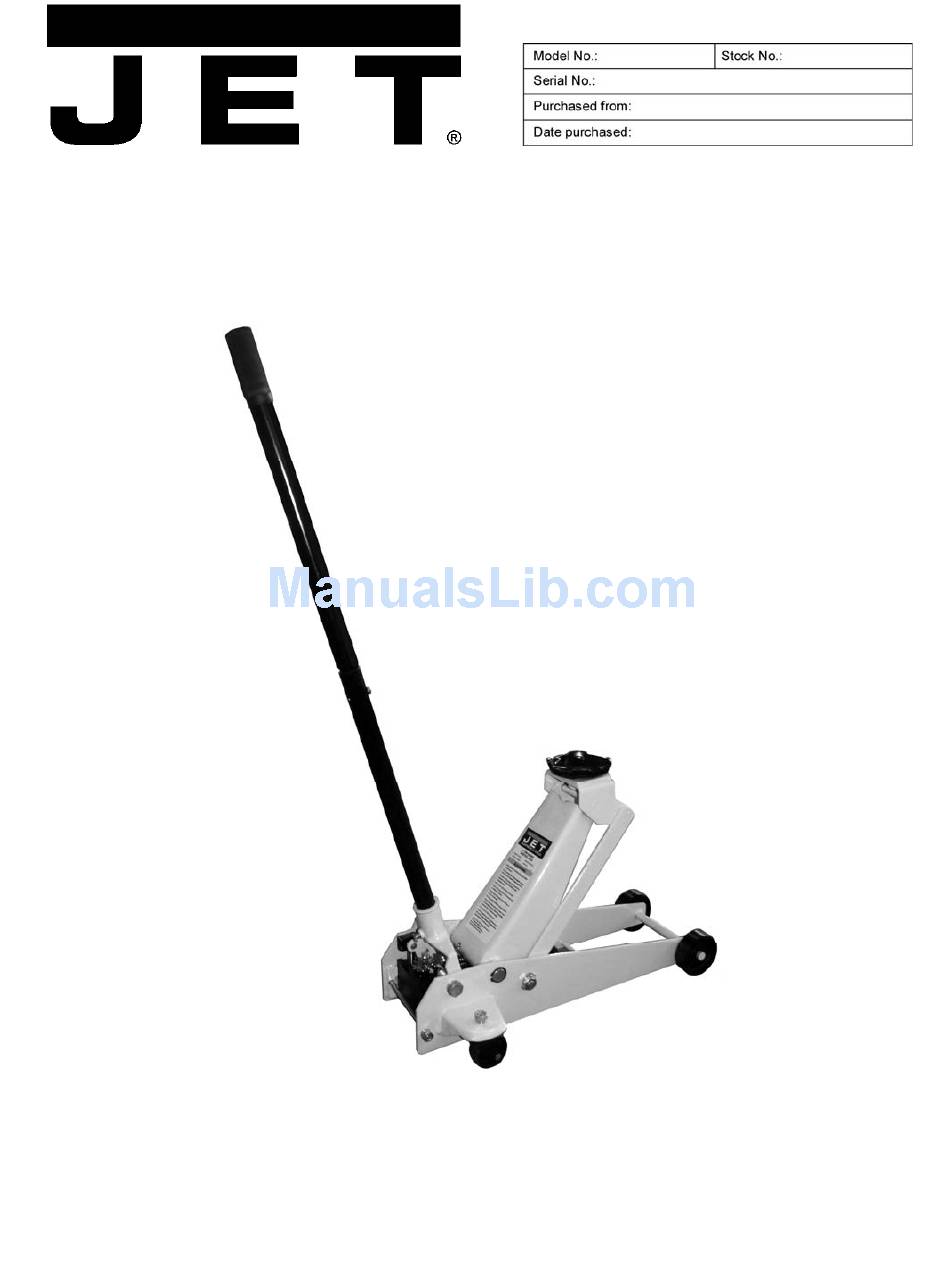

  • Page 1 Operating Instructions and Parts Manual 3-Ton Short Chassis Service Jack Model JSJ-3XA WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-454224 Ph.: 800-274-6848 Revision A 02/2012 www.waltermeier.com Copyright © 2012 Walter Meier (Manufacturing) Inc.
  • Page 2: Warranty And Service

    Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
  • Page 3: Table Of Contents

    8.1 Raising the jack ............................6 8.2 Lowering the jack ............................6 9.0 Maintenance ............................. 6 10.0 Troubleshooting the JSJ-3XA Service Jack ..................7 11.0 Replacement Parts ......................... 7 11.1.1 Main Body Assembly (3T Short Chassis Service Jack) – Exploded View ..........8 11.1.2 Main Body Assembly (3T Short Chassis Service Jack) –...
  • Page 4: Safety Warnings

    JET Authorized Service Center. 14. Jack service must be performed by qualified personnel only. Use only genuine JET factory replacement parts; use of unauthorized parts may cause risk of injury, and may void warranties.
  • Page 5: Specifications

    5.0 Specifications Model number ............................JSJ-3XA Stock number .............................. 454224 Rated Capacity ............................... 3 Ton Strokes to reach maximum height without load ..................... 2 to 3 Regulating pressure ..........................113 MPa Maximum Height – A ........................19.3” (490mm) Minimum Height – B ........................5-3/4” (145mm) Saddle Diameter –...
  • Page 6: Assembly

    8.0 Operating instructions 6.0 Assembly Important: During shipment and handling, air Numbers in parenthesis (#) refer to parts sometimes gets into the hydraulic system breakdown, page 6: causing poor lifting performance. Before initial operation, purge any air from system by fully 1.
  • Page 7: Troubleshooting The Jsj-3Xa Service Jack

    10.0 Troubleshooting the JSJ-3XA Service Jack Symptom Possible Cause Correction Jack fails to lift load, Release valve open. Close valve rotating handle or only partially lifts. clockwise. Weight capacity exceeded. Use other lifting equipment; load must not exceed rated capacity of jack.
  • Page 8: Main Body Assembly (3T Short Chassis Service Jack) - Exploded View

    11.1.1 Main Body Assembly (3T Short Chassis Service Jack) – Exploded View...
  • Page 9: Main Body Assembly (3T Short Chassis Service Jack) - Parts List

    11.1.2 Main Body Assembly (3T Short Chassis Service Jack) – Parts List Index No Part No Description Size 1 ....JSJ3XA-01 ....Front Caster ..................2 2 ....JSJ3XA-02 ....Washer...............18mm ......2 3 ....JSJ3XA-03 ....C-Clip ..............18mm ......2 4 ....JSJ3S-07 ....Swivel Caster Assembly ................ 2 5 ....
  • Page 10: Power Unit Assembly (3T Short Chassis Service Jack) - Exploded View

    11.2.1 Power Unit Assembly (3T Short Chassis Service Jack) – Exploded View...
  • Page 11: Power Unit Assembly (3T Short Chassis Service Jack) - Parts List

    11.2.2 Power Unit Assembly (3T Short Chassis Service Jack) – Parts List Index No Part No Description Size ....JSJ21/4XA-32 ..Power Unit Assembly (includes 32-1 thru 32-45) ........1 32-1 ..JSJ21/4XA-321 ..Cylinder Cover..................1 32-2 ..JSJ21/4XA-322 ..O-Ring * ....................1 32-3 ..
  • Page 12 TEST CERTIFICATE Commodity Short Service Jack Model JSJ-3XA Serial No. Capacity 3 ton Test Load Date of Inspection Judgment PASSED Inspector WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.waltermeier.com...
