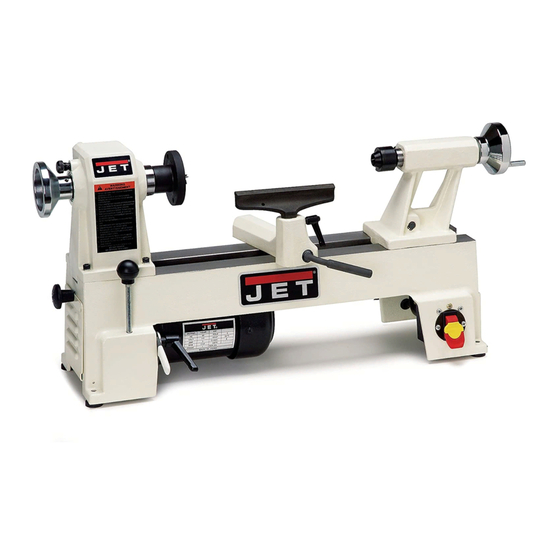

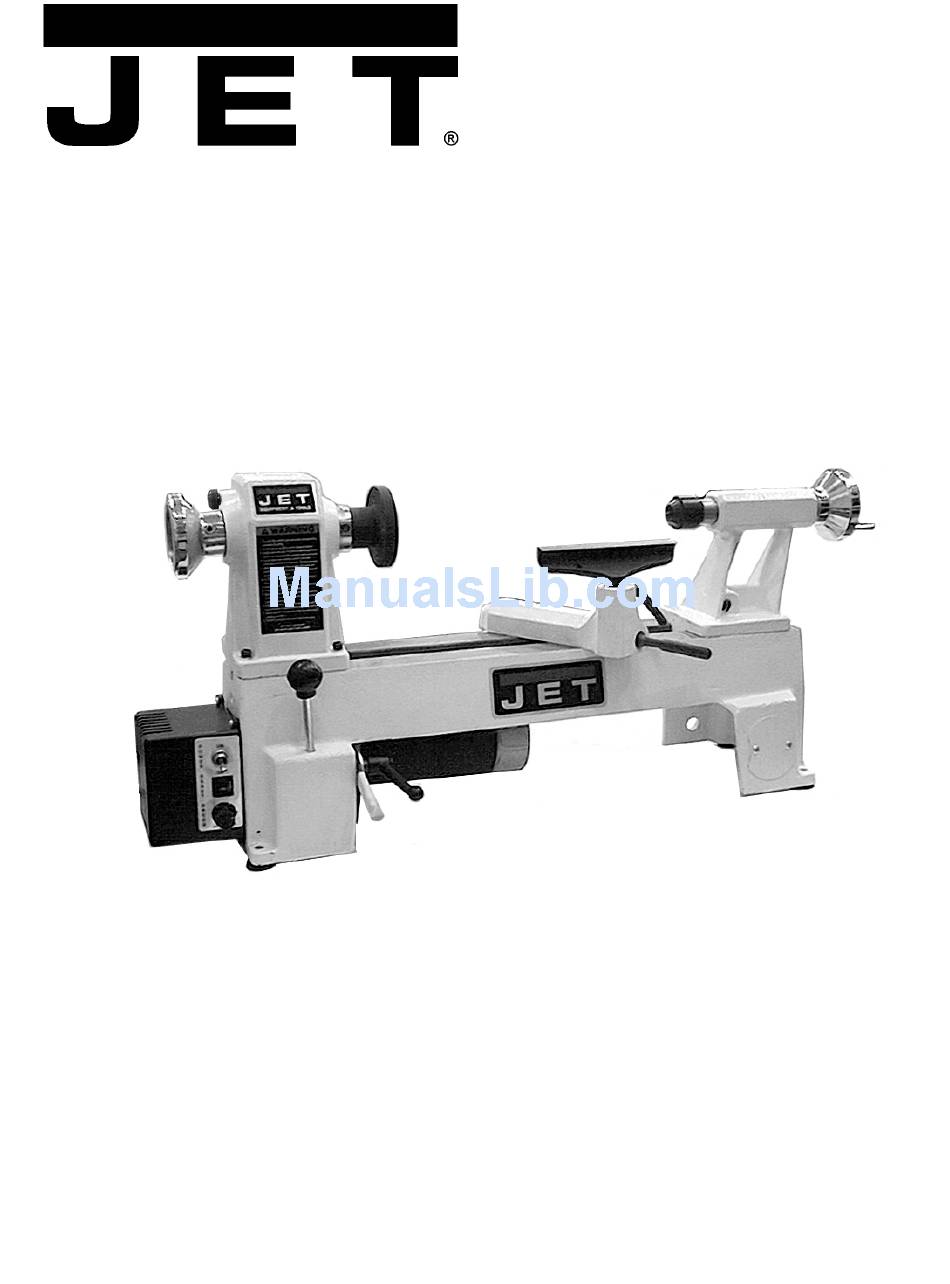

- Page 1 Operating Instructions and Parts Manual Variable Speed Mini Lathe Model JML-1014VSI and JWL-1220VS WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60124 Part No. M-708375VS Ph.: 800-274-6848 Revision A2 1/08 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty And Service
WMH Tool Group is consistently adding new products to the line. For complete, up-to-date product information, check with your local WMH Tool Group distributor, or visit jettools.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW = Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below. -
Page 3: Table Of Contents
Changing Spindle Speeds...13 Belt Replacement ...14 Removing and Installing Live Center...14 Indexer Operation...15 Parts Breakdown for JML-1014VSI...16 Parts List for JML-1014VSI ...17 Electrical Connections JML-1014VSI...19 Parts Breakdown for JWL-1220VS ...20 Parts List for JWL-1220VS ...21 Electrical Connection JWL-1220VS ...23 Warning For your own safety, read this instruction manual before operating the lathe. - Page 4 runs up to 100 feet, use a 14 AWG or larger gauge cord. For runs up to 150 feet, use a 12 AWG or larger gauge cord. Runs over 150 feet are not recommended. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
-
Page 5: Introduction
This manual is provided by WMH Tool Group covering the safe operation and maintenance procedures for a JET Model JML-1014VSI and JWL-1220VS lathe. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. This machine has been designed and constructed to provide years of trouble free operation if used in accordance with instructions set forth in this manual. -
Page 6: Electrical Requirements
Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 7: Receiving
Do not clean the lathe with anything other than a damp cloth or a mild solvent. Use of heavy solvents, paint thinner, gasoline, etc. will damage painted surfaces. Contents of the Shipping Carton: JML-1014VSI (708375VS) 1 – Lathe with motor and tailstock 1-Control Box (with 2 screws) 1 –... -
Page 8: Assembly
Assembly Mount the control box (shown in Figure 1) to the headstock side of the lathe, by inserting the two screws through the hinge plate and into the threaded holes in the lathe body. If desired, the lathe can be bolted to a work table or stand by removing the rubber feet and inserting screws through the holes in the base. -
Page 9: Operation
Operation Tailstock Handwheel (A, Figure 2) - Turn clockwise to move tailstock spindle forward. Turn counter- clockwise to retract tailstock spindle. Tailstock Spindle Lock (B, Figure 2) - Locks tailstock spindle. Release to adjust with handwheel. Tailstock Lock (C, Figure 2) - Locks tailstock in position on the bed. Release to move tailstock assembly closer to or farther from the headstock. - Page 10 Spur Center (Figure 4) - locks into headstock and holds the workpiece during spindle turning. Figure 4 Thoroughly clean the taper on the spur center and the inside of the headstock spindle before mounting the spur center. Failure to do so may result in separation of the two and possible injury or tool damage.
-
Page 11: Adjusting The Tool Rest
Tool Rest (Figure 8) - attaches to the bed. Used to steady cutting tool during spindle turning or face plate operations. Figure 8 Adjusting the Tool Rest Position the tool rest as close to the work piece as possible. It should be 1/8" above the centerline of the work piece. -
Page 12: Variable Speed Control
Variable Speed Control The variable speed control box contains the electrical connections to the motor, and has three external controls. Always set the speed control knob to its lowest setting before starting lathe. Never start a workpiece at maximum speed. Figure 9 Power Switch (A, Figure 9) –... -
Page 13: Changing Spindle Speeds
Figure 10 Changing Spindle Speeds The variable speeds of the lathe are controlled by the speed knob on the control box as well as the position of the belt on the pulleys. 1. Disconnect machine from the power source (unplug). 2. -
Page 14: Belt Replacement
Belt Replacement 1. Disconnect the machine from the power source (unplug). 2. Open the access doors at the left side of the base (Figure 10), and at the back side of the headstock (Figure 11). 3. Loosen the motor plate lock handle (A, Figure 12). Lift up on the motor plate handle (B, Figure 12) to take tension off the belt. -
Page 15: Indexer Operation
Indexer Operation The index feature allows you to cut evenly spaced features in a workpiece while keeping the Lathe headstock spindle locked; for example, when cutting flutes on a spindle blank with a router, while the spindle blank is secured within the Lathe centers. There are 24 index positions on the lathe. 1. -
Page 16: Parts Breakdown For Jml-1014Vsi
Parts Breakdown for JML-1014VSI Lathe... -
Page 17: Parts List For Jml-1014Vsi
To order parts or reach our service department, call 1-800-274-6848 between 7:30 a.m. and 6:00 p.m. (CST), Monday through Friday. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately. Index No. - Page 18 74 ...TS-081B012...Phillips Pan Head Machine Screw... #8-32×1/4... 4 75 ...JMLVS-89 ...I.D Label..1 76 ...JMLVS-90 ...Speed Label ..1 77 ...JMLVS-91 ...JET Label ..1 78 ...JMLVS-92 ...JET Plaque..1 79 ...JMLVS-93 ...Motor Label ..1 80 ...JMLVS-95 ...Control Panel Label ...
-
Page 19: Electrical Connections Jml-1014Vsi
Electrical Connections (JML-1014VSI) -
Page 21: Parts List For Jwl-1220Vs
Parts List for JWL-1220VS Lathe Index No. Part No. 1 ...JWL1220-101...Headstock ..1 2 ...JML-2 ...Faceplate ... 3”... 1 3 ...JML-3 ...Spur Center... MT2... 1 3A ...JML-3A...Center Point for Spur Center ..1 4 ...JML-4 ...Spindle ... 1” x 8 TPI ... 1 5 ...JML-5 ...Key ... - Page 22 52 ...JML-52 ...Live Center Head ..1 52A ...JML-52A...Center Point for Live Center ..1 53 ...BB-6002ZZ...Ball Bearing... 6002ZZ... 1 54 ...JML-54 ...Live Center Shaft ..1 ...708331 ...Live Center Assembly (not shown) ..1 55 ...JML-55 ...Tailstock Spindle..1 56 ...JML-56 ...Leadscrew...
-
Page 23: Electrical Connection Jwl-1220Vs
Electrical Connection for (JWL-1220VS) Lathe... - Page 24 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60124 Phone: 800-274-6848 www.wmhtoolgroup.com...
