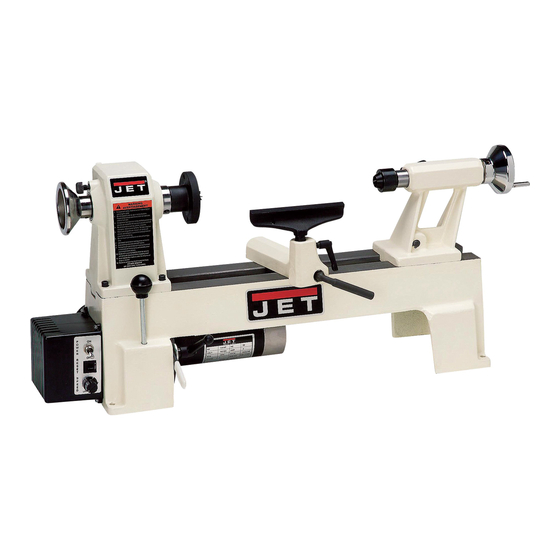

GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been
prepared for the owner and operators of a JET JML-1014VSI / JWL-1220VS wood lathe to promote safety during installation,
operation and maintenance procedures. Please read and understand the information contained in these operating instructions
and the accompanying documents. To obtain maximum life and efficiency from your machine, and to use the machine safely,
read this manual thoroughly and follow instructions carefully.
...Table of Contents
1. Declaration of conformity
2. Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Technical data
Noise emission
Contents of delivery
5. Transport and start up
Transport and installation
Assembly
Mains connection
Dust collection
Starting operation
6. Machine operation
7. Setup and adjustments
Changing spindle speeds
Adjusting tool rest
Installing work holding
Adjusting tailstock
Headstock spindle index
8. Maintenance and inspection
9. Trouble shooting
10. Environmental protection
11. Available accessories
1. Declaration of conformity
On our own responsibility we hereby
declare that this product complies with
the regulations* listed on page 2.
Designed in consideration with the
standards**.
2. Warranty
The Seller guarantees that the
supplied product is free from material
defects and manufacturing faults. This
warranty does not cover any defects
which are caused, either directly or
indirectly, by incorrect use,
carelessness, accidental damage,
repair, inadequate maintenance or
cleaning and normal wear and tear.
Guarantee and/or warranty claims
must be made within twelve months
from the date of purchase (date of
invoice). Any further claims shall be
excluded.
This warranty includes all guarantee
obligations of the Seller and replaces
all previous declarations and
agreements concerning warranties.
The warranty period is valid for eight
hours of daily use. If this is exceeded,
the warranty period shall be reduced
in proportion to the excess use, but to
no less than three months.
Returning rejected goods requires the
prior express consent of the Seller and
is at the Buyer's risk and expense.
Further warranty details can be found
in the General Terms and Conditions
(GTC). The GTC can be viewed at
www.jettools.com or can be sent by
post upon request.
The Seller reserves the right to make
changes to the product and
accessories at any time.
3. Safety
3.1 Authorized use
This wood lathe is designed for
turning wood only. Machining of other
materials is not permitted and may be
carried out in specific cases only after
consulting with the manufacturer.
The proper use also includes
compliance with the operating and
maintenance instructions given in this
manual.
3
The machine must be operated only
by persons familiar with its operation
and maintenance and who are familiar
with its hazards.
The required minimum age must be
observed.
The machine must only be used in a
technically perfect condition.
When working on the machine, all
safety mechanisms and covers must
be mounted.
In addition to the safety requirements
contained in these operating
instructions and your country's
applicable regulations, you should
observe the generally recognized
technical rules concerning the
operation of woodworking machines.
Any other use exceeds authorization.
In the event of unauthorized use of the
machine, the manufacturer renounces
all liability and the responsibility is
transferred exclusively to the operator
3.2 General safety notes
Woodworking machines can be
dangerous if not used properly.
Therefore the appropriate general
technical rules as well as the following
notes must be observed.
Read and understand the entire
instruction manual before attempting
assembly or operation.
Keep this operating instruction close
by the machine, protected from dirt
and humidity, and pass it over to the
new owner if you part with the tool.
No changes to the machine may be
made.
Daily inspect the function and
existence of the safety appliances
before you start the machine.
Do not attempt operation in this case,
protect the machine by unplugging the
mains cable.
Remove all loose clothing and confine
long hair.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JWL-1220VS and is the answer not in the manual?

Questions and answers

Summary of Contents for Jet JWL-1220VS

  • Page 1 Dear Customer, Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been prepared for the owner and operators of a JET JML-1014VSI / JWL-1220VS wood lathe to promote safety during installation, operation and maintenance procedures.
  • Page 2 Do not operate the electric tool near Installation fuse protection unplugged from the power source. inflamm able liquids or gases. JWL-1220VS: Observe the fire fighting and fire alert Never use an incandescant light bulb. Swing over bed 305mm...
  • Page 3 4.3 Content of delivery Work lamp (JWL-1220VS only….. fluorescent bulb not included) 150mm tool rest Fig 3 250mm tool rest (JWL-1220VS only) The red OFF-button stops the Spindle adapter 1”x8TPI / M33x3,5 machine. 75mm face plate Wait for the workpiece to come to a Safety goggles complete stop.
  • Page 4 The face plate (A, Fig 9) screws on the spindle nose thread. Fig 6 Take tension off the belt. Loosen the Fig 9 motor plate lock (A, Fig 7) and lift up motor plate handle (B). Mount the workpiece directly to the face plate using 4 wood screws from Fig 4 the back.
  • Page 5 Machine bed extension JML-1014VSI rests securely between centres and (660mm) can be rotated freely. Stock number 708377 For turning between centres the tool Machine bed extension JWL-1220VS rest is set appr. 3mm higher than Fig 12 (710mm) centreline. NOTE: Stock number 708356 7.4 Adjusting tailstock...
  • Page 6: Table Of Contents

    DE - DEUTSCH Gebrauchsanleitung Sehr geehrter Kunde, vielen Dank für das Vertrauen, welches Sie uns beim Kauf Ihrer neuen JET-Maschine entgegengebracht haben. Diese Anleitung ist für den Inhaber und die Bediener zum Zweck einer sicheren Inbetriebnahme, Bedienung und Wartung der JET Drechselbank JML-1014VSI / JWL-1220VS erstellt worden.
  • Page 7: Allgemeine Sicherheitshinweise

    Beachten Sie dass die elektrische Große und unwuchtige Werkstücke 3.2 Allgemeine Sicherheitshinweise Zuleitung nicht den Arbeitsablauf nur mit kleiner Drehzahl bearbeiten. Holzbearbeitungsmaschinen können behindert und nicht zur Stolperstelle Rissige Werkstücke dürfen nicht bei unsachgemäßem Gebrauch wird. gefährlich sein. verwendet werden. Den Arbeitsplatz frei von Spannschlüssel oder Spannstifte vor Deshalb ist zum sicheren Betreiben...
  • Page 8: Maschinenspezifikation

    Drehdurchmesser über Bett 250mm Maschinenleuchte (Fig 2) Spitzenweite 350mm Riemenstufen 4.3 Lieferumfang Drehzahlbereich 1 500-1200U/min Drehzahlbereich 2 1100-2600U/min Maschinenleuchte (nur JWL-1220VS Drehzahlbereich 3 1700-3900U/min ….Leuchtstoff-Birne nicht mitgeliefert) Spindelnase 1“x 8 TPI (M33x3,5) 150mm Handstahlauflage Spindelkonus MK 2 250mm Handstahlauflage (JWL- Spindelteilung 24 x 15°...
  • Page 9: Absaug Anschluss

    Anschlüsse und Reparaturen der Eine Voraussetzung für fachgerechtes elektrischen Ausrüstung dürfen nur Drechseln ist ein einwandfreies und von einen Elektrofachkraft geschärftes Drechselwerkzeug. durchgeführt werden. 5.4 Absaug Anschluss Vermeiden Sie eine hohe Luftstaubkonzentration. Setzen Sie ein geeignetes Absaug- bzw. Filtersystem ein. 5.5 Inbetriebnahme Mit dem grünen Eintaster (A, Fig 3) Fig 6...
  • Page 10: Spannmittel Montage

    Schrauben Sie dazu den Indexierstift 7.3 Spannmittel Montage (D, Fig 12) in den Spindelstock. Die Stromzufuhr durch Ziehen des In der Riemenscheibe befinden sich Netzsteckers trennen. 24 Bohrungen im Abstand von 15°, in Die Aufspannscheibe (A, Fig 9) wird welchen der Indexierstift voll einrasten auf die Spindelnase aufgeschraubt.
  • Page 11: Umweltschutz

    Artikel Nummer 708377 Maschinenbettverlängerung JWL-1220VS (710mm) Artikel Nummer 708356 Verlängerung für Maschinenuntersatz JML-1014VSI (660mm) Artikel Nummer 708379 Verlängerung für Maschinenuntersatz JWL-1220VS (710 mm) Artikel Nummer 708330 Stirnmitnehmer MK2 Artikel Nummer 708331 Mitlaufkörnerspitze MK2 Artikel Nummer 708332 Gesichtsschutzschild Artikel Nummer 708333...
  • Page 12 Cher client, Nous vous remercions de la confiance que vous nous portez avec l’achat de votre nouvelle machine JET. Ce manuel a été préparé pour l’opérateur du tour à bois JET JML-1014VSI / JWL-1220VS. Son but, mis à part le fonctionnement de la machine, est de contribuer à...
  • Page 13 Conserver à proximité de la machine Ne jamais laisser la machine en Tous travaux de branchement et de tous les documents fournis avec marche sans surveillance. réparation sur l’installation électrique l’outillage (dans une pochette en Arrêter la machine avant de quitter la doivent être exécutés uniquement par plastique, à...
  • Page 14 5.2 Montage Vitesse 6 1800-4300T/min contact de l’ampoule brûlante. Nez de broche 1“x 8 TPI (M33x3,5) Déballer la machine. Avertir JET Poupée en cône immédiatement si vous constatez des Divisions de la broche 24 x 15° pièces endommagées par le transport 5.3 Raccordement au réseau électr.
  • Page 15 Avant la mise en exploitation Fig 6 connecter la machine à un collecteur Desserrer la courroie. Desserrer la de poussières. manette (A, Fig 7) et soulever le moteur avec le manche (B). 5.5 Mise en exploitation Mettre la machine en route avec le bouton vert (A, Fig 3).
  • Page 16 Fixer la pièce à usiner avec 4 vis en Tourner le volant (A, Fig 11) dans le 8. Entretien et inspection bois, par derrière, directement sur le sens des aiguilles d’une montre pour Attention plateau circulaire. sortir le fourreau et bloquer la manette Faire tous les travaux de Choisir soigneusement les vis.
  • Page 17 11. Accessoires Article 708354 Socle JML-1014VSI Article 708378 Socle JWL-1220VS Article 708355 Rallonges de table JML-1014VSI (660mm) Article 708377 Rallonges de table JWL-1220VS (710mm) Article 708356 Rallonge de socle JML-1014VSI (660mm) Article 708379 Rallonge de socle JWL-1220VS (710mm) Article 708330...

This manual is also suitable for:

Jml-1014vsi

Table of Contents
