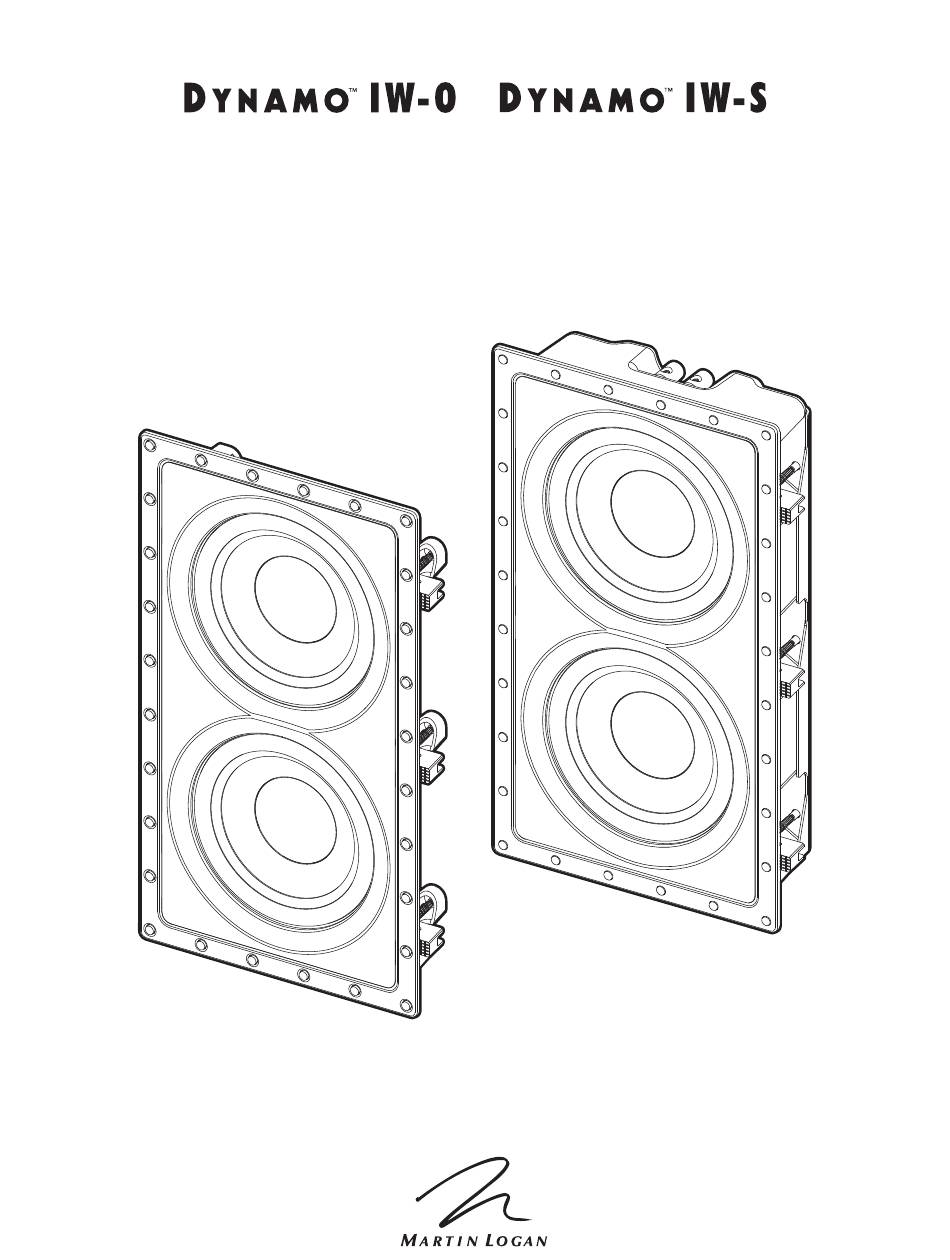

- Page 1 Mode ls : D I W-0 & D I W-S y n a m o y n a m o u se r’s ma nu al ®...
- Page 2 WEEE directive, require special reuse and recycling directive. When disposing of packaging and other shipping processing. For this reason MartinLogan Inc. (manufacturers of MartinLogan speakers and Anthem ® Electronics) has material we encourage you to recycle through the normal channels.
-
Page 3: Table Of Contents
DYNAMO IW-0 & IW-S . . . . . . . . . . . . . . . . . . - Page 4 I W- S USING A DRYWALL SAW (OR EQUIVALENT) CUT A HOLE TO THIS SIZE (18 in x 9- in / 45.7 cm x 24.5 cm) Mark cutout area Mark cutout area High Resolution Fire-Rated In-Wall Subwoofer System with a pencil. with a pencil.
- Page 5 European Union WEEE Directive 2012/19/EU; • European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU; Hereby, MartinLogan Ltd., Inc.’s declares that this DYNAMO IW-O is in compliance with the essential require- • European Union Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Directive ments and other relevant provisions of the following EU Compliance Directive Information.
- Page 6 For this reason MartinLogan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you. To find your local distributor please contact the dealer from whom you purchased this product, email info@martinlogan.com or visit the distributor loca- tor at www.martinlogan.com.
- Page 7 DCS-208IW3 DYNAMO IW-0 Performance In-Wall Subwoofer 3.9” 4.1” 3.6” 3.8” [99mm] [103mm] [91.7mm] [95.5mm] MINIMUM TOP VIEW MOUNTING TOP VIEW DEPTH (with grille) 10.73” 3.5” [273mm] [90mm] 19.11” [486mm] FRONT VIEW SIDE VIEW BACK VIEW MOUNTING DIMENSIONS: (H) 19.11 " [ 486mm ] x (W) 10.73 " [ 273 mm] x (D) 4.1 " [ 103 mm] DCS-208FR3 WEIGHT: 15lbs (6.8kg) each...
-
Page 8: Subwoofer Assembly Parts List
• 1 subwoofer grille • 1 mounting template . Your New Subwoofer Break-In Allow your MartinLogan subwoofer system to operate for several hours before you listen critically . Cleaning Clean subwoofer housing with a soft, damp cloth . Do not use a strong or abrasive cleaner or get any part of the subwoofer wet . -
Page 9: Placement
laCement Figure 6 . Typical Subwoofer placement options indicated by the shaded areas . Your unique room design may require another alternative . -
Page 10: The Listening Room
. of the room . If desired, for further optimized bass performance and even great- er output, you can install an additional pair of MartinLogan in-wall Guidelines For Deciding On subwoofers . Fig . 1c provides recommended placement for four Subwoofer Placement subwoofers . -
Page 11: Color Match Painting
Color Match Painting The grille of your MartinLogan In-Wall Subwoofer is finished in neutral white to blend into any room . However, the grilles may be painted to match any decor . Please note: • Do not paint the surface behind the grille •... -
Page 12: Dynamo Iw-0 & Iw-S
6 . Gently press the grille onto the front face of the speaker (Fig . 4e) . The magnets will ensure correct attachment . MartinLogan Dynamo in wall subwoofers present a load that is compatible with 8 ohms . Please refer to your amplifiers owner’s manual for it’s specific capabilities and wiring instructions . -
Page 13: General Information
MartinLogan may not honor warranty service claims unless we have a completed warranty registration on file! Service Should you be using your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following: 1 . -
Page 14: Specifications
PeCIfICatIons DYNAMO IW-0* Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - Page 15 DYNAMO IW-S* Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dual 8”...
- Page 16 otes...
- Page 17 2 1 0 1 D el aw are St re e t , L aw re nc e , K an s as, USA tel . 785.749.0133 www.mar ti n l ogan .com ©2022 MartinLogan Ltd. Inc., All rights reserved.
