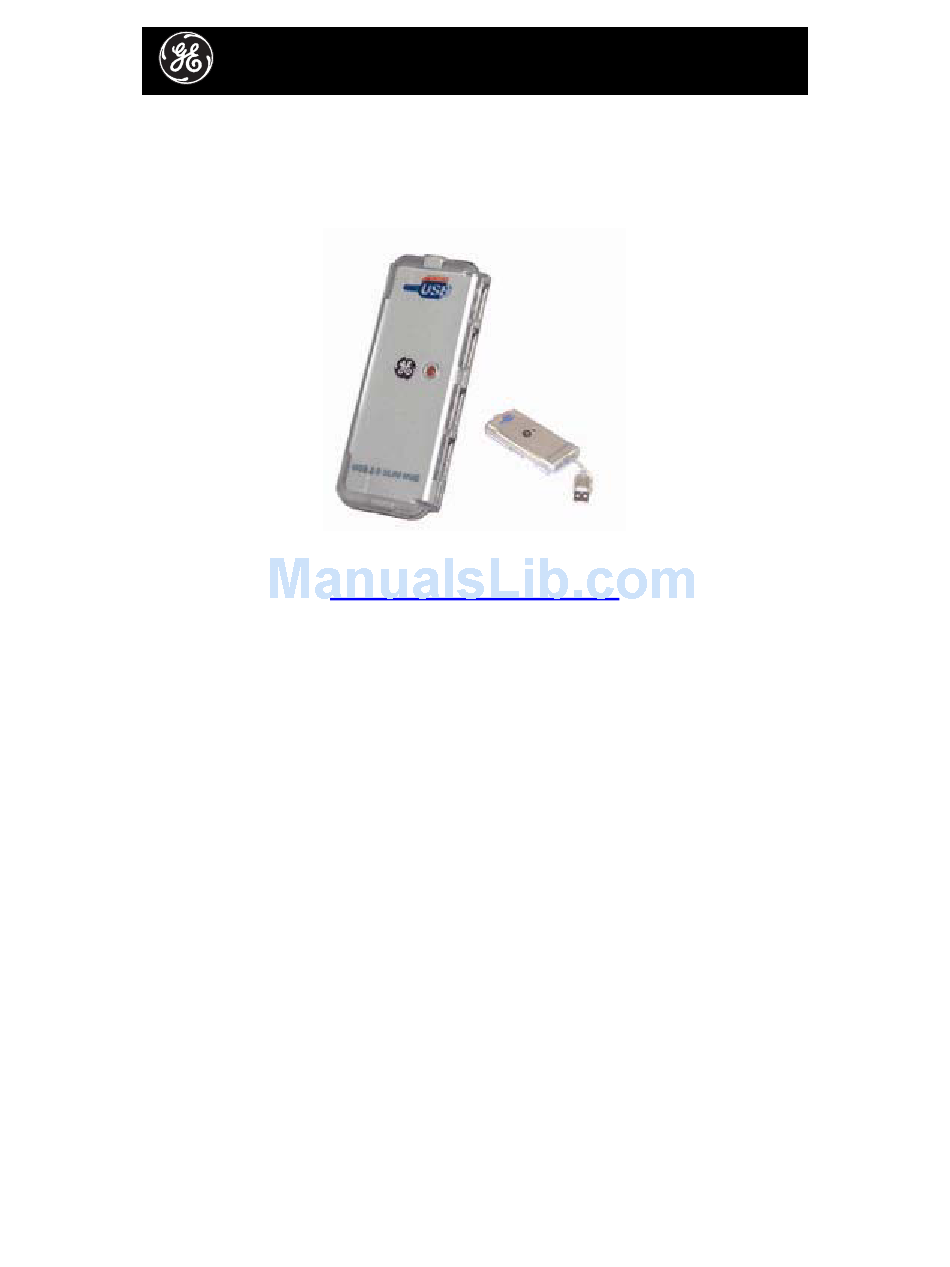

- Page 1 USB 2.0 4-Port TetraHub™ www.jascoproducts.com HO98751 Rev. 1...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION OVERVIEW III. SAFETY INSTRUCTIONS IV. POWER MODE SETTING HARDWARE INSTALLATION VI. TETRAHUB™ ACCESSORIES VII. SOFTWARE INSTALLATION (WINDOWS 98) VIII. TROUBLESHOOTING IX. TECHNICAL SPECIFICATIONS FCC COMPLIANCE STATEMENT XI. LIMITED LIFETIME WARRANTY Page 2... -
Page 3: Introduction
Introduction Congratulations on the purchase of your 4-port USB 2.0 TetraHub™! The TetraHub™ will allow you to receive the maximum possible bandwidth for all of your USB 2.0 and 1.1 devices! Please read this entire manual carefully before using your TetraHub™. -
Page 4: Overview
480 Mbps. At the same time connect USB 1.1 devices for a guaranteed 12 Mbps of bandwidth per device. Use any combination of USB 1.1 and 2.0 devices – the TetraHub™ will adapt to give you the greatest bandwidth possible for each device! FEATURES •... -
Page 5: Safety Instructions
III. Safety Instructions Always read the Safety Instructions carefully. Keep this instruction manual for future reference. Keep this equipment away from humidity. Do not expose to moisture. Replace if damaged. Replace if you see obvious signs of breakage. If you cannot get it to work according to this instruction manual refer to the Troubleshooting section (IX) or contact technical support at www.jascoproducts.com. -
Page 6: Power Mode Setting
Power Mode Setting There are two power mode options for the USB 2.0 4-Port TetraHub™. The first is bus-power mode, which does NOT require the use of an AC power adapter. In this mode, the hub is provided with 500 milliamps for all 4 ports. - Page 7 How do you know which power mode is right for you? Most applications do not require an AC power adapter. If you have high powered devices connected, your computer may display an error message indicating the hub has insufficient power to support the connected devices. This will indicate that an AC power adapter is necessary for your application.
-
Page 8: Hardware Installation
1. Make sure your computer has all the necessary updates required to support USB. These can be found on Microsoft’s website. 2. Plug the USB connector of the Tetrahub™ into the USB port of your computer or hub. The power LED should illuminate. -
Page 9: Tetrahub™ Accessories
Note: If you connect the hub to a USB 1.1 Port, your computer may warn you that a high-speed device has been connected to a non-high speed port. Your hub will function properly, however it will function at the USB 1.1 speed of your USB port. VI. TetraHub™ Accessories AC Power Adapter for just $9.99* http://www.jascoproducts.com/hubpowersupply.html Free* High Speed USB Extension cable http://www.jascoproducts.com/freeusbcable.html... -
Page 10: Software Installation (Windows 98)
VII. Software Installation (Windows 98) Software installation is only required for Windows® 98 and 98 SE users. Users of all other Operating Systems, including Windows® NT, ME, 2000, XP and any Mac® OS, may skip this section. 1) Connect the hub to your computer. 2) Windows®... -
Page 11: Troubleshooting
VIII. Troubleshooting • Hub Not Seen Make sure you have installed all Windows® updates and patches pertaining to USB. These are available on Microsoft’s® website. Make sure all cables are properly connected. • Hub Not Working After Reboot Unplug the uplink cable (and the AC adapter cable if it is connected) from the hub. -
Page 12: Technical Specifications
IX. Technical Specifications USB Hub: 4 Ports Standards: USB 1.1 and 2.0 Compatible Operating Systems: Windows® 98 SE, ME, 2000, XP Mac OS X and above Data Speed: High: 480 Mbps Full: 12 Mbps Low: 1.5 Mbps Upstream Ports: Series A plug x 1 Downstream Ports: Series A receptacle port x 4 LEDs:... -
Page 13: Fcc Compliance Statement
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 14: Limited Lifetime Warranty
XI. Limited Lifetime Warranty Jasco Products Co., Inc. warrants this product to be free from manufacturing defects regardless of how long you own it. This warranty is limited to the replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit.
