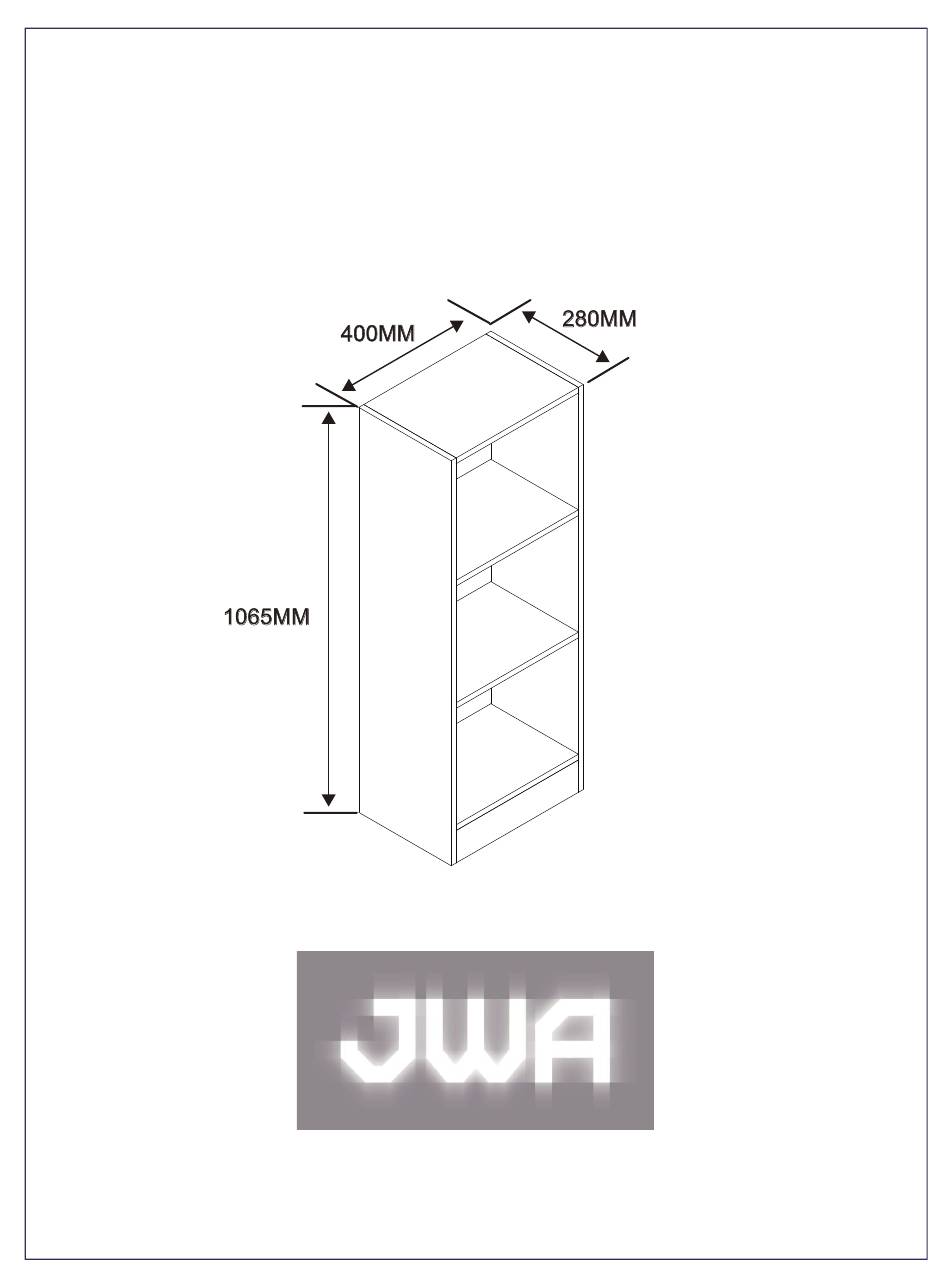

- Page 1 ASSEMBLY INSTRUCTION VEDIA 400 BOOKCASE ITEM CODE 68461 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST M7X39mm M14.8X12mm M8X30mm 16pcs 16pcs 20pcs 12pcs M4x30mm M3.5x14mm 1pcs 4pcs 1pcs SIDE PANEL BOTTOM PANEL SIDE PANEL SUPPORT PANEL BACK PANEL TOP PANEL SHELF...
- Page 4 STEP 1: STEP 2:...
- Page 5 STEP 3: STEP 4:...
- Page 6 STEP 5: ASSEMBLY COMPLETE...
- Page 7 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 8 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
