RELAX...if you can follow a few easy, step-by-step
directions in order, YOU CAN ASSEMBLE THIS ITEM.
PARTS LIST
1
TOP FRAME
1 PC
HARDWARE LIST
A
B
1/4"x13mm
1/4"X25mm
Allen Bolt
8 PCS
Do not tighten screws & bolts until the entire unit is completely assembled.
1. Using screw (A) & (C) to assemble
top frame (1) and leg (2) as shown.
2. Using screw (B), (C) & plate washer
(D) to assemble bottom frame (3) and
leg as shown.
2
LEG
4 PCS
C
Lock Washer
Allen Bolt
12 PCS
4 PCS

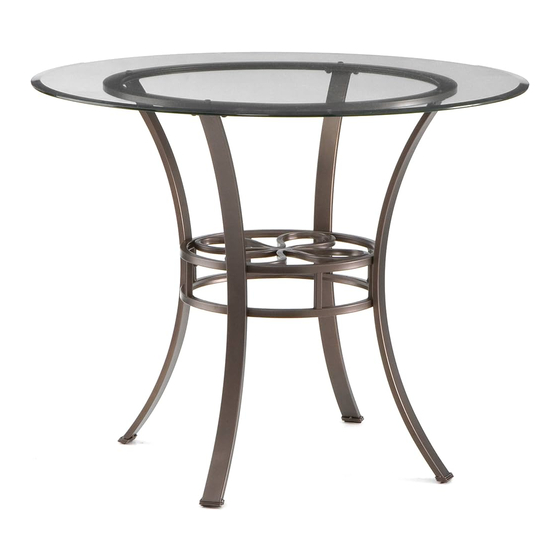

DINING TABLE
3
BOTTOM FRAME
1 PC
E
D
Flat Washer
4 PCS
2
4
TOP GLASS
1 PC
F
Glass pad
Wrench
4 PCS
1 PC
Advertisement
Table of Contents
Related Manuals for SEI Lucianna DN1490
Summary of Contents for SEI Lucianna DN1490
- Page 1 DINING TABLE RELAX…if you can follow a few easy, step-by-step directions in order, YOU CAN ASSEMBLE THIS ITEM. PARTS LIST TOP FRAME BOTTOM FRAME TOP GLASS 1 PC 4 PCS 1 PC 1 PC HARDWARE LIST 1/4”x13mm 1/4”X25mm Lock Washer Flat Washer Glass pad Wrench...
- Page 2 3. Turn the unit upside down and put glass pad (E) onto top frame as shown, then put on top glass (4). YOUR NEW LUCIANNA DINING TABLE IS FINISHED READY TO USE THIS PRODUCT IS NOT INTENDED FOR COMMERCIAL USE Please count, identify and compare parts and hardware list to be sure all parts are present.
