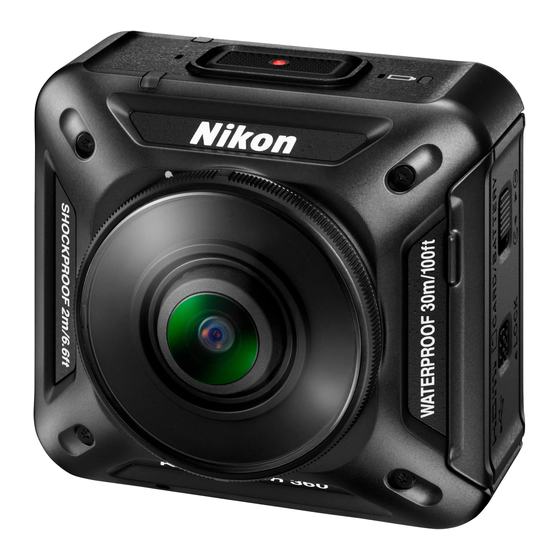

Page 1 DIGITAL CAMERA Quick Start Guide The KeyMission 360 SnapBridge Introduction Parts of the Camera Getting Started Using the Camera Technical Notes Read this manual thoroughly before using the camera. To ensure proper use of the camera, be sure to read the For Your Safety leaflet, “<Important>...
Page 2 The KeyMission 360 The KeyMission 360 is a new concept camera that is slightly different from the cameras before it. Create 360° content The camera combines two images captured by lenses with an angle of view of about 180 degrees so that you can enjoy creating 360°...
Page 3 Playing Back Images Playing back using the SnapBridge 360/170 app, the KeyMission 360/170 Utility, or a TV (HDMI connection): Part of the single image that was processed in the camera is displayed and you can play back while moving the point of view.
Page 4 SnapBridge Your images. The world. Connected Welcome to SnapBridge — Nikon’s new family of services to enrich your image experience. SnapBridge connects your camera and compatible smart device, through a combination of Bluetooth® low energy (BLE) technology and a dedicated app. The stories you capture with your Nikon camera and lenses are automatically transferred to the device as they are taken.
Page 5 Upload of photos and thumbnail images to the NIKON IMAGE SPACE cloud service Movies cannot be automatically transferred. NIKON IMAGE SPACE does not support the viewing of 360° content by moving the point of view. A range of services that enriches your imaging life, including: Camera remote control Automatic update of camera’s date and...
Page 6: Introduction
Adobe PDF reader can be downloaded from the Adobe website. Downloading “KeyMission 360/170 Utility” KeyMission 360/170 Utility is free software that enables you to transfer images and movies to your computer for viewing and editing. You can also change the camera’s settings.
Page 7 Nikon User Support Should you need technical support, we offer a number of options. Internet For customers in the United States: www.nikonusa.com For customers in Canada: www.nikon.ca (English), fr.nikon.ca (Français) For customers in Mexico: www.nikon.com.mx For customers in Brazil: www.nikon.com.br Telephone...
Page 8 Confirming the Package Contents In the event that any items are missing, please contact the store where you purchased the camera. KeyMission 360 Two AA-14A Lens Two AA-15A Underwater Digital Camera Protectors Lens Protectors EN-EL12 Rechargeable EH-73P Charging AC UC-E21 USB Cable...
Page 9: Information And Precautions
Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profits that may result from product malfunction.
Page 10 Nikon will not be held liable for any damages resulting from the use of this product. While every effort was made to ensure that the information in these manuals is accurate and complete, we would appreciate it were you to bring any errors or omissions to the attention of the Nikon representative in your area (address provided separately).
Page 11: Important> Notes About Shockproof, Waterproof, And Dustproof Performance And Condensation
Notes About Shockproof Performance This camera has passed Nikon’s in-house test (drop test from a height of 200 cm (6 ft 6 in.) on a 5 cm (2 in.) thick plywood panel) compliant with the MIL-STD 810F Method 516.5-Shock...
Page 12: Notes About Shockproof, Waterproof, And Dustproof Performance
Notes About Shockproof, Waterproof, and Dustproof Performance Do not drop the camera, strike it against a hard object such as a rock, or throw it against a water surface. Do not subject the camera to shock when using it underwater. - Do not subject the camera to water pressure by exposing it to rapids or waterfalls.
Page 13: Notes About Operating Temperature, Humidity, And Condensation
If the camera is exposed to shock, it is recommended to consult your retailer or Nikon-authorized service representative to confirm the waterproof performance (charged service). If the waterproofing packing begins to deteriorate, consult your retailer or Nikon- authorized service representative. The waterproof performance of the waterproofing packing may start to deteriorate after one year.
Page 14 Introduction...
Page 15 Parts of the Camera The Camera Body Front Back Bottom Lens protector mounting mark 10 Waterproofing packing Lens 11 Micro-USB connector Speaker 12 Airplane mode switch Status lamp 13 HDMI micro connector (Type D) Movie button 14 Microphone (stereo) Power-on lamp 15 Photo button Battery-chamber/memory card slot 16 N-Mark (NFC antenna)
Page 16 Lamp Display You can check the status of the camera by looking at the lamps. Use c Camera M Camera settings M LED brightness in the SnapBridge 360/170 app (A24) to change the brightness of the lamps. Power-On Lamp Status Color Description The battery level is within 30% to 100%.
Page 17 Status Lamp Status Color Description The camera is connected to a TV with an HDMI Green cable. The camera is recording a movie. On at the same time Green The camera is on standby for pairing (A9). Alternately flashing Pairing is complete. Green The camera is capturing a still image.
Page 18 Getting Started Inserting the Battery and Memory Card Battery latch Memory card slot Unlock the battery-chamber/memory card slot cover latch (1), move the battery- chamber/memory card slot cover latch release to the y position (2), and then open the battery-chamber/memory card slot cover (3). With the battery’s positive and negative terminals oriented correctly, move the orange battery latch (4), and fully insert the battery (5).
Page 19 Formatting a Memory Card The first time you insert a memory card that has been used in another device into this camera, make sure to format it with this camera. Note that formatting a memory card permanently deletes all images and other data on the memory card.
Page 20 Charging the Battery Charging AC Adapter Power-on lamp Electrical outlet USB cable (included) If a plug adapter* is included with your camera, securely connect it to the Charging AC Adapter. Once the two are connected, attempting to forcibly remove the plug adapter could damage the product.
Page 21 Notes About Charging with a Computer When c Camera M Camera settings M Charge by computer is set to Auto in the SnapBridge 360/170 app (A24), connecting the camera to a computer that is running will automatically charge the battery inserted into the camera using power supplied by the computer.
Page 22 Turning the Camera On or Off Turning On the Camera Press and hold down the movie button for about 3 seconds to turn on the camera. Shooting starts when the camera turns on by pressing the movie button or photo button. When the camera turns on, the power-on lamp turns on.
Page 23 Pairing with a Smartphone or Tablet Here, pairing refers to the setting used to connect the camera and smartphone or tablet (below, “smart device”) through Bluetooth. The smart device screen and buttons may differ from the actual screen. Preparing for Pairing Prepare for pairing in advance.
Page 24 Initial Pairing Perform initial pairing in the following situations: When pairing for the first time after purchasing the camera When pairing for the first time after updating the camera’s firmware Prepare for pairing (A9). Press the movie button or photo button to put the camera into pairing standby mode.
Page 25 Follow the on-screen instructions and when Connect to Camera the screen shown on the right is displayed, tap KeyMission 360_xxxxxxxx. “xxxxxxxx” varies depending on the camera. Camera name KeyMission 360_xxxxxxxx When a confirmation dialog for pairing is displayed, tap Pairing on the lower right of the screen (the button name varies depending on the model of the smart device).
Page 26 Re-pairing Perform re-pairing in the following situations: When pairing the same smart device again after unpairing using End pairing in the SnapBridge 360/170 app When pairing with a second smart device or more Prepare for pairing (A9). Press and hold down the movie button for about 7 seconds to put the camera into pairing standby mode.
Page 27 If pairing fails, the status lamps flash red six times at the same time. When a message indicating that pairing has failed is displayed on the screen, tap OK and repeat the procedure KeyMission 360 from step 1. Getting Started...
Page 28 We recommend attaching the silicone jacket to soften physical impacts to the camera. Attach by inserting the camera from the side of the silicone jacket so that the Nikon logos of the camera and silicone jacket overlap. If the Nikon logos do not overlap, the silicone jacket may appear in the images.
Page 29 The Lens Protector/Underwater Lens Protector Make sure to attach the lens protectors or underwater lens protectors to protect the lens because they are made of glass. Lens protector: Used to protect the lens (attached to the camera at time of factory shipment). Although the camera can be used underwater because it is waterproof, captured images may be blurred.
Page 30 Notes About the Lens Protectors and Underwater Lens Protectors Be careful not to subject the protectors to physical impacts or rubbing. Doing so could cause scratches or damage. When you are not using the camera, insert it into a case made of soft cloth material with the lens protectors or underwater lens protectors attached.
Page 31 Using the Camera Recording Movies or Shooting Still Images Before shooting, check the orientation of the camera (the side with the Nikon logo is the front). Your hands will appear in images during hand-held photography because this camera captures 360° content. To reduce the appearance of hands, use the base adapter (A27) to stabilize the camera and shoot.
Page 32 Shooting with a Smart Device Pair the camera and the smart device (A9). Tap c Camera M Remote photography in the SnapBridge 360/170 app. When a confirmation dialog for the Wi-Fi connection is displayed, tap OK. To record a movie, tap .
Page 33 Maximum Movie Recording Time The available recording time for a single movie depends on the remaining space in a memory card. The remaining recording time for a single movie is displayed on the shooting screen of the SnapBridge 360/170 app. The actual remaining recording time may vary depending on the movie content, subject movement, or type of memory card.
Page 34 Selecting a Movie Mode Select the desired type of movie to record by using Movie mode (A25) in the SnapBridge 360/170 app. Standard movie: Record normal movies. Superlapse movie: The camera records movies and saves them in fast motion (960/30p or 960/25p). Use to record a movie while moving the camera.
Page 35 Time-lapse movie: The camera can automatically capture still images at a specified interval to create time-lapse movies. When NTSC/PAL (A25) is set to NTSC, 300 images are captured. When set to PAL, 250 images are captured. Time required for shooting Type Interval time NTSC...
Page 36 Playing Back Images Playing Back Images Saved in the Camera Pair the camera and the smart device (A9). Tap c Camera M Download selected pictures in the SnapBridge 360/170 app. When a confirmation dialog for the Wi-Fi connection is displayed, tap OK. Multiple images saved in the camera are displayed.
Page 37 You can play back images on a TV or computer. See the Reference Manual (PDF format) for details (Avi). Editing Images on a Computer If you transfer captured images to a computer, you can edit the images using KeyMission 360/170 Utility. See the KeyMission 360/170 Utility online help for more information. Using the Camera...
Page 38 Changing the Settings Perform the following operations in the SnapBridge 360/170 app to change the camera settings. Pair the camera and smart device in advance (A9). c Camera M Camera settings Option Description Date and time Set the camera clock. Set the volume of sounds during operation.
Page 39 Option Description Configure the wireless network settings to connect Network menu the camera and a smart device. Set whether to automatically upload captured images to a smart device. Send while shooting Movies cannot be uploaded using Send while shooting. To transfer movies to a smart device, use the SnapBridge 360/170 app.
Page 40 Option Description Underwater Set to Yes when shooting underwater. Active Reduce the loss of details in highlights and shadows. D-Lighting Adjust white balance to suit the light source in order to make the colors in images match what you see with your eyes.
Page 41 Using the Base Adapter and Base Mount Attaching the base adapter to the camera allows you to use special accessories such as a base mount. To increase the adhesive strength, attach the base mount for 24 hours or longer before using the camera. Align the camera screw with the tripod socket of the camera (1), and tighten the screw knob (2).
Page 42 Adjust the camera angle. Loosen the plate lock (1), set the camera angle (2), and then tighten the lock (3). Make sure that there are no foreign substances on the surface to which the base mount will be attached. If there are foreign substances such as dust or water, remove them. Peel off the release liner from the back of the base mount, and firmly press the base mount so that the entire surface is attached.
Page 43 Base Mount The base mount is an accessory that is used to easily attach and detach a base adapter mounted with the camera. Attach the base mount to places where you want to mount the camera. Use the flat or curved type depending on the surface to which the base mount will be attached.
Page 44 Consult the dealer or an experienced radio/television technician for help. CAUTIONS Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corporation may void the user’s authority to operate the equipment. Technical Notes...
Page 45 Interface Cables Use the interface cables sold or provided by Nikon for your equipment. Using other interface cables may exceed the limits of Class B Part 15 of the FCC rules. Notice for Customers in the State of California WARNING Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
Page 46 (products purchased in the EU or EFTA can be used anywhere within the EU and EFTA). Nikon does not accept liability for use in other countries. Users who are unsure as to the original country of sale should consult with their local Nikon service center or Nikon-authorized service representative.
Page 47 Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. KeyMission 360, which is equipped with a TYPE1FJ (FCC ID:VPYLB1FJ / IC ID:772C- LB1FJ) Wireless LAN Module, has been tested and found to comply with FCC/IC...
Page 48 Caring for the Product Observe the precautions described below in addition to the warnings in the For Your Safety leaflet, “<Important> Notes About Shockproof, Waterproof, and Dustproof Performance and Condensation” (Axi), and “Notes About Wireless Communication Functions” (A32) when using or storing the device. The Camera Do Not Apply Strong Impact to the Camera The product may malfunction if subjected to strong shock or vibration.
Page 49 If you notice any abnormalities such as excessive heat, smoke, or an unusual smell coming from the battery, immediately discontinue use and consult your retailer or Nikon- authorized service representative. After removing the battery from the camera or optional battery charger, put the battery in a plastic bag, etc.
Page 50 Charging an Exhausted Battery Turning the camera on or off while an exhausted battery is inserted in the camera may result in reduced battery life. Charge the exhausted battery before use. Storing the Battery Always remove the battery from the camera or optional battery charger when it is not being used.
Page 51 Cleaning and Storage Cleaning after Using the Camera Underwater Follow the procedure below to rinse the camera with fresh water within 60 minutes after using it underwater or at the beach. The underwater lens protectors are used here as an example.
Page 52 Cleaning after Using the Camera in Conditions Other than Underwater Use a blower or air duster to remove any dust or lint that adheres to the lenses, lens protectors, silicone jacket, camera body, special accessories, etc. To remove fingerprints or other stains, gently wipe the parts with a soft dry cloth.
Page 53 Troubleshooting If the camera fails to function as expected, check the list of common problems below before consulting your retailer or Nikon-authorized service representative. Also, refer to the Reference Manual (PDF format) (Avi). Camera Issues Problem Cause/Solution Wait for recording to end.
Page 54 Problem Cause/Solution The battery is exhausted. 6, 35 Out of memory. Insert a memory card with sufficient free space. The camera has run out of file numbers. Change the The camera beeps memory card, or format the memory card. three times. An error occurred while accessing the memory card.
Page 55 Corporation in the United States and/or other countries. ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Nikon Corporation is under license. Apple®, App Store®, the Apple logos, Mac, OS X, iPhone®, iPad®, iPod touch®...
Page 56 “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Page 57 No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION. CT6J04(11) 6MQA1611-04...
Page 58 DIGITAL CAMERA Reference Manual Read this manual thoroughly before using the camera. To ensure proper use of the camera, be sure to read “For Your Safety” (page x), “<Important> Notes About Shockproof, Waterproof, and Dustproof Performance and Condensation” (page xiv), and “Notes About Wireless Communication Functions”...
Page 59 Quick Topic Search You can return to this page by tapping or clicking in the lower right of any page. Main Topics The KeyMission 360 ......................iii SnapBridge ..........................v Introduction ...........................vii Table of Contents .......................xvii Parts of the Camera ....................... 1 Getting Started........................
Page 60 The KeyMission 360 The KeyMission 360 is a new concept camera that is slightly different from the cameras before it. Create 360° content The camera combines two images captured by lenses with an angle of view of about 180 degrees so that you can enjoy creating 360°...
Page 61 Playing Back Images Playing back using the SnapBridge 360/170 app, the KeyMission 360/170 Utility, or a TV (HDMI connection): Part of the single image that was processed in the camera is displayed and you can play back while moving the point of view.
Page 62 SnapBridge Your images. The world. Connected Welcome to SnapBridge — Nikon’s new family of services to enrich your image experience. SnapBridge connects your camera and compatible smart device, through a combination of Bluetooth® low energy (BLE) technology and a dedicated app. The stories you capture with your Nikon camera and lenses are automatically transferred to the device as they are taken.
Page 63 Upload of photos and thumbnail images to the NIKON IMAGE SPACE cloud service Movies cannot be automatically transferred. NIKON IMAGE SPACE does not support the viewing of 360° content by moving the point of view. A range of services that enriches your imaging life, including: Camera remote control Automatic update of camera’s date and...
Page 64 Introduction Read This First Thank you for purchasing the Nikon KeyMission 360 digital camera. Using “SnapBridge 360/170” The dedicated app “SnapBridge 360/170” is required to set up this camera, use remote photography, play back images, change settings, and more. Before setting up the camera, install the dedicated app on your smartphone or tablet (Av).
Page 65 Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profits that may result from product malfunction.
Page 66 Nikon will not be held liable for any damages resulting from the use of this product. While every effort was made to ensure that the information in these manuals is accurate and complete, we would appreciate it were you to bring any errors or omissions to the attention of the Nikon representative in your area (address provided separately).
Page 67 For Your Safety To prevent damage to property or injury to yourself or to others, read “For Your Safety” in its entirety before using this product. Keep these safety instructions where all those who use this product will read them. Failure to observe the precautions marked DANGER with this icon carries a high risk of death or...
Page 68 Do not let your skin remain in prolonged contact with this product while it is on or plugged in. Failure to observe this precaution could result in low- temperature burns. Do not use this product in the presence of flammable dust or gas such as propane, gasoline or aerosols.
Page 69 Do not leave the product where it will be exposed to extremely high temperatures, for an extended period such as in an enclosed automobile or in direct sunlight. Failure to observe this precaution could result in fire or product malfunction. Check that the equipment is mounted correctly and inspect it for wear and damage at regular intervals.
Page 70 Discontinue use immediately should you notice any changes in the batteries, such as discoloration or deformation. Cease charging if they do not charge in the specified period of time. Failure to observe these precautions could result in the batteries leaking, overheating, rupturing, or catching fire.
Page 71 Notes About Shockproof Performance This camera has passed Nikon’s in-house test (drop test from a height of 200 cm (6 ft 6 in.) on a 5 cm (2 in.) thick plywood panel) compliant with the MIL-STD 810F Method 516.5-Shock...
Page 72 Notes About Shockproof, Waterproof, and Dustproof Performance Do not drop the camera, strike it against a hard object such as a rock, or throw it against a water surface. Do not subject the camera to shock when using it underwater. - Do not subject the camera to water pressure by exposing it to rapids or waterfalls.
Page 73 If the camera is exposed to shock, it is recommended to consult your retailer or Nikon-authorized service representative to confirm the waterproof performance (charged service). If the waterproofing packing begins to deteriorate, consult your retailer or Nikon- authorized service representative. The waterproof performance of the waterproofing packing may start to deteriorate after one year.
Page 74: Table Of Contents
Table of Contents Quick Topic Search ....................... ii Main Topics..................................ii Common Topics ................................ii The KeyMission 360 ......................iii SnapBridge ..........................v Introduction .......................... vii Read This First ............................vii Using “SnapBridge 360/170” ..........................vii Symbols and Conventions Used in This Manual ..................vii Information and Precautions ..........................
Page 75 Parts of the Camera ......................1 The Camera Body............................ 2 Lamp Display............................3 Power-On Lamp................................3 Status Lamp..................................4 Getting Started........................5 Inserting the Battery and Memory Card..................6 Removing the Battery or Memory Card ......................7 Memory Cards That Can Be Used........................7 Charging the Battery ..........................
Page 76 Connecting the Camera to a TV or Computer ............33 Utilizing Images............................. 34 Viewing Images on a TV ........................35 Transferring Images to a Computer (KeyMission 360/170 Utility)........36 Installing KeyMission 360/170 Utility ......................36 Transferring Images to a Computer ......................36...
Page 77 Technical Notes........................38 Notices..............................39 Notes About Wireless Communication Functions ..............41 Caring for the Product ........................44 The Camera................................... 44 The Battery ..................................45 The Charging AC Adapter............................ 46 Memory Cards................................47 Cleaning and Storage.......................... 48 Cleaning after Using the Camera Underwater..................48 Cleaning after Using the Camera in Conditions Other than Underwater ......
Page 78: Parts Of The Camera
Parts of the Camera The Camera Body ........................2 Lamp Display ........................... 3 Parts of the Camera...
Page 79: The Camera Body
The Camera Body Front Back Bottom Lens protector mounting mark ..17 10 Waterproofing packing Lens 11 Micro-USB connector......8, 34 Speaker 12 Airplane mode switch ......13 Status lamp..........4, 20 13 HDMI micro connector (Type D).... 34 Movie button ..........20 14 Microphone (stereo) Power-on lamp ..........3, 8 15 Photo button.............
Page 80: Lamp Display
Lamp Display You can check the status of the camera by looking at the lamps. Use c Camera M Camera settings M LED brightness in the SnapBridge 360/170 app (A27) to change the brightness of the lamps. Power-On Lamp Status Color Description The battery level is within 30% to 100%.
Page 81: Status Lamp
Status Lamp Status Color Description The camera is connected to a TV with an HDMI Green cable. The camera is recording a movie. On at the same time Green The camera is on standby for pairing (A11). Alternately flashing Pairing is complete. Green The camera is capturing a still image.
Page 82: Getting Started
Getting Started Inserting the Battery and Memory Card................. 6 Charging the Battery......................8 Turning the Camera On or Off ..................10 Pairing with a Smartphone or Tablet ................11 Attaching the Silicone Jacket...................16 The Lens Protector/Underwater Lens Protector ............17 Getting Started...
Page 83: Inserting The Battery And Memory Card
Inserting the Battery and Memory Card Battery latch Memory card slot Unlock the battery-chamber/memory card slot cover latch (1), move the battery- chamber/memory card slot cover latch release to the y position (2), and then open the battery-chamber/memory card slot cover (3). With the battery’s positive and negative terminals oriented correctly, move the orange battery latch (4), and fully insert the battery (5).
Page 84: Removing The Battery Or Memory Card
Formatting a Memory Card The first time you insert a memory card that has been used in another device into this camera, make sure to format it with this camera. Note that formatting a memory card permanently deletes all images and other data on the memory card.
Page 85: Charging The Battery
Charging the Battery Charging AC Adapter Power-on lamp Electrical outlet USB cable (included) If a plug adapter* is included with your camera, securely connect it to the Charging AC Adapter. Once the two are connected, attempting to forcibly remove the plug adapter could damage the product.
Page 86 Notes About Charging with a Computer When c Camera M Camera settings M Charge by computer is set to Auto in the SnapBridge 360/170 app (A27), connecting the camera to a computer that is running will automatically charge the battery inserted into the camera using power supplied by the computer.
Page 87: Turning The Camera On Or Off
Turning the Camera On or Off Turning On the Camera Press and hold down the movie button for about 3 seconds to turn on the camera. Shooting starts when the camera turns on by pressing the movie button or photo button. When the camera turns on, the power-on lamp turns on.
Page 88: Pairing With A Smartphone Or Tablet
Pairing with a Smartphone or Tablet Here, pairing refers to the setting used to connect the camera and smartphone or tablet (below, “smart device”) through Bluetooth. The smart device screen and buttons may differ from the actual screen. Preparing for Pairing Prepare for pairing in advance.
Page 89: Initial Pairing
Initial Pairing Perform initial pairing in the following situations: When pairing for the first time after purchasing the camera When pairing for the first time after updating the camera’s firmware Prepare for pairing (A11). Press the movie button or photo button to put the camera into pairing standby mode.
Page 90 Follow the on-screen instructions and when Connect to Camera the screen shown on the right is displayed, tap KeyMission 360_xxxxxxxx. “xxxxxxxx” varies depending on the camera. Camera name KeyMission 360_xxxxxxxx When a confirmation dialog for pairing is displayed, tap Pairing on the lower right of the screen (the button name varies depending on the model of the smart device).
Page 91: Re-Pairing
Re-pairing Perform re-pairing in the following situations: When pairing the same smart device again after unpairing using End pairing in the SnapBridge 360/170 app When pairing with a second smart device or more Prepare for pairing (A11). Press and hold down the movie button for about 7 seconds to put the camera into pairing standby mode.
Page 92 If pairing fails, the status lamps flash red six times at the same time. When a message indicating that pairing has failed is displayed on the screen, tap OK and repeat the procedure KeyMission 360 from step 1. Getting Started...
Page 93: Attaching The Silicone Jacket
We recommend attaching the silicone jacket to soften physical impacts to the camera. Attach by inserting the camera from the side of the silicone jacket so that the Nikon logos of the camera and silicone jacket overlap. If the Nikon logos do not overlap, the silicone jacket may appear in the images.
Page 94: The Lens Protector/Underwater Lens Protector
The Lens Protector/Underwater Lens Protector Make sure to attach the lens protectors or underwater lens protectors to protect the lens because they are made of glass. Lens protector: Used to protect the lens (attached to the camera at time of factory shipment). Although the camera can be used underwater because it is waterproof, captured images may be blurred.
Page 95 Notes About the Lens Protectors and Underwater Lens Protectors Be careful not to subject the protectors to physical impacts or rubbing. Doing so could cause scratches or damage. When you are not using the camera, insert it into a case made of soft cloth material with the lens protectors or underwater lens protectors attached.
Page 96: Using The Camera
Using the Camera Recording Movies or Shooting Still Images..............20 Selecting a Movie Mode.....................23 Playing Back Images......................25 Changing the Settings......................27 Using the Base Adapter and Base Mount ..............30 Using the Camera...
Page 97: Recording Movies Or Shooting Still Images
Recording Movies or Shooting Still Images Before shooting, check the orientation of the camera (the side with the Nikon logo is the front). Your hands will appear in images during hand-held photography because this camera captures 360° content. To reduce the appearance of hands, use the base adapter (A30) to stabilize the camera and shoot.
Page 98: Shooting With A Smart Device
Shooting with a Smart Device Pair the camera and the smart device (A11). Tap c Camera M Remote photography in the SnapBridge 360/170 app. When a confirmation dialog for the Wi-Fi connection is displayed, tap OK. For iOS, select the camera SSID under Settings > Wi-Fi to initiate a Wi-Fi connection (if prompted, enter a password;...
Page 99 Maximum Movie Recording Time The available recording time for a single movie depends on the remaining space in a memory card. The remaining recording time for a single movie is displayed on the shooting screen of the SnapBridge 360/170 app. The actual remaining recording time may vary depending on the movie content, subject movement, or type of memory card.
Page 100: Selecting A Movie Mode
Selecting a Movie Mode Select the desired type of movie to record by using Movie mode (A28) in the SnapBridge 360/170 app. Standard movie: Record normal movies. Superlapse movie: The camera records movies and saves them in fast motion (960/30p or 960/25p). Use to record a movie while moving the camera.
Page 101 Time-lapse movie: The camera can automatically capture still images at a specified interval to create time-lapse movies. When NTSC/PAL (A28) is set to NTSC, 300 images are captured. When set to PAL, 250 images are captured. Time required for shooting Type Interval time NTSC...
Page 102: Playing Back Images
Playing Back Images Playing Back Images Saved in the Camera Pair the camera and the smart device (A11). Tap c Camera M Download selected pictures in the SnapBridge 360/170 app. When a confirmation dialog for the Wi-Fi connection is displayed, tap OK. For iOS, select the camera SSID under Settings >...
Page 103: Playing Back Images Transferred To A Smart Device
Editing Images on a Computer If you transfer captured images to a computer, you can edit the images using KeyMission 360/170 Utility. See the KeyMission 360/170 Utility online help for more information. Using the Camera Playing Back Images...
Page 104: Changing The Settings
Changing the Settings Perform the following operations in the SnapBridge 360/170 app to change the camera settings. Pair the camera and smart device in advance (A11). c Camera M Camera settings Option Description Date and time Set the camera clock. Set the volume of sounds during operation.
Page 105 Option Description Configure the wireless network settings to connect Network menu the camera and a smart device. Set whether to automatically upload captured images to a smart device. Send while shooting Movies cannot be uploaded using Send while shooting. To transfer movies to a smart device, use the SnapBridge 360/170 app.
Page 106 Option Description Underwater Set to Yes when shooting underwater. Active Reduce the loss of details in highlights and shadows. D-Lighting Adjust white balance to suit the light source in order to make the colors in images match what you see with your eyes.
Page 107: Using The Base Adapter And Base Mount
Using the Base Adapter and Base Mount Attaching the base adapter to the camera allows you to use special accessories such as a base mount. To increase the adhesive strength, attach the base mount for 24 hours or longer before using the camera. Align the camera screw with the tripod socket of the camera (1), and tighten the screw knob (2).
Page 108 Adjust the camera angle. Loosen the plate lock (1), set the camera angle (2), and then tighten the lock (3). Make sure that there are no foreign substances on the surface to which the base mount will be attached. If there are foreign substances such as dust or water, remove them. Peel off the release liner from the back of the base mount, and firmly press the base mount so that the entire surface is attached.
Page 109 Base Mount The base mount is an accessory that is used to easily attach and detach a base adapter mounted with the camera. Attach the base mount to places where you want to mount the camera. Use the flat or curved type depending on the surface to which the base mount will be attached.
Page 110: Connecting The Camera To A Tv Or Computer
Connecting the Camera to a TV or Computer Utilizing Images ........................34 Viewing Images on a TV.....................35 Transferring Images to a Computer (KeyMission 360/170 Utility)......36 Connecting the Camera to a TV or Computer...
Page 111: Utilizing Images
You can transfer images and movies to a computer for viewing and editing. Connection method: Connect the camera to the computer’s USB port with the USB cable. Before connecting to a computer, install KeyMission 360/170 Utility on the computer. Notes About Connecting Cables to the Camera Micro-USB connector...
Page 112: Viewing Images On A Tv
Viewing Images on a TV Turn off the camera and connect it to the TV. Check the shape and direction of the plugs and do not insert or remove the plugs at an angle. HDMI micro connector (Type D) to HDMI jack Set the TV’s input to external input.
Page 113: Transferring Images To A Computer (Keymission 360/170 Utility)
Transferring Images to a Computer (KeyMission 360/170 Utility) Installing KeyMission 360/170 Utility KeyMission 360/170 Utility is free software that enables you to transfer images and movies to your computer for viewing and editing. You can also change the camera’s settings.
Page 114 Images saved in the camera are displayed. If the memory card contains a large number of images, it may take a while for KeyMission 360/170 Utility to start. Wait until KeyMission 360/170 Utility starts. Select the images that you want to transfer, and click x.
Page 115: Technical Notes
Technical Notes Notices............................39 Notes About Wireless Communication Functions ...........41 Caring for the Product ......................44 The Camera ........................44 The Battery ........................45 The Charging AC Adapter..................46 Memory Cards.......................47 Cleaning and Storage ......................48 Cleaning after Using the Camera Underwater..........48 Cleaning after Using the Camera in Conditions Other than Underwater...49 Storage ..........................49 Functions That Cannot Be Used Simultaneously When Shooting .....50 Error Messages ........................51...
Page 116: Notices
CAUTIONS Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corporation may void the user’s authority to operate the equipment. Interface Cables Use the interface cables sold or provided by Nikon for your equipment. Using other interface cables may exceed the limits of Class B Part 15 of the FCC rules.
Page 117 Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A. Tel: 631-547-4200...
Page 118: Notes About Wireless Communication Functions
(products purchased in the EU or EFTA can be used anywhere within the EU and EFTA). Nikon does not accept liability for use in other countries. Users who are unsure as to the original country of sale should consult with their local Nikon service center or Nikon-authorized service representative.
Page 119 Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. KeyMission 360, which is equipped with a TYPE1FJ (FCC ID:VPYLB1FJ / IC ID:772C- LB1FJ) Wireless LAN Module, has been tested and found to comply with FCC/IC...
Page 120 Notice for Customers in Singapore This device complies with radio-frequency regulations. Complies with IDA Standards DA103423 Technical Notes Notes About Wireless Communication Functions...
Page 121: Caring For The Product
Caring for the Product Observe the precautions described below in addition to the warnings in “For Your Safety” (Ax-xiii), “<Important> Notes About Shockproof, Waterproof, and Dustproof Performance and Condensation” (Axiv), and “Notes About Wireless Communication Functions” (A41) when using or storing the device. The Camera Do Not Apply Strong Impact to the Camera The product may malfunction if subjected to strong shock or vibration.
Page 122: The Battery
If you notice any abnormalities such as excessive heat, smoke, or an unusual smell coming from the battery, immediately discontinue use and consult your retailer or Nikon- authorized service representative. After removing the battery from the camera or optional battery charger, put the battery in a plastic bag, etc.
Page 123: The Charging Ac Adapter
Charging an Exhausted Battery Turning the camera on or off while an exhausted battery is inserted in the camera may result in reduced battery life. Charge the exhausted battery before use. Storing the Battery Always remove the battery from the camera or optional battery charger when it is not being used.
Page 124: Memory Cards
Memory Cards Precautions for Use Use only microSD, microSDHC, and microSDXC memory cards (A7). Be sure to follow the precautions described in the documentation included with the memory card. Do not put labels or stickers on memory cards. Formatting Do not format the memory card using a computer. The first time you insert a memory card that has been used in another device into this camera, be sure to format it with this camera.
Page 125: Cleaning And Storage
Cleaning and Storage Cleaning after Using the Camera Underwater Follow the procedure below to rinse the camera with fresh water within 60 minutes after using it underwater or at the beach. The underwater lens protectors are used here as an example.
Page 126: Cleaning After Using The Camera In Conditions Other Than Underwater
Cleaning after Using the Camera in Conditions Other than Underwater Use a blower or air duster to remove any dust or lint that adheres to the lenses, lens protectors, silicone jacket, camera body, special accessories, etc. To remove fingerprints or other stains, gently wipe the parts with a soft dry cloth.
Page 127: Functions That Cannot Be Used Simultaneously When Shooting
Functions That Cannot Be Used Simultaneously When Shooting Some functions cannot be used with other menu settings. Restricted function Setting Description When Superlapse movie is selected, Movie options is fixed at 960/30p (when set to NTSC) or 960/25p (when set to PAL). When Loop recording is set to 60 min, Movie options Movie mode...
Page 128: Error Messages
Error Messages Refer to the table below if an error message is displayed on the smart device screen. Display Cause/Solution Battery temperature is elevated. The The camera turns off automatically. Wait until the camera will turn off. camera or battery temperature has cooled before –...
Page 129 An error occurred in the camera’s internal circuitry. Turn the camera off, remove and reinsert the battery, System error and turn the camera on. If the error persists, contact your retailer or Nikon-authorized service representative. Technical Notes Error Messages...
Page 130: Troubleshooting
Troubleshooting If the camera fails to function as expected, check the list of common problems below before consulting your retailer or Nikon-authorized service representative. Camera Issues Problem Cause/Solution Wait for recording to end. If the problem persists, turn the camera off.
Page 131 Problem Cause/Solution The battery is exhausted. 8, 45 Out of memory. Insert a memory card with sufficient free space. The camera has run out of file numbers. Change the The camera beeps memory card, or format the memory card. three times. An error occurred while accessing the memory card.
Page 132 SnapBridge 360/170 App Issues Problem Cause/Solution Enable Bluetooth and Wi-Fi on the smart device. When – using NFC on an NFC-compatible Android device, enable NFC. The camera Turn off the camera. The camera cannot enter pairing cannot be paired. standby mode when the camera is on. Turn off the airplane mode switch on the camera.
Page 133 Problem Cause/Solution Randomly spaced The subject is dark and the shutter speed is too slow or ISO bright pixels (“noise”) – sensitivity is too high. appear in image. Adjust exposure compensation using c Camera M Camera The images are settings M Shooting options M Shooting options M too dark or too bright.
Page 134: File Names
File Names Images or movies are assigned file names as follows. File name: DSCN0001.JPG (1) Identifier DSCN: Movies, still images Assigned in ascending order, starting with “0001” and ending with (2) File number “9999.” Indicates file format. (3) Extension .JPG: Still images .MP4: Movies Technical Notes File Names...
Page 135: Accessories
Accessories MH-65P Battery Charger Battery Charger Charging time is about 2 hours and 30 minutes for a fully exhausted battery. EH-62F AC Adapter (connect as shown) AC Adapter Fully insert the power connector cable into the groove of the AC adapter before inserting the AC adapter into the battery chamber.
Page 136 AA-1A Base Adapter (A30) AA-5 Vented Helmet Strap Mount AA-6 Wrist Mount AA-7 Handlebar Mount AA-8 Chest Mount* AA-9 Surfboard Mount AA-10 Backpack Mount Clip* AA-11 Suction Cup Mount Technical Notes Accessories...
Page 137 AA-12 Base Mount Set AA-13 Wristband for Remote Controls (3 Flat + 3 Curved) (A30) AA-14A Lens Protector (A17) AA-15A Underwater Lens Protector (A17) CF-AA1 Silicone Jacket (A16) ML-L6 Remote Control (A61) MP-AA1 Handy Grip * The range blocked by the user becomes wider in images captured with this accessory attached. Availability may vary with country or region.
Page 138: Using The Remote Control (Available Separately)
Using the Remote Control (Available Separately) You can use the ML-L6 Remote Control to record movies and take pictures from a distance. You can also use it to turn on the camera. Parts and Functions of the Remote Control Battery-chamber cover Part Function Turns on the remote control when pressed, and turns it...
Page 139 Inserting the Battery in the Remote Control Insert a 3V CR2032 lithium battery. Use a coin (1) to turn the battery-chamber cover counterclockwise (2) and open Insert the battery with the positive side face up (3). Make sure that the battery is firmly inserted at the center of the battery chamber (4).
Page 140 Pairing the Camera and Remote Control Before using the remote control for the first time, it must be paired with the camera. * In this manual, “pairing” refers to the establishment of a Bluetooth connection between the camera and remote control. The camera can only be paired with one remote control at a time.
Page 141 Switching Between Smart Device and Remote Control The camera cannot be operated by both the remote control and a smart device at the same time. Follow the procedure below to switch from one to the other. Switching from Smart Device to Remote Control Switch the connection from a smart device to a paired remote control.
Page 142 Notes About Waterproof Performance of the Remote Control The remote control is rated equivalent to JIS/IEC waterproof class 7 (IPX7), and it is confirmed that water does not seep inside when soaked underwater at a depth of 1 m (3.2 ft) for up to 30 minutes. - The remote control cannot be used underwater.
Page 143: Specifications
Specifications Nikon KeyMission 360 Digital Camera Type Compact digital camera Number of effective 23.9 million (Image processing may reduce the pixels number of effective pixels.) Image sensor 1/2.3-in. type CMOS; approx. 21.14 million total pixels ×2 Lens NIKKOR lens ×2 Focal length 1.6 mm (equivalent to 8.2 mm lens in 35mm [135] format)
Page 144 Interface Micro-USB connector (Do not use any USB cable other than USB connector the included UC-E21 USB Cable.), Hi-Speed USB HDMI output HDMI micro connector (Type D) connector Wi-Fi (Wireless LAN) Standards IEEE 802.11b/g (standard wireless LAN protocol) Operating frequency 2412–2462 MHz (1–11 channels) Authentication Open system, WPA2-PSK...
Page 145 Battery life does not reflect the use of SnapBridge 360/170 and may vary with the conditions of use, including temperature and the interval between shots. The camera can be used up to a water depth of about 20 m (65 ft) when the lens protectors are attached.
Page 146 Dimensions (W × H × D) (excluding projections) Weight Approx. 22.6 g (0.8 oz) (including battery) Nikon will not be held liable for any errors this manual may contain. The appearance of this product and its specifications are subject to change without notice. Technical Notes...
Page 147 Corporation in the United States and/or other countries. ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Nikon Corporation is under license. Apple®, App Store®, the Apple logos, Mac, OS X, iPhone®, iPad®, iPod touch®...
Page 148 “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Page 149: Index
Index Symbols Y N-Mark ............2 KeyMission 360/170 Utility ..34, 36 AC adapter..........34, 58 Lamp ..............3 Accessories............58 Lens............2, 49, 66 Airplane mode switch......... 2 Lens protector..........17 Auto off.............. 10 Lens protector mounting mark..... 2 Li-ion rechargeable battery.....
Page 150 Underwater lens protector....17 USB cable .......... 8, 34, 36 Waterproofing packing ......2 Technical Notes Index...
Page 151 No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION. CT6K03(11) 6MQA1311-03...
Page 168 SB6K01(11) 6MQA4811-01 Wi-Fi Connections (iOS) Read this guide for information on using SnapBridge 360/170 for Wi-Fi connections on iOS devices. The Wi-Fi Prompt The Wi-Fi Prompt Why Is the Wi-Fi Prompt Displayed? Why Is the Wi-Fi Prompt Displayed? A Wi-Fi prompt will be displayed when SnapBridge The Wi-Fi prompt is displayed when: 360/170 requires a Wi-Fi connection.
Page 169 After confi rming that the camera is off , press Connection Issues Connection Issues and hold the movie button for about seven If you are unable to use remote photography or seconds to initiate pairing. download selected images even after pairing the Tap the camera name.
Page 170 Disconnect the HDMI cable or USB cable. Smart device Two types of apps are available: “SnapBridge” and “SnapBridge 360/170”. Use “SnapBridge 360/170” when pairing with the KeyMission 360. Do not pair from the Bluetooth setting screen of the smart device. Pairing Procedure (without NFC) 1 Make sure that the camera is off (the power-on lamp is off ).
Page 171 5 When the screen shown on the right is displayed, tap the camera name. Connect to Camera Camera name KeyMission 360_xxxxxxxx If pairing is successful, the screen shown on the right is displayed. Follow the on-screen Connect to Camera instructions. Connected to KeyMission 360_xxxxxxxx Pairing Procedure (with NFC) 1 Make sure that the camera is off (the power-on lamp is off ).
Page 172 Disconnect the HDMI cable or USB cable. Smart device Two types of apps are available: “SnapBridge” and “SnapBridge 360/170”. Use “SnapBridge 360/170” when pairing with the KeyMission 360. Do not pair from the Bluetooth setting screen of the smart device. Pairing Procedure 1 Make sure that the camera is off (the power-on lamp is off ).
Page 173 5 When the screen shown on the right is displayed, tap the camera name. Connect to Camera When the accessory selection screen is displayed, tap the camera name after the Bluetooth icon in top right corner of the smart device screen changes from white to grey. It may take a while before the camera name is displayed.

Nikon KeyMission 360 Quick Start Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Nikon KeyMission 360

Summary of Contents for Nikon KeyMission 360

Table of Contents
