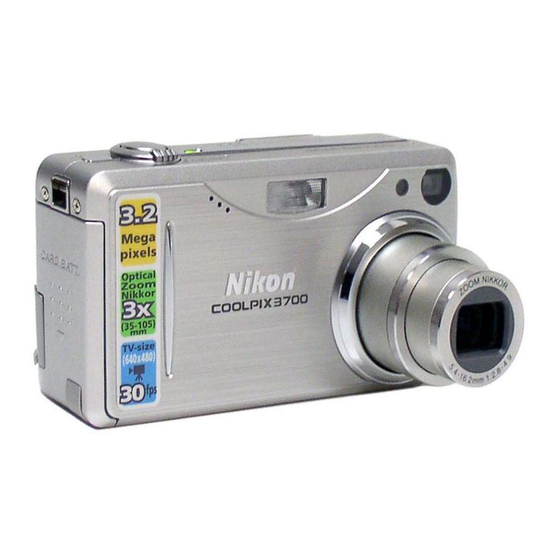

Nikon COOLPIX 3700 Repair Manual
Hide thumbs Also See for COOLPIX 3700:

Advertisement

Quick Links

Recycled paper
再生紙を使用しています
Printed in Japan Jan 2004
REPAIR MANUAL
NIKON CORPORATION
Tokyo, Japan
Copyright c 2004 by Nikon Corporation.
All Rights Reserved.
無断転載を禁ず !!
VAA18001-R.3622.A
作成承認印
配布許可印

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COOLPIX 3700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nikon COOLPIX 3700

  • Page 1 VAA18001-R.3622.A 作成承認印 配布許可印 REPAIR MANUAL NIKON CORPORATION Tokyo, Japan Copyright c 2004 by Nikon Corporation. All Rights Reserved. Recycled paper 無断転載を禁ず !! 再生紙を使用しています Printed in Japan Jan 2004...
  • Page 2: Table Of Contents

    VAA18001-R.3622.A CONTENTS SPECIFICATIONS M1-M2 DISASSEMBLING WARNING / Front cover, Rear cover Discharge Main Condenser, Battery holder unit, LCD unit CP-1 PCB / TB-1 PCB PW-1 / Battery holder Viewfinder unit, Unsolder Guide tube unit, Cam tube unit / 2nd lens group Cam tube, Shutter unit Light-shielding plate / Coupling gear, 1st lens group / Barrier Zoom motor unit / Coupling gear, 3rd lens group / Focus motor unit...
  • Page 3: Specifications

    VAA18001-R.3622.A Specifications Type E3500 digital camera Effective pixels 3.2 mega-pixels 1/2.7-inch high-density CCD; total pixels: 3.34 mega-pixels Image size (pixels) 2048×1536 (2048), 1600×1200 (1600), 1024×768 (1024), 640×480 (640) Lens 3×Zoom Nikkor Focal distance f = 5.4 to 16.2mm (35 ~ 105mm by conversion with 35mm-format) Aperture range F2.8 ~ F4.9 Lens construction...
  • Page 4 EH-62A AC adapter Approximate battery life 200 shots (EN-EL5)/250 shots (CP1) Measured at standard temperature (20°C/68°F) with fully-charged batteries under standard Nikon test conditions: zoom adjusted with each shot, flash used with every other shot, image mode set to Normal. Dimensions 95.5×50×31mm (W×H×D)
  • Page 5 VAA18001-R.3622.A DISASSEMBLY   WARNING 警告 ! Due to an internal high voltage area, take extra care not to get an 内部に高電圧部あり。カバーを外す時は感電に注意すること。 electric shock when detaching the covers. After removing the covers, be sure to discharge the main condenser カバーを外した後は、修理指針の指示に従ってメインコンデン according to the instructions of the repair manuals. サーの放電を必ず行うこと。...
  • Page 6 VAA18001-R.3622.A Discharge Main Condenser WARNING 警告 ! Due to an internal high voltage area, take extra care not to get an elec- 内部に高電圧部あり。カバーを外す時は感電に注意すること。 tric shock when detaching the covers. After removing the covers, be sure to discharge the main condenser カバーを外した後は、修理指針の指示に従ってメインコンデン...
  • Page 7: Cp-1 Pcb / Tb-1 Pcb

    VAA18001-R.3622.A CP-1 PCB / TB-1 PCB ・Take out 1 screw ( ① : M1.7×2.5). ・Take out 1 screw ( ② : M1.7×4). ・Remove the holder PW-1/CP-A ( ③ ). ・Remove the connector ( ④ ). ・Remove the connector ( ⑤ ). ・Remove 2 connectors ( ⑥...
  • Page 8: Pw-1 / Battery Holder

    VAA18001-R.3622.A PW-1 / Battery holder ・Take out 1 screw ( ① : M1.7×3). ・Take out 1 screw ( ② : M1.7×4). ・Remove the card holder ( ③ ). ・Remove the holder PW-1/rear cover ( ④ ). ・Take out 2 screws ( ⑤ : M1.7×2.5). ・Take out 1 screw ( ⑥...
  • Page 9: Viewfinder Unit, Unsolder D5

    VAA18001-R.3622.A Viewfinder unit #194-35014×3 Viewfinder unit #194-25014×2 #CD106NA-0042A Unsolder Shutter FPC #194-25014 Main FPC Solder - D5 ・ E3700 -...
  • Page 10: Cam Tube, Shutter Unit D7

    VAA18001-R.3622.A Guide tube unit #194-35014×4 Guide tube unit Master frame unit Cam tube unit / 2nd lens group 2nd lens group Guide tube Shutter FPC Cam tube unit - D6 ・ E3700 -...
  • Page 11 VAA18001-R.3622.A Cam tube 1st lens frame unit Cam tube 2 Cam tube 1 Shutter unit #CD106NA-0045A #194-25014×2 #CD106NA-0015A Shutter unit #CD106NA-0046A - D7 ・ E3700 -...
  • Page 12: Light-Shielding Plate / Coupling Gear, 1St Lens Group / Barrier D8

    VAA18001-R.3622.A Light-shielding plate / Coupling gear Input gear #CD106NA-0025A×2 Coupling gear 4 #CD106NA-0031A×2 VF coupling gear Guide tube Output gear Light-shielding plate Vibration-proof sheet 1st lens group / Barrier unit Note: When the 1st lens group is disassembled, it is necessary to make lens focusing adjustments for alignments from WIDE through TELE.
  • Page 13: Zoom Motor Unit / Coupling Gear, 3Rd Lens Group / Focus Motor Unit D9

    VAA18001-R.3622.A Zoom motor unit / Coupling gear Coupling gear 2 Coupling gear 3 Coupling gear 1 #194-35014×2 #CD106NA-0050A Zoom motor unit 3rd lens group / Focus motor unit Master frame #CD106NA-0030A Focus motor unit 3rd lens group #194-35014×3 - D9 ・ E3700 -...
  • Page 14 VAA18001-R.3622.A ASSEMBLY   3rd lens group / Focus motor unit ① Apply the grease (MZ-800S) on the guide shaft (CD106NA-0030A). ② Fit the 3rd lens driving guide in the focus motor shaft, and put the guide shaft through the 3rd lens group and focus motor unit as shown below.
  • Page 15: Barrier Unit A3

    VAA18001-R.3622.A Zoom motor unit #CD106NA-0034A #CD106NA-0036A #CD106NA-0035A #194-35014×2 #CD106NA-0050A Zoom motor unit 1st lens group / Barrier unit Note: When the 1st lens group is disassembled, make lens focusing adjustments for alignments from WIDE through TELE. ① Assemble the 1st lens group into the 1st lens frame. ②...
  • Page 16 VAA18001-R.3622.A 1st lens group / Barrier unit Apply adhesive on 1st lens group Adhesive:EDB0011 Position for attaching Barrier coupling plate and Coupling spring Barrier coupling Fig.1 plate Coupling spring Barrier coupling plate lever unit Fig.2 Position for attaching Barrier unit Intermediate position Fig.3 Position for attaching Front ring...
  • Page 17: Light-Shielding Plate / Coupling Gea, Shutter Unit A4

    VAA18001-R.3622.A Light-shielding plate / Coupling gear Input gear #CD106NA-0025A×2 Grease:MZ-800S Coupling gear 4 #CD106NA-0031A×2 VF coupling gear Grease: MZ-800S Adhesive: EDB0011 Guide tube Output gear Light-shielding plate Vibration-proof sheet Shutter unit Light leak-proof sheet #194-25014×2 CD106NA-0015A Shutter unit #CD106NA-0046A Position for attaching light leak-proof sheet Light-shielding sheet - A4 ・...
  • Page 18 VAA18001-R.3622.A Cam tube 1st lens frame unit Cam tube 2 Cam tube 1 Intermediate position Gear end position Position for attaching 1st frame unit Barrier coupling-plate lever unit 1st lens frame unit Shutter FPC Guide tube Shutter FPC Pass the shutter FPC through this hole. - A5 ・...
  • Page 19: Cam Tube Unit / 2Nd Lens Group A6

    VAA18001-R.3622.A Cam tube unit / 2nd lens group ① While handling the shutter FPC with care, assemble the cam tube unit as shown below. (In case of difficulty in assembling the cam tube unit, assemble it while turning the coupling gear on the guide tube.)...
  • Page 20: Guide Tube Unit, Soldering A7

    VAA18001-R.3622.A Guide tube unit ① Set the guide tube and cam tube 2 at the below position. ② Attach the guide tube unit on the master frame unit with 4 screws (#194-35014). ③ Check if the barrier is completely closed. Same level of height Guide tube Cam tube 2...
  • Page 21: Viewfinder Unit A8

    VAA18001-R.3622.A Viewfinder unit ① After turning the finder cam in the direction of the arrow (A) to the full up position, turn it back a little so that the 2nd cam groove and the pin-inserting hole are aligned. Then, insert the positioning pin (approx.
  • Page 22: Battery Holder A9

    VAA18001-R.3622.A PW-1 / Battery holder ・Make 3 solders ( ② ) on the PW-1 PCB ( ① ). ・Attach the trigger cover ( ③ ). ・Attach the battery back holder ( ④ ) and the holder CP-A/CP-B ( ⑤ ) to the PW-1 PCB ( ① ). ・Tighten 1 screw ( ⑥...
  • Page 23 VAA18001-R.3622.A Lens unit / CP-1 PCB / TB-1 PCB ・Assemble the aperture ( ② ), LPF ( ③ ) and spacer ( ④ ) into the lens unit ( ① ). ・Assemble the CCD unit ( ⑤ -1) of the CP-1 PCB ( ⑤ ) into the lens unit ( ① ). ・Tighten 2 screws ( ⑥...
  • Page 24 VAA18001-R.3622.A Battery holder unit, LCD unit ・Attach the battery front ( ① ). ・Attach the LCD holder ( ② ). ・Tighten 1 screw ( ③ : M1.7×2.5). ・Tighten 1 screw ( ④ : M1.7×4). ・Tighten 1 screw ( ⑤ : M1.7×3.5). ・Connect the FPC ( ⑥...
  • Page 25 VAA18001-R.3622.A Front cover, Rear cover ・ Connect the FPC ( ① ). ・ Attach the rear cover ( ② ). ・ Attach the front cover ( ③ ). ・ Tighten 2 screws ( ④ : M1.4×3). ・ Tighten 3 screws ( ⑤ : M1.7×2.5) . ・...
  • Page 26 VAA18001-R.3622.A ADJUSTMENT 1. Equipment IBM compatible PC/AT • AC adapter EH-62A • USB cable ( UC-E6)    2. Servicing tools Pattern box • • Color meter • Luminance meter • Siemens star chart • Calibration software (J65042)    •Adjustment collimator (J63090) or Adjustment firmware   ...
  • Page 27 VAA18001-R.3622.A 5. Installing USB driver If the USB driver is necessary, install Nikon View packed with the camera. 6. Pattern box Turn on the switch and wait for 30 minutes for aging to take place before using the pattern box. It is used after adjusting the color temperature to 3100 ±...
  • Page 28: Lens Unit / Cp-1 Pcb / Tb-1 Pcb A10

    VAA18001-R.3622.A 7. Adjustment items required at replacement of parts Lens Adj. AWB CCD Defect Lens Unit ○ ○ ○ × Optical filter ○ ○ ○ × ○ ○ ○ × CP-1 ○ ○ ○ ○ PW-1 × × × × ○...
  • Page 29 VAA18001-R.3622.A 9. Calibration software After starting the applicable calibration software, the following is displayed on the PC monitor. - A16 ・ E3700 -...
  • Page 30 VAA18001-R.3622.A 10. Lens adjustment ※ For the lens adjustment, choose either the infinity adjustment with the collimator or the 1.5-m adjustment with the adjustment firmware. (However, in case of 1.5-m adjustment, the focus may not be sharp at infinity.) 10-1. Infinity adjustment [Preparations] •...
  • Page 31 VAA18001-R.3622.A 10-2. 1.5-m Adjustment ※ For 1.5-m adjustment, it is necessary to (re)write the adjustment firmware, so before the adjustment, be sure to (re)write the firmware. Also, after completing the adjustment, do NOT forget to restore the original product firmware. Procedure for setting Adjustment firmware 1) Save the adjustment firmware and the product firmware in any folder.
  • Page 32 VAA18001-R.3622.A 11. AWB adjustment [Preparation] • Pattern Box(Color temperature: 3100±20K, Luminance: 900±20cd/m ) [Adjustment condition] • Set the pattern box and camera (lens front) so that the distance between them is "0cm."  [Note] Any disturbing light must not enter this field. [Adjustment method] 1.
  • Page 33 VAA18001-R.3622.A 12. CCD white point defect detect adjustment [Adjustment condition] • While the shutter in the lens is closed, read the defect of CCD pixels. Then, make the correction data and rewrite the data in the following procedure. Correct the upper 512 pixels of the defect in CCD pixels. [Adjustment method] •...
  • Page 34 2. Double-click on the DscCalDi130a. 3. Click on the Get button in the USB storage window and check the USB storage data. VID: NIKON PID: NIKON DSC E3700 Serial: Rev. : 1.00 4. Check the “Serial” in the above USB storage data. If the displayed value is different from the serial number printed on the base of the camera, enter the number on the base of the camera.
  • Page 35 VAA18001-R.3622.A - E1 ・ E3700 -...
  • Page 36 VAA18001-R.3622.A - E2 ・ E3700 -...
  • Page 37 VAA18001-R.3622.A - E3 ・ E3700 -...
  • Page 38 VAA18001-R.3622.A - E4 ・ E3700 -...
  • Page 39 VAA18001-R.3622.A - E5 ・ E3700 -...
  • Page 40 VAA18001-R.3622.A - E6 ・ E3700 -...
  • Page 41 VAA18001-R.3622.A - E7 ・ E3700 -...
  • Page 42: Overall Wiring E8

    VAA18001-R.3622.A 総合結線図 OVERALL WIRING ���� ������� ��������� ��� ������������� ����� ��� ��� ��� ��� �� ��� �� ��� �� ��� �� ��� ��� �� ��� ��� ��� �� ������� � �������� �������� ��� � ��� � ������������� ������������� ����� ����� ��������...
  • Page 43: Overall Block Diagram E9

    VAA18001-R.3622.A 総合ブロック図 OVERALL BLOCK DIAGRAM ��� ��������� ���������� ����� ����� ��� ������������ �������� ������������ ����� �������� �������� ���� ����� ����� ����� ����� ����� ����� ����� ����� � ����������� ����� ����������������� ���� ������������������ ���� ����� ����� ����� ������� ������ ������� ������� �����...
  • Page 44: Asic Block Diagram E10

    VAA18001-R.3622.A ASIC ブロック図 ASIC BLOCK DIAGRAM ����� ����� ���� ��� ��� ����� ������� ��� ���������� ����� ����� ������ ��������� ���� ��� ���� ���� ��������� ���������� ���� � ��� �������� ���� � ��� ��� ������� ��� ��� ��������� ��� ��� ������� ���...
  • Page 45: Ccd Block Diagram E11

    VAA18001-R.3622.A CCD ブロック図 CCD BLOCK DIAGRAM ��� ����� ���� ����� �� �� ����� �������� ����� �������� ������ ����� ������������� �� ���� �� �� ��� ������ ���� ���������� ��������� ����� ����� �� �� ����� ��������������� �������� ����������������������� ��������� ����� ���������������������������������� ������������������������������� ����...
  • Page 46 VAA18001-R.3622.A ������� レンズ駆動ブロック図 ����� ������� ����� ���������� ����� LENS DRIVE BLOCK DIAGRAM ��������� ����� ����� ����� ����� � ����� ���� ������ �� ������� � ������� ������������� � ����� ����� ������� ������������ � ������� ������������� � ������ �� ������ ������������� �� �����...
  • Page 47: Power Block Diagram E13

    VAA18001-R.3622.A POWER ブロック図 POWER BLOCK DIAGRAM ����������� ���� ����� ������� ����� ������� ���� ��� ���������� ���� �� ������� ����������� ��������� �� ��������� �� ����� ����� �� �������� �� �� ������� ���� ���� �� ����� ����������� �������� �� �������� �� � ���������...
  • Page 48: System Block Diagram E14

    VAA18001-R.3622.A SYSTEM ブロック図 SYSTEM BLOCK DIAGRAM ����� ����� ������ � ������� ��������� �� ��������� ��������� ���������� �� ������ �� ���� ����� �� ���� ���� �� �� � � � � ���� ������� ���� �� ���� � �� ����� ������ ������ �����...
  • Page 49 VAA18001-R.3622.A PW1 回路図 ( ストロボ回路図 ) PW1 CIRCUIT DIAGRAM ���������������� ������������� ��� ����� ���������� (STROBE CIRCUIT DIAGRAM) �������������������������������� ����� ����� ����� ���� ����� ���� ���� ��� ����� ������������������ ������������ ������������� ���� �������������������������� ����� ����� ���� ���������� ��� ����� ��� ���� ��������...
  • Page 50: Inspection Standard

    VAA18001-R.3622.A The contents of inspection standards and tools [1] Inspection standards ..........................R1 to R6 [2] Tools ................................. T1 to T3 - E3700 -...
  • Page 51 VAA18001-R.3622.A INSPECTION STANDARDS Item Criteria Applied tool(s) External view Gap/Difference in • General components height Gap: 0.3mm or less Difference in height: 0.15mm or less • When the battery cover is closed: Gap: 0.5mm or less (Difference between right and left must not be noticeable.) Outside and inside •...
  • Page 52 VAA18001-R.3622.A Item Criteria Applied tool(s) Lens capacity Focal length Wide-end position (Compelling Focal length ∞ 5.4 mm measuring instrument Tele-end position (Compelling Lens drive tool ∞ 16.2 mm +1% Open aperture F No. Wide-end position (Compelling Focal length ∞ F2.8 +7.8% measuring instrument...
  • Page 53 VAA18001-R.3622.A Item Criteria Applied tool(s) Shooting with a speed light Light adjustment • Tele-end: 0.4 ~ 1.7m Standard reflection accuracy • Wide-end: 0.4 ~ 3.0m plate • Macro-wide-end 0.4 ~ 3.0 m In the above range, ± 0.5 Ev or less (Photography mode: AUTO , •...
  • Page 54 VAA18001-R.3622.A Item Criteria Applied tool(s) Gradation/luminance [Histogram's gray average value] Gray scale chart level • Black: 11 ± 5 Gray: 137 ± 10 PHOTOSHOP White: 230 ± 15 • Photography mode: AUTO, Image quality mode: HIGH • Wide-end position, aperture "open", distance: 0.3m or more •...
  • Page 55 VAA18001-R.3622.A Item Criteria Applied tool(s) Quality of image Reproduction of color Color bar chart B R G B 215±20 215±20 215±20 W PHOTOSHOP 215±20 220±20 70±15 Ye 215±20 30±15 40±15 R • Photography mode: AUTO, Image quality mode; HIGH • Equip the 5100K viewer with the chart and shoot an object in the full range of angle of view.
  • Page 56 VAA18001-R.3622.A Item Criteria Applied tool(s) LCD and others Monitor LCD View • There must be no shading in the LCD display range. Visual observation • Inclination between the monitor and the monitor frame must not be outstanding. Visual observation Visual field ratio •...
  • Page 57: Tool List

    VAA18001-R.3622.A [2] 工具一覧表  Tool List ※:新規工具 ※:New tool 名  称 備 考 工具番号 Name Remarks Tool No. J63080 パターンボックス LV-1450DC 共通(E4300, E3500, Pattern Box LV-1450DC E3100, E2100, E5400, E3700) Common J63080A 交換用ハロゲンランプ(LV-1450DC 用) Spare Harogen Lamp (For LV-1450DC) LV-1450DC Exclusive J63081 カラーメータ(ミノルタカラーメータⅢ F) Color Meter(Minolta Color meter Ⅲ F) 共通...
  • Page 58 VAA18001-R.3622.A ※:新規工具 ※:New tool 名  称 備 考 工具番号 Name Remarks Tool No. J65042 キャリブレーションソフト 共通 (E995,E775,E885 Calibration Software E5000, E2500, E4500 E5700, E4300, E3500 E3100, E2100, E5400 E3700) Common(E995,E775,E885 E5000, E2500, E4500 E5700, E4300, E3500 E3100, E2100, E5400 E3700) 共通 ※ J63090 コリメータ(C-DSC)...
  • Page 59 VAA18001-R.3622.A - T3 ・ E3700 -...
