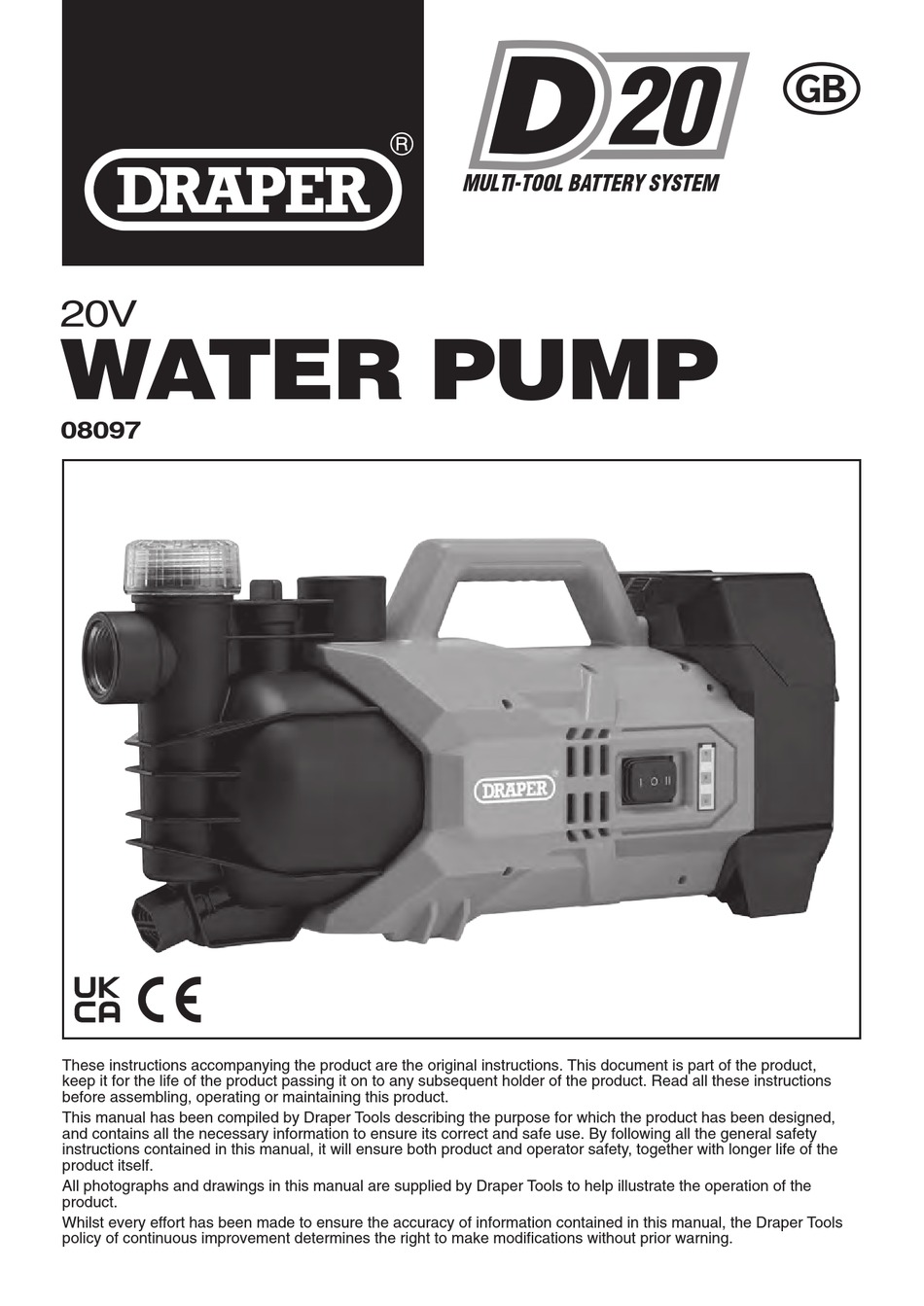

20V
WATER PUMP
08097
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions
before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
MULTI-TOOL BATTERY SYSTEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D20G/WP and is the answer not in the manual?

Questions and answers

Related Manuals for Draper D20G/WP

Summary of Contents for Draper D20G/WP

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT ......... 2 COPYRIGHT © NOTICE ....................2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................

  • Page 4: Warranty 3.1 Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    This product is suitable for enthusiasts and tradespersons alike. Any application other than that it was intended for is considered misuse. SPECIFICATION Stock No..........................08097 Part No..........................D20G/WP Motor: Rated voltage ....................... 20V Rated power ........................180W Max. pressure ........................... 2.2bar Max.

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 7: Specific Safety Instructions For Pump Use

    HEALTH AND SAFETY INFORMATION f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 8: Residual Risk

    Draper website for more information or to find your local Draper stockist). – Do not charge any other batteries with Draper chargers. Any other application is considered misuse. – Do not attempt to charge battery packs that are too hot (over 30ºC) or too cold (under 5ºC), if these conditions apply set the battery pack aside to “normalise”...

  • Page 9: Connection To The Power Supply - Charger (Not Supplied)

    HEALTH AND SAFETY INFORMATION – Do not charge any other manufacturer’s battery packs using Draper chargers. Any other application is considered misuse. – The battery must be removed from the appliance before it is recycled. – The charger must be disconnected from the supply mains when removing the battery.

  • Page 10: Technical Description

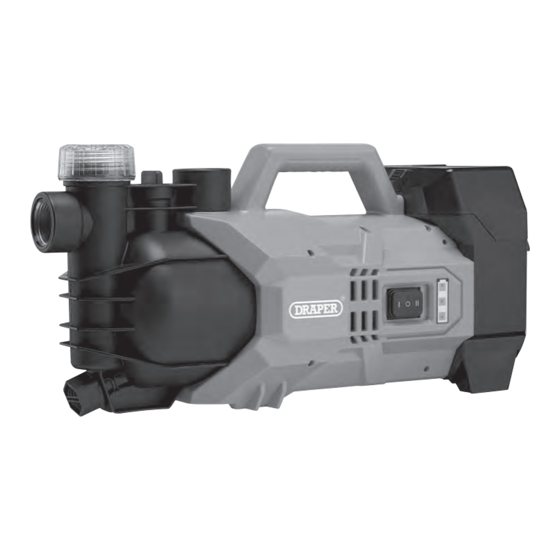

    TECHNICAL DESCRIPTION IDENTIFICATION (12) (11) (10) (1) Water delivery outlet connection. (9) Battery pack housing. (2) Priming inlet. (10) Battery pack housing lid. (3) Filter housing cap. (11) Battery pack housing lid catch. (4) Inlet connection. (12) Carry handle. (5) Drain outlet valve. (6) Pump motor housing.

  • Page 11: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 12: Assembling The Water Pump

    ASSEMBLING THE WATER PUMP CONNECTING THE HOSES – (15) FIGS. 1 – 4 (14) Note: Remove the battery pack from the water pump before carrying out any adjustments, servicing or maintenance. − Connect the 1 1⁄ 4" Suction hose connector. (14) into the suction inlet (4).

  • Page 13: Battery Pack (Not Supplied)

    The above and following photographs show Draper To charge the battery pack (17), it must first be D20 4Ah battery pack (Stock No. 55858) and Draper removed from the tool. D20 ‘Fast’ battery charger (Stock No. 55913) To release the battery pack: –...

  • Page 14: Battery Pack Protection Features

    BATTERY PACK (NOT SUPPLIED) charger is malfunctioning. Allow battery/charger to normalise and try again. If a fault remains after trying this then contact Draper Tools. (17.2) BATTERY PACK PROTECTION FEATURES Overcharging protection: This feature that ensures that the battery pack can never be overcharged.

  • Page 15: Operation And Use

    ON/OFF/pump speed selection rocker switch (7): | Normal pumping mode: • Max. height/depth: 22M • Max. flow rate: 2800L/h Typical running time using a Draper D20 FIG. 4Ah battery pack: 27 mins. || ‘Eco’ pumping mode: • Max. height/depth: 15M •...

  • Page 16: Maintenance And Troubleshooting

    1. Replace/reset 13 amp suddenly stops. time delay fuse or circuit breaker. 2. Battery pack damaged. 2. Replace the battery pack.. 3. Other defects. 3. Contact your local Draper Tools service agent, or Draper Tools for fault finding/repair. – 16 –...
  • Page 17 If problem persists return the pump to your local Draper Tools service agent, or Draper Tools for fault finding/ repair. 2. Intervention of the thermal 2. Make sure the fluid being overload switch.

  • Page 18: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 19: Explanation Of Symbols

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Rated voltage. Read the instruction manual. Class II construction Wear face mask and safety (Double insulated). glasses. WEEE – Waste Electrical & Electronic Equipment. Wear ear defenders. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
