Power up the Gateway
Check power requirements in the table below:
Power Requirement for QuickServer External Gateway
QuickServer Family
FS-QS-3X10-XXXX (Typical)
NOTE: These values are 'nominal' and a safety margin should be added to the power supply of the host system.
A safety margin of 25% is recommended.

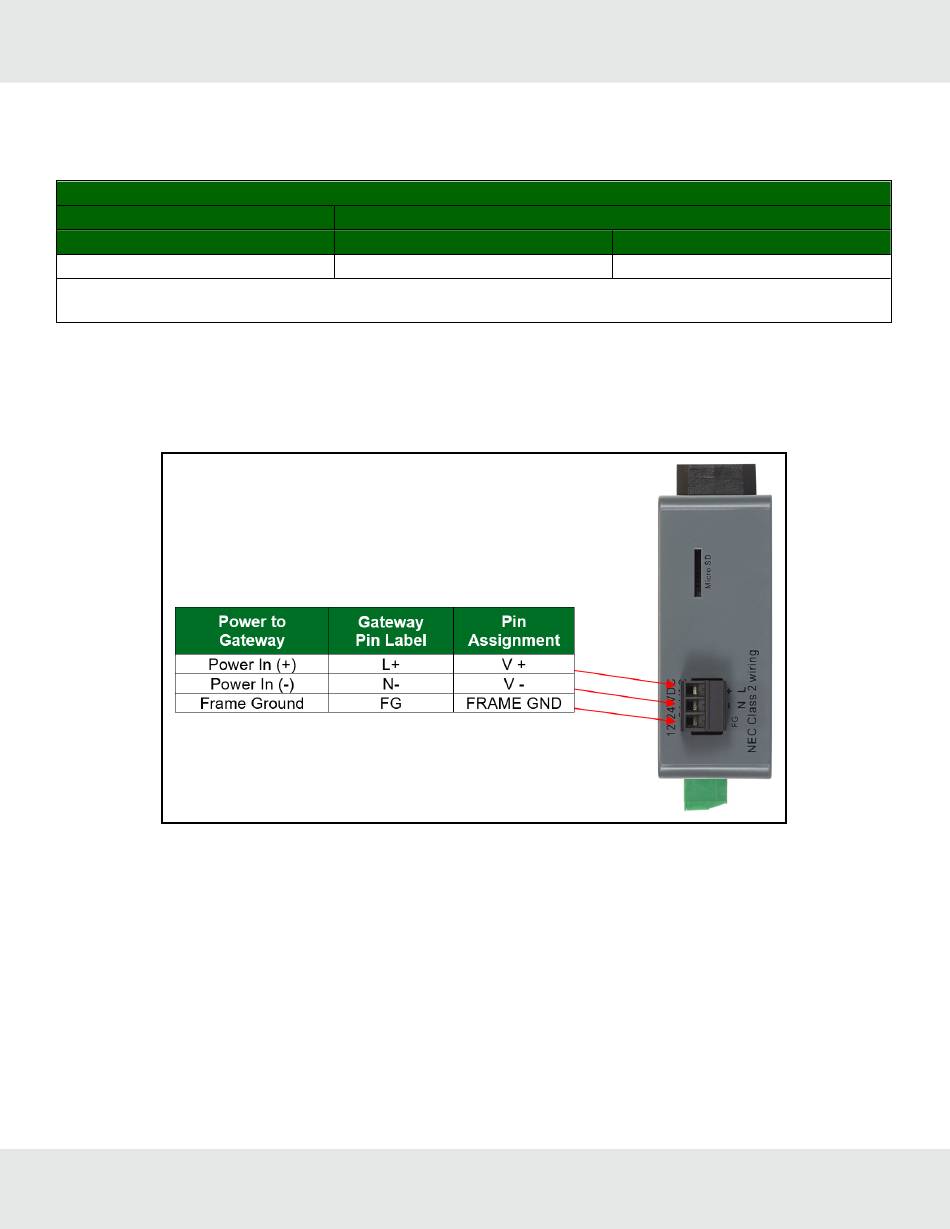

Apply power to the QuickServer as shown below. Ensure that the power supply used complies with the specifications
provided in Section
10.3
Specifications.
•
The gateway accepts 9-30VDC or 24VAC on pins L+ and N-.
•
Frame GND should be connected.
12
Current Draw Type
12VDC
250mA
QuickServer FS-QS-3X10-F Start-up Guide
24VDC/AC
125mA
