7.3

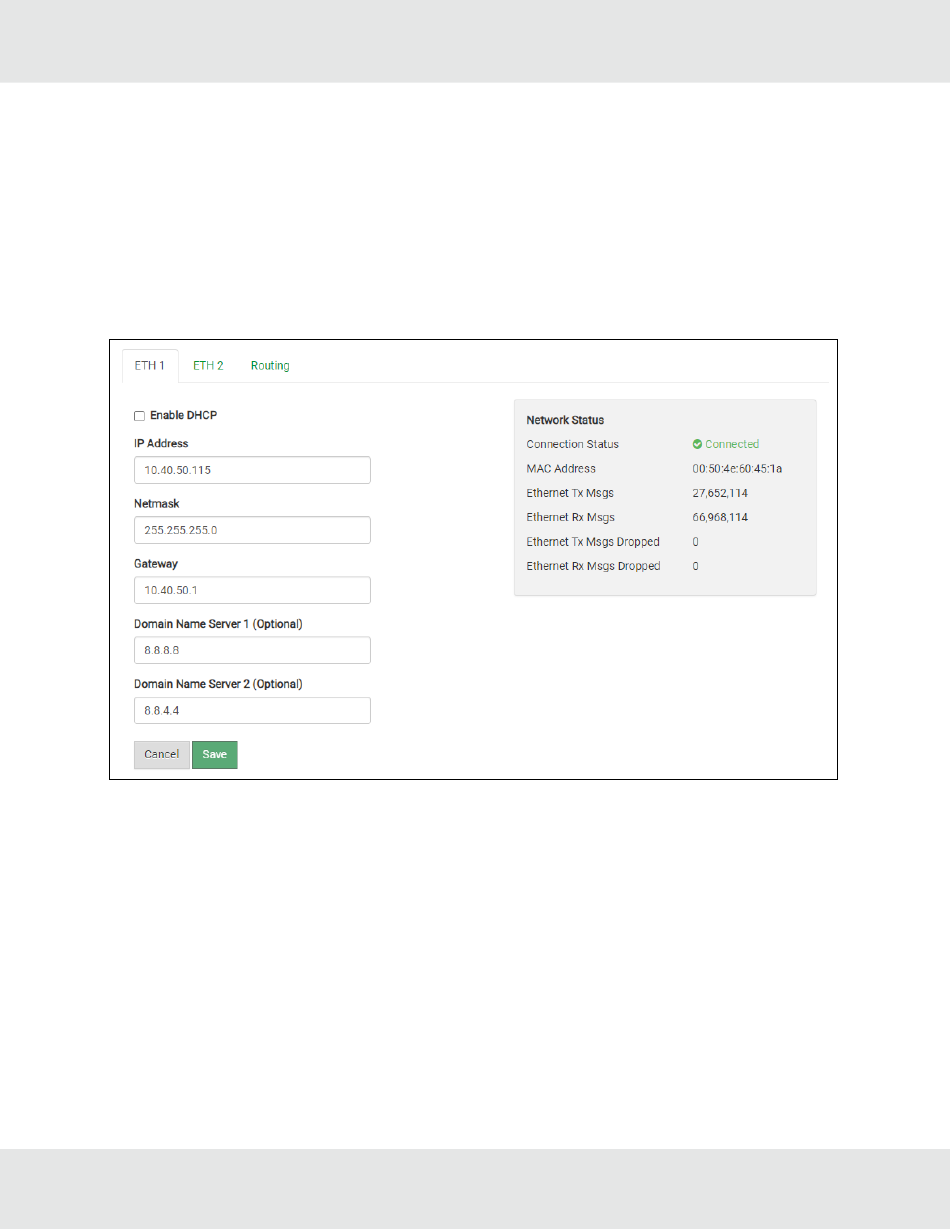

Ethernet 1 and Ethernet 2 Network Settings

Enable DHCP to automatically assign IP Settings or modify the IP Settings manually as needed, via these fields: IP
Address, Netmask, Gateway, and Domain Name Server1/2.
NOTE:    If connected to a router, set the Gateway to the same IP Address as the router.
Click Save to record and activate the new IP Address.
Connect the FieldServer to the local network or router.
NOTE:    If the webpage was open in a browser, the browser will need to be pointed to the new IP Address of the
FieldServer before the webpage will be accessible again.
QuickServer FS-QS-3X10-F Start-up Guide
21
