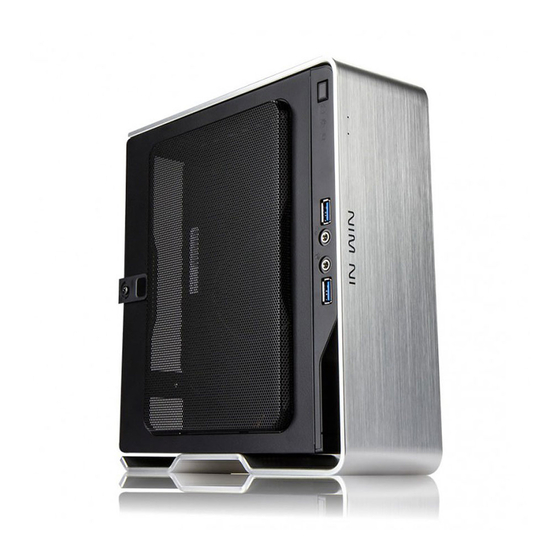

- Page 3 Product Story Product Story Luxe Little Legend The Chopin MAX is an ultra slim form factor case designed with the intention of being a multifaceted PC case with a small footprint. Uncompromised quality and functionality developed in a 3.3-liter chassis. Chopin MAX...
-
Page 4: Specifications
CPU Heatsink Height Up to 54 mm Internal Drive Bays 2 x 2.5" (H 9.5 mm Max.) Power Supply InWin 200W 80 PLUS Gold PSU Included Compatibility Product Dimensions 217 x 84 x 244 mm (L x W x H) 8.54 x 3.3 x 9.6"... - Page 5 2.05 x 1. x 6.7" Warranty 3 Years Connectors 20+4 Pin Motherboard 8 (4+4) Pin CPU 8 (6+2) Pin PCI-E 4 Pin Peripheral SATA (90 Degree) Floppy * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions.
-
Page 6: Package Contents
Package Contents Package Contents Accessories Bag Hexagon Head Screw 2.5” SSD Screws Side Panel Mylar SATA Power Y Splitter Cable (Red, Green, Blue, Orange) - Page 7 Case Structure Case Structure 2.5" Drive Bay Motherboard Mounting Area 200W 80 PLUS Gold PSU Included Power Button USB 3.2 Gen 2x2 Type-C USB 3.2 Gen 1 Audio Ports (Earphone and Microphone) Power Indicator HDD Indicator M.2 SSD Installation Cut-Out Hole...
- Page 8 Connection Cables Connection Cables I/O Wires Black(P_LED) 1 2 Black (HDD) Black(P_LED) 3 4 Black (HDD) Black(P_SW) 5 6 NC Black(P_SW) 7 8 NC Key 9 10 NC HD Audio Header PORT2_L BLUE PURPLE PORT2_R YELLOW WHITE PORT1_R PORT1_L BLACK USB 3.2 Gen 1 USB 3.2 Gen 2x2 Type-C...
- Page 9 7. For more technical support, please visit the InWin Forum https://forum.in-win.com/ ■ Warranty 1. For more detailed warranty information, please visit the InWin retail website www.in-win.com 2. The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
