Summary of Contents for InWin 905
- Page 1 User Manual...

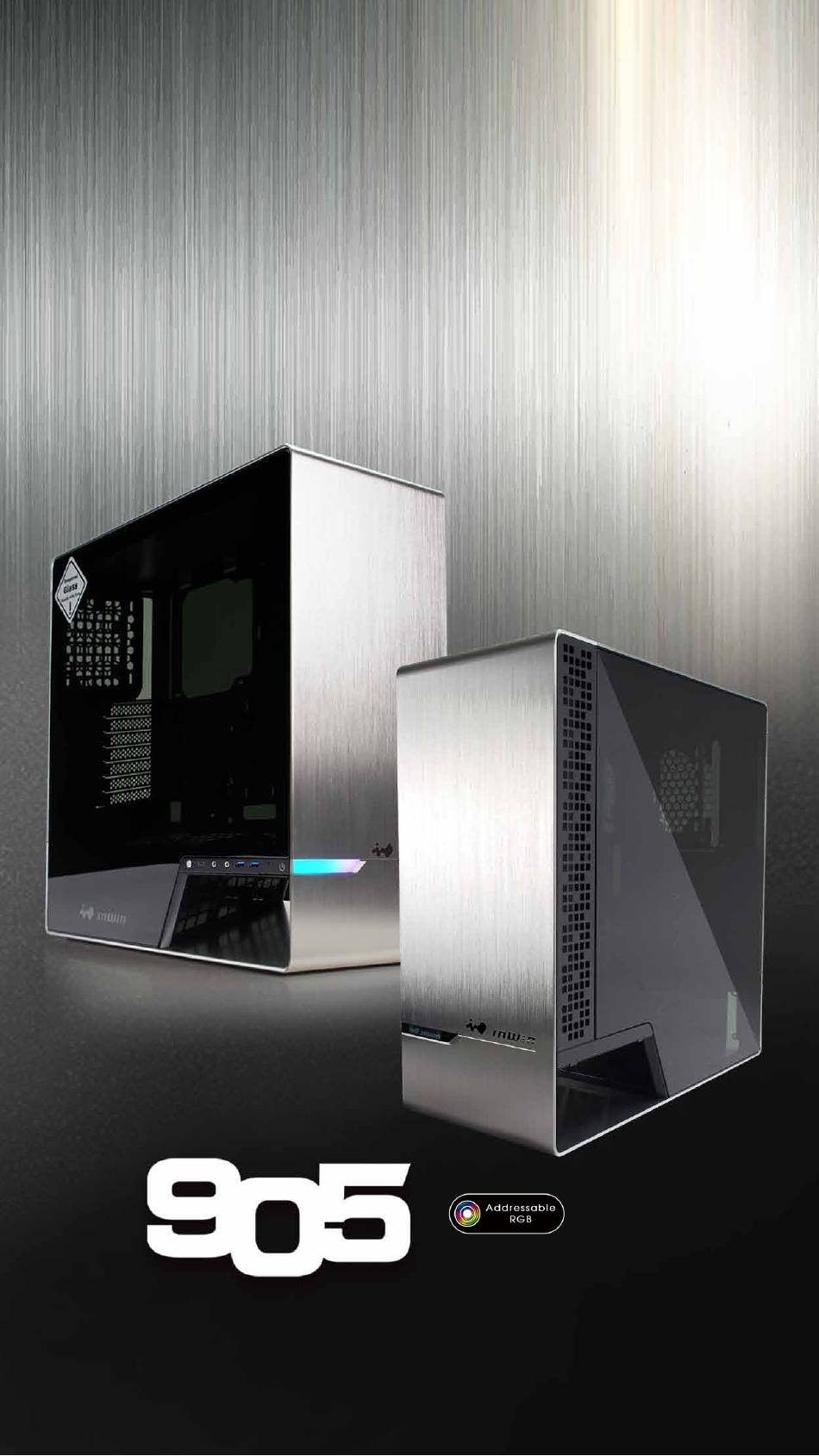

- Page 2 Product Story The InWin 905 joins the 9-series lineup of elegant aluminium and tempered glass cases. It can support up to an E-ATX motherboard despite being an ATX model. Its stylish design can support multiple liquid cooling options for optimal cooling performance...
-
Page 3: Specifications
Specifications Model IW-905-SILADD Part Number IW-905-SILOLED Silver (Addressable RGB) Colors Silver (OLED) Case Type Mid Tower Materials Aluminium, Tempered Glass, SECC M/B Compatibility 12” x 13” E-ATX, ATX, Micro-ATX, Mini-ITX Expansion Slots PCI-E x 7 VGA Card Length: 330mm Maximum Compatibility CPU Heatsink Height: 160mm USB 3.1 Gen 2 Type-C x 1... -
Page 4: Package Contents
Package Contents 1. 905 Chassis 2. QR Code Card... - Page 5 Package Contents 3. Accessories Bag a. Motherboard Stand-offs x7 b. Motherboard Stand-off Socket x1 c. Hexagon Head Screws x18 d. 2.5" SSD Screws x18 e. 3.5” HDD Screws x6 f. PSU Screws x6 g. 3-PIN ADD Header x1 h.Water-Cooling System Washers x24 i.
- Page 6 Case Structure Power Button USB 3.1 Gen 2 Type-C Port LED Mode/OLED Screen HDD Indicator Control Button USB 3.0 Ports Fan Dust Filter Audio Ports Tempered Glass Side Panel (Earphone and Microphone)
- Page 7 Case Structure 2.5” Drive Bay Power Supply Mounting Area 3.5”/ 2.5” Drive Bay Shock-Proof Stand...
- Page 8 Case Structure Motherboard Mounting Area Front Fan/ Radiator Mounting Area PCI-E Expansion Slots Rear Fan/ Radiator Mounting Area 15 Extra PCI-E Supporting Mounting Hole 18 Bottom Fan/ Radiator Mounting Area...
- Page 9 Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product. 1. Opening the Chassis To remove the tempered glass side panel, simply press the quick-release buttons at the rear of the chassis.
- Page 10 Installation Guide 3. Motherboard Installation Parts Required: Motherboard Stand-offs, Motherboard Stand-off Socket, Hexagon Head Screws 4. Expansion Card Installation Parts Required: Hexagon Head Screws, Graphics Card Holder After the user installs the graphics card, use the graphics card holder to support it.
- Page 11 Installation Guide 5. I/O Wires Installation POWER SW H.D.D. LED POWER LED POWER LED POWER SW POWER LED POWER SW H.D.D. LED HD Audio Header USB3.0 Connector...
- Page 12 Installation Guide LED Display Ensure the edge of the PSU connector is properly aligned with the edge of the LED light connector. USB-Strip 3-Pin ADD Header Please plug in USB port on motherboard Please connect the 3-Pin ADD Header with ADD supported Fan cables.
- Page 13 Installation Guide 6-2. The Instructions of Type-C Cable If your motherboard supports Type-C, please connect the Type-C connector with the header directly on the motherboard. Type-C Cable...
- Page 14 Installation Guide 7-1. 2.5” Drive Bays Installation Parts Required: 2.5” HDD Screws 7-2. 3.5” Drive Bays Installation Parts Required: 3.5” HDD Screws...
- Page 15 Installation Guide 8. Fan / Liquid Cooling Radiator Installation Parts Required: Water-Cooling System Washers Fan Compatibility List 120mm Front Rear Bottom Note* There are two installation options: 1. 1 x 120mm front fan & 3 x 120mm bottom fan 2. 2 x 120mm front fan & 2 x 120mm bottom fan 9.
- Page 16 ARGB Lighting Modes When the computer turns on, the 905 system will lead users into two lighting modes. (The lighting modes depend on the features of the motherboard.) This allows users to switch between: 1. InWin LED (Default Mode) The InWin LED mode comes with 17 distinct lighting effects. If your motherboard doesn’t feature ARGB headers, the lighting will be placed on InWin LED mode.
-
Page 17: Lighting Control
Multicolor Note* The white featured in the InWin LED mode will be displayed as RGB white instead of pure white. 3. The operation will be considered complete and saved if there is no activity for over 5 seconds. If you want to change the light effects again, please hold the button for 3 seconds and then return to the InWin LED mode in order to switch to other light effects. -
Page 18: Warranty
7. Please remove all internal devices before shipping or moving. (Including power supply, hard drives, motherboard, CPU, etc) ■ Warranty * For more detailed warranty information, please visit the InWin retail website at www.in-win.com. * The actual product is subject to change without prior notice. - Page 19 Copyright © 2019 In Win Development Inc. All Rights Reserved.
