8.

OPERATION

8.1. POWER SWITCH
The power switch ( ) has 2 positions:
9
( )
: Equipment on
: Equipment off
8.2. FITTING THE PORTAFILTER
It is essential that the portafilter is perfectly
adjusted to achieve a consistent and level
tamping.
Make sure that the diameter of your
portafilter matches that of your Cube Tamp's
coffee tamp.
Permitted height of the portafilter:
Minimum: 26,80 mm (1,055 in)
Maximum: 41,05 mm (1,616 in)
14
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 01/09/2022 | K08021H09
To adjust the support height:
Make sure the power switch (
OFF position.
Loosen the locking wheel (
counterclockwise with the supplied tool.
Fig. 1
Turn the adjustment wheel (
to lower the support, counterclockwise
to raise it. Adjust the fork to the optimum
height for the portafilter as near to the top
as possible. Fig. 2
While blocking with your fingers any
movement of the adjusting wheel (
tighten the locking wheel (
using the supplied tool. Fig. 3

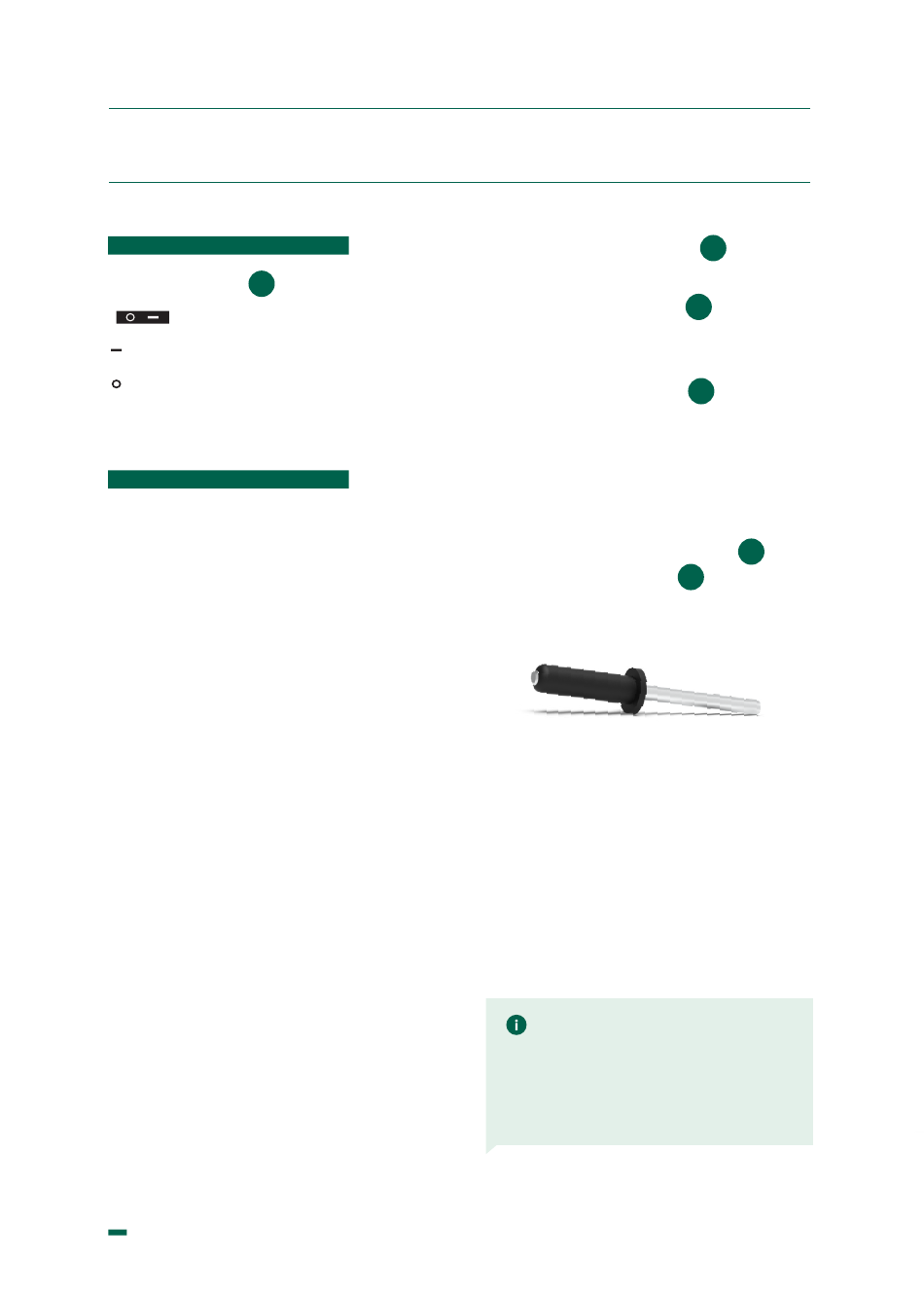

Supplied tool
NOTE: The manufacturer
reserves the right to vary the
components of the machine,
according to the requirements
of each market, as well as
technological advances.
) is in the
9
)
10
) clockwise
8
),
8
) clockwise
10
