8.
OPERATION
8.3. USE
The Cube Tamp is factory calibrated to a
force of 20 kg.
If you want to save another default value
to appear upon start up, turn on the main
switch ( ) and press the + button
9
( ) while the Cube logo appears on
3
the display during initialization. When the
Cube logo blinks, increase or decrease the
Kg using the - ( ) and + (
2
and confirm the selection with the CLEAN
( ) button.
4
1.
Turn on the power switch (
2.
Insert the portafilter into the support
( ) until it reaches the bottom. Its
7
presence will be detected automatically
and the coffee tamp will lower until it
exerts the desired pressure
3.
When the message
screen ( ) you can remove the
1

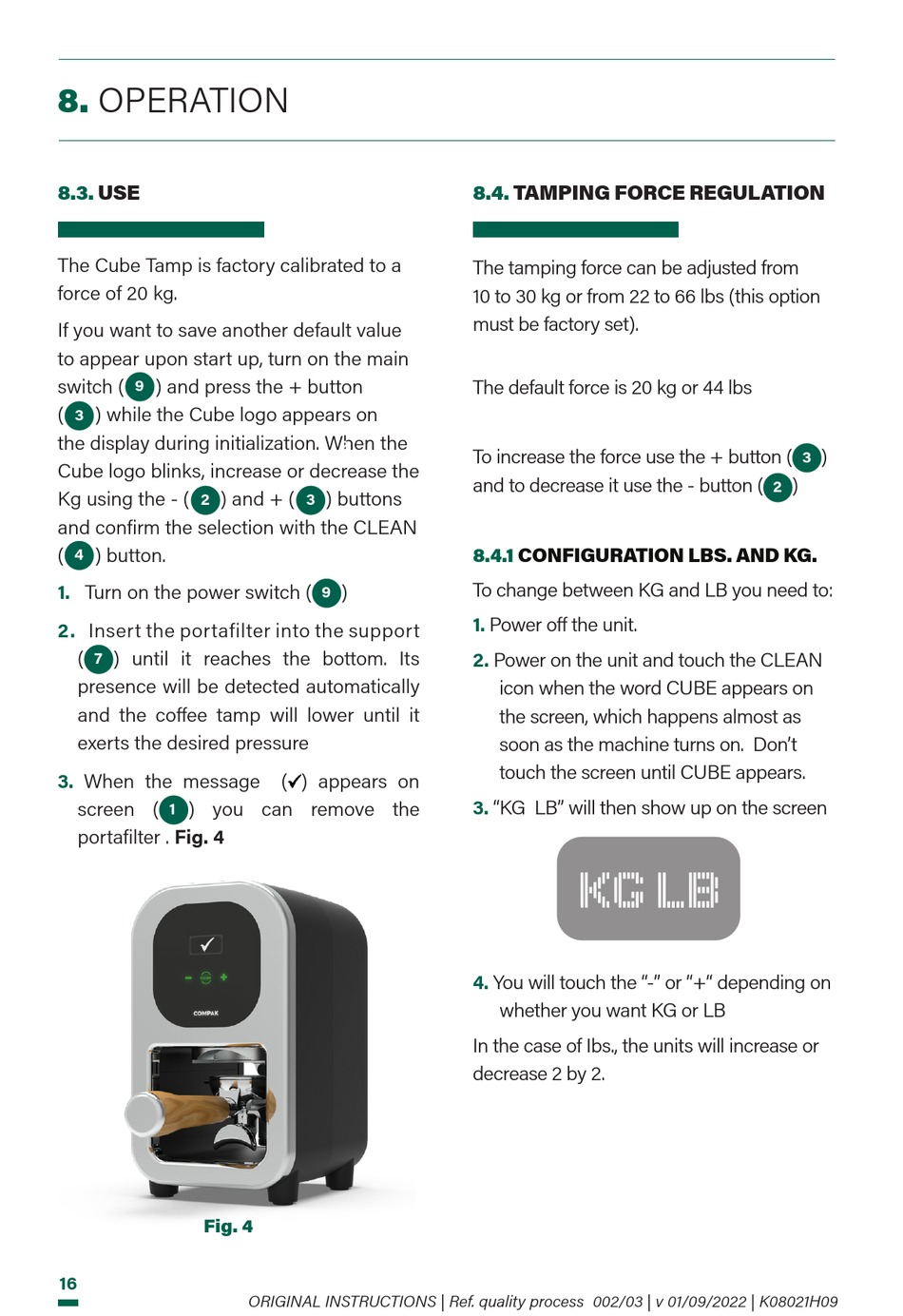

portafilter . Fig. 4
Fig. 4
16
2
) buttons
3
)
9
( ) appears on
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v 01/09/2022 | K08021H09
8.4. TAMPING FORCE REGULATION
The tamping force can be adjusted from
10 to 30 kg or from 22 to 66 lbs (this option
must be factory set).
The default force is 20 kg or 44 lbs
To increase the force use the + button (
and to decrease it use the - button (
8.4.1 CONFIGURATION LBS. AND KG.
To change between KG and LB you need to:
1. Power off the unit.
2. Power on the unit and touch the CLEAN
icon when the word CUBE appears on
the screen, which happens almost as
soon as the machine turns on. Don't
touch the screen until CUBE appears.
3. "KG LB" will then show up on the screen
KG LB
4. You will touch the "-" or "+" depending on
whether you want KG or LB
In the case of Ibs., the units will increase or
decrease 2 by 2.
)
