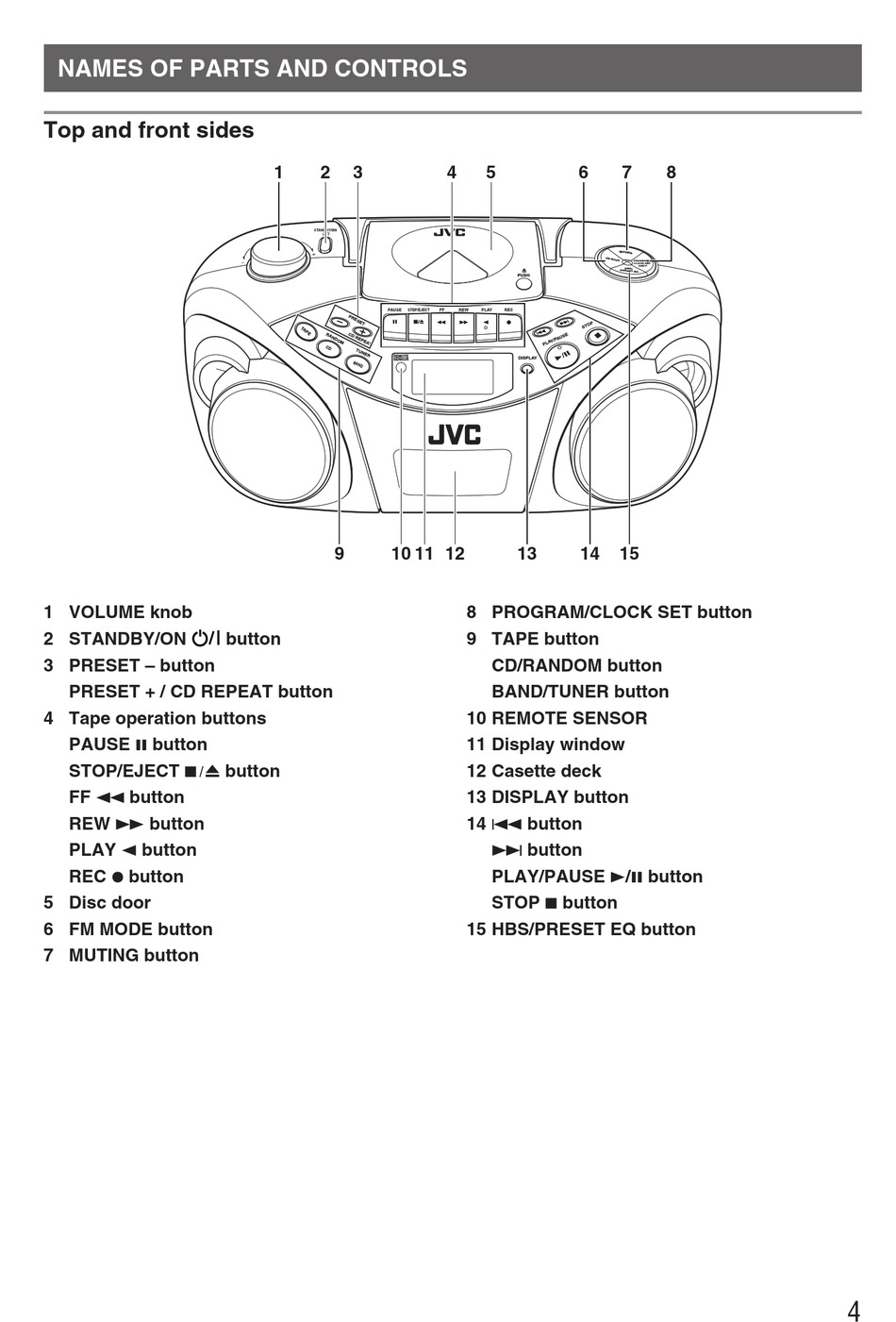

NAMES OF PARTS AND CONTROLS

Top and front sides
1 VOLUME knob
2 STANDBY/ON
3 PRESET – button
PRESET + / CD REPEAT button
4 Tape operation buttons
PAUSE 8 button
STOP/EJECT § button
FF 1 button
REW ¡ button
PLAY 2 button
REC ¶ button
5 Disc door
6 FM MODE button
7 MUTING button
1 2 3
REMOTE
SENSOR
9 10
button
4 5 6
PUSH
DISPLAY
11 12 13 14
8 PROGRAM/CLOCK SET button
9 TAPE button
CD/RANDOM button
BAND/TUNER button
10 REMOTE SENSOR
11 Display window
12 Casette deck
13 DISPLAY button
14 4 button
¢ button
PLAY/PAUSE 3/8 button
STOP 7 button
15 HBS/PRESET EQ button
