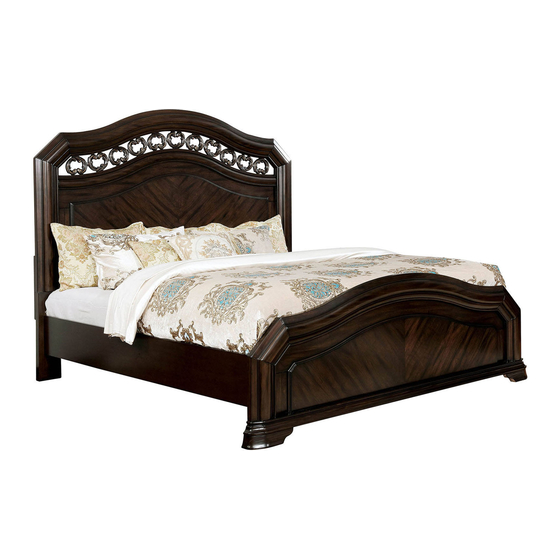

MODEL #
CM7751CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Calliope CM7751CK
Summary of Contents for Furniture of America Calliope CM7751CK

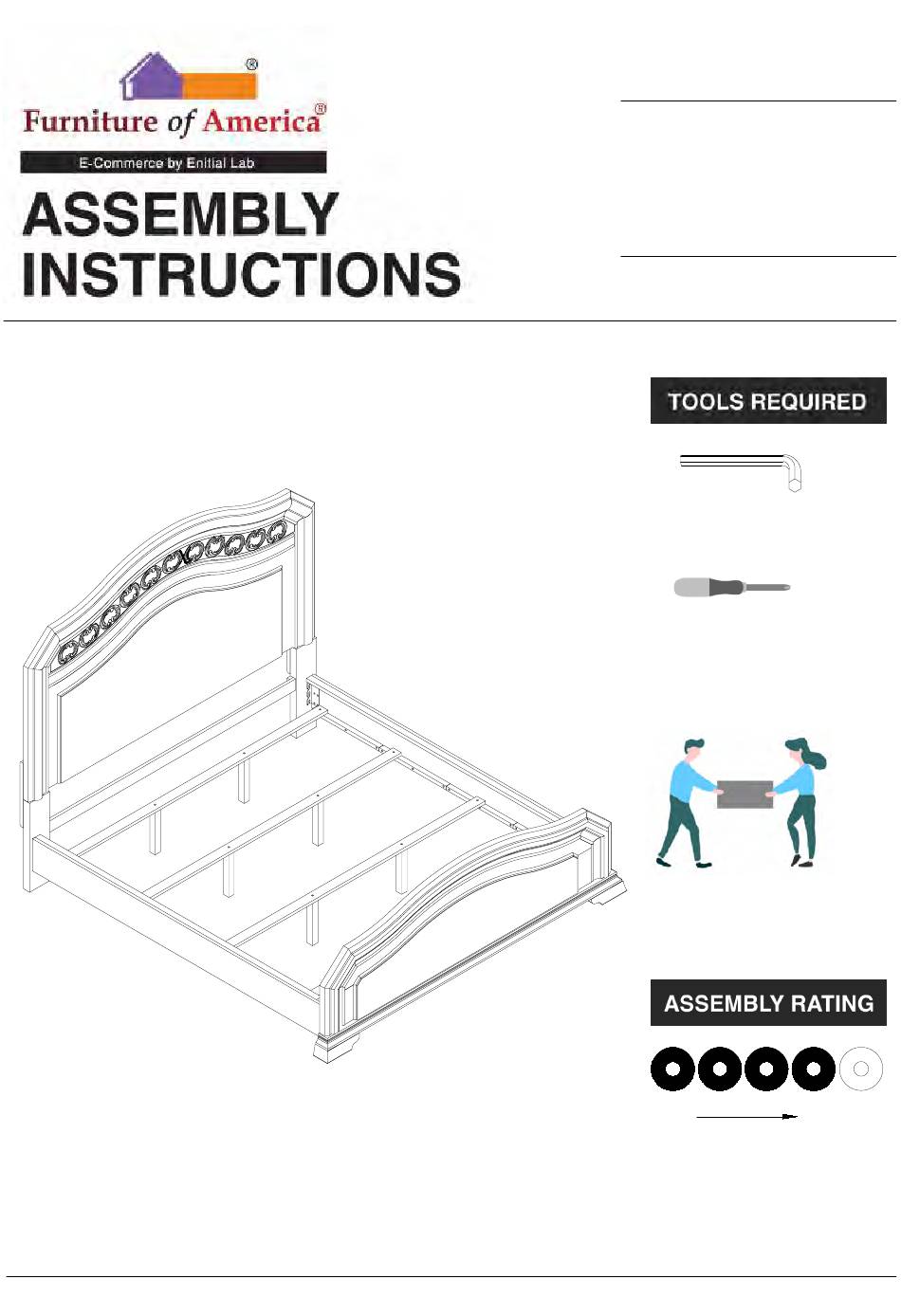

- Page 1 MODEL # CM7751CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 CM7751CK #4 1pc #1 1pc #2 2pcs #3 1pc Footboard Headboard Headboard Leg(L&R) Headboard Bottom Rail #8 4pcs #5 2pcs #6 2pcs #7 8pcs (Ø1/4") Slat Footboard Leg(L&R) Side rail Slat support leg #C 20pcs #A 16pcs #B 20pcs Bolt Ø1/4" x 1-3/4" Lock Washer Ø1/4"...
- Page 6 CM7751CK is packed in 3 cases Carton Disignation Part Hardware #A x 16pcs Headboard #B x 16pcs #C x 16pcs Headboard Leg(L&R) CM7751CK-HB #D x 1pc Headboard Bottom Rail #B x 4pcs Footboard #C x 4pcs Footboard Leg(L&R) CM7751CK-FB Slat support leg Slat CM7751CK-R Side rail...
- Page 7 ASSEMBLY INSTRUCTIONS Prepare 12 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts Part #1 x1pc (#A). Align HB legs (#2R/L) to the holes of the headboard (#1). Secure by using bolts (#A). Part #2 x2pcs Hardware #A x12 pcs Hardware #B x12 pcs Hardware #C x12 pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#F). Part #4 x1pc Align legs (#5R/L) to the holes of the footboard (#4). Secure by using bolts (#F). Part #5 x2pcs Hardware #B x4 pcs Hardware #C x4 pcs Hardware #F x4 pcs #B #C...
- Page 9 ASSEMBLY INSTRUCTIONS Attach support legs (#7) to the holes of the slats (#8), then adjust the leveler on the support legs (#7) according to ground level. Part #7 x8pcs Part #8 x4pcs Hardware #E x8 pcs Align slats to the side rails, secure by using screws (#E). 9 / 9...
