VERSION # 20-08- 19
1 / 9
MODEL #
CM7751D&M
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Calliope CM7751D&M
Summary of Contents for Furniture of America Calliope CM7751D&M

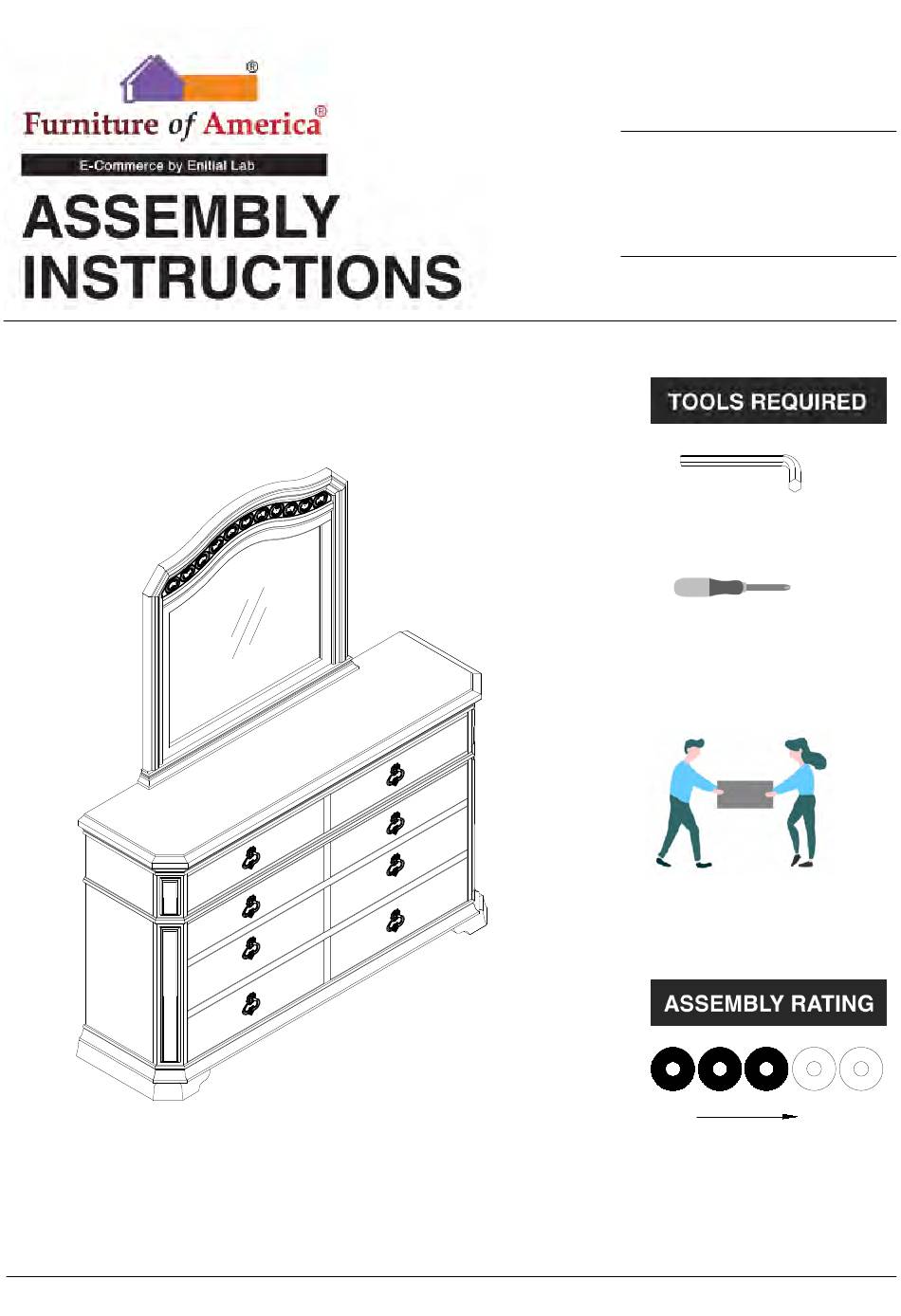

- Page 1 MODEL # CM7751D&M Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 DRESSER &MIRROR CM7751D&M #3 2pcs #4 1pc #1 1pc #2 1pc Mirror Mirror Support Rail Left leg Dresser #6 1pc #5 1pc (Ø1/4") Support Leg Right leg 55x35x35mm HARDWARE #A 4pcs #C 12pcs #B 8pcs #D 12pcs Bolt Ø1/4" x 1-3/4" Bolt Ø1/4"...
- Page 6 CM7751D&M is packed in 2 cases Disignation Part Hardware Carton #A x 4pcs Dresser #C x 4pcs #D x 4pcs Left leg CM7751D #E x 1pc Right leg #F x 1pc Support Leg #B x 8pcs Mirror #C x 8pcs CM7751M #D x 8pcs Mirror Support Rail...
- Page 7 ASSEMBLY INSTRUCTIONS Remove legs from the inside compartment of the dresser. Part #1 x1pc Part #4 x1pc Part #5 x1pc Leg Box Prepare 4 bolts assembly by inserting lock washer (#C), then flat washer (#D) Part #6 x1pc onto bolts (#A). Align legs (#4.#5) to the holes of the dresser (#1).
- Page 8 ASSEMBLY INSTRUCTIONS Prepare 8 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#B). Align mirror support (#3) to the holes of the mirror (#2) Part #2 x1pc and dresser (#1). Secure by using bolts (#A). Part #3 x2pcs Hardware #B x8pcs Hardware #C x8pcs...
- Page 9 9 / 9...
