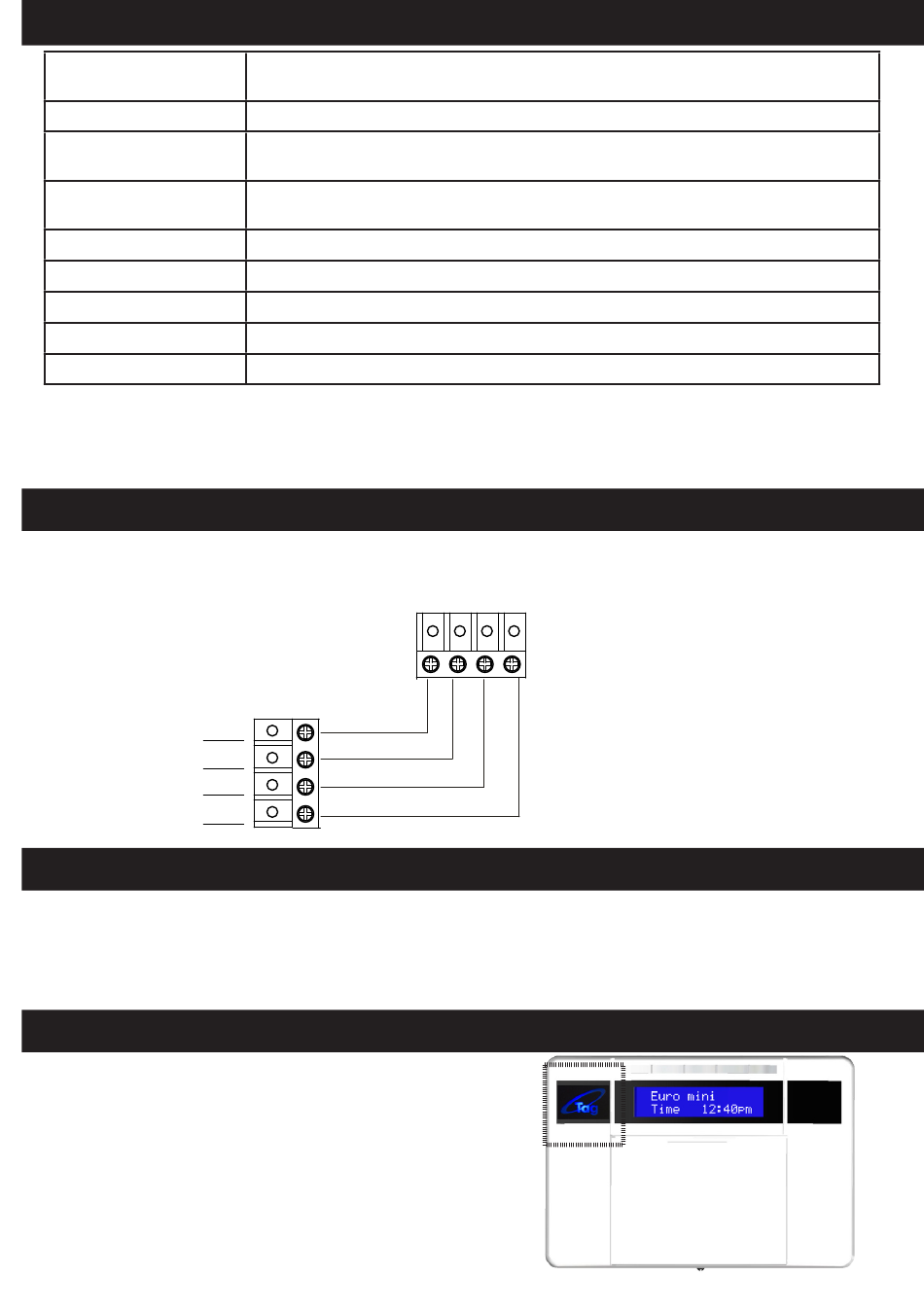

Technical Specification
Compliant with
Security grade
Environmental
class
Temperature
range
Voltage
Current load
Dimensions
Weight
Housing material
This product is sold subject to our standard warranty conditions and is warranted against
defects in workmanship for a period of 18 months. In the interest of continuing improvement
of quality, customer care and design, We reserve the right to amend specifications without
giving prior notice.
Connections for the keypad
D1-
D2+
Keypad
Addressing the keypad
To address the keypad, hold down the 'D' key for 6 seconds and enter code '2000'. Use
the number keys to enter the keypad address and press the 'A' key to save the changes.
The keypad also needs to be enabled in the Engineer menu, please follow instructions in
Programming manual (RINS1210) and the function is 'Assign Keypads/Readers'.
Tag Reader (EUR-068)
If the EUR-068 has been purchased, the tag reader
is enabled, which can be used to program tags to
be used for setting/unsetting. This is done in the
'CHANGE CODES' submenu of the Manager menu D1-
function, for more details please see the control
D2+
panel user manual.
D3
When presenting a tag, please make sure it is
D4
presented in the area marked shown to the right,
-
when it is acknowledged a 'beep' will be heard.
+
Z1
EN50131-3:2009 (as harmonised with EN50131-1:2006+A1:2009
by BSIA Form 179). PD6662:2010
2x
2
-10°C to +40°C. NOTE: The LCD display may not function correctly
at temperatures below +2°C but this will not affect system operation
11-15v DC
50mA
144 x 99 x 34mm
256g
ABS with clear display window from polycarbonate
D3
D4
To the Euro One
Control panel
D1-D2+D3D4
To the Euro mini
Control panel
D1- D2+ D3 D4
