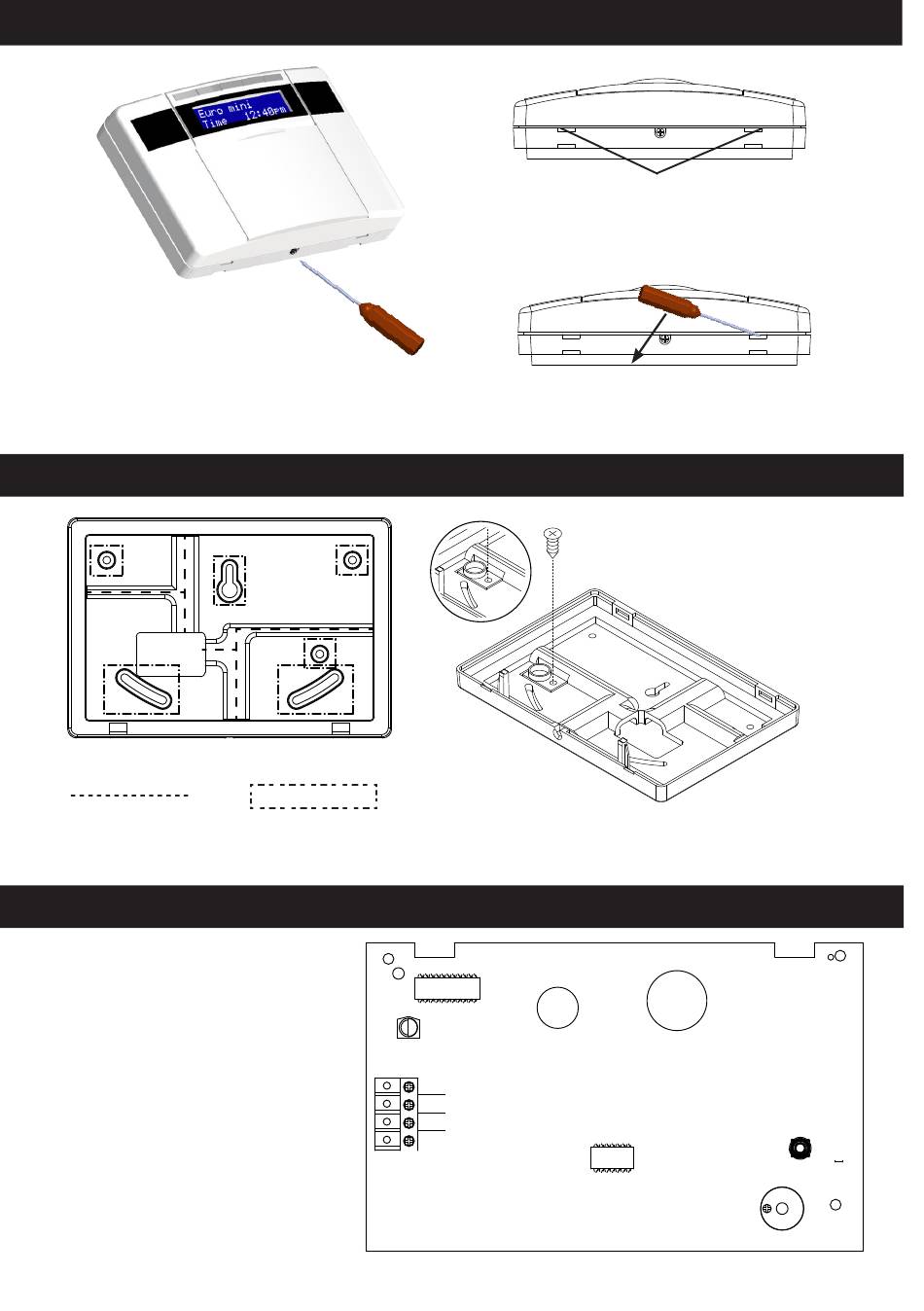

Disassemble the Keypad
1. Loosen the screw on the
underside of the keypad.
NOTE: If the keypad cover is not needed,
there is a bottom keypad cover supplied that
can be fitted
Cable and Screw Mounting Holes
Cable Routes
Location: Keypads/Tag readers should not be mounted on metal surface, or be located within
1m from each other. Loudspeakers also should not be located within 1m from a keypad/tag
reader, other tag reader response will degrade.
The Printed Circuit Board
D1- = 0V
D2+ = 12v+
D3 = RS485 'A' BUS
D4 = RS485 'B' BUS
Screw Holes
D1-
D2+
D3
D4
-
+
Z1
Z2
PGM1
lugs
2. Insert a wide flat-head screw-driver
into each of the two lugs on the underside
of the keypad (as shown above).
3. Lever the screwdriver as shown in
the direction above to open the cover.
Insert a screw into the rear
tamper break out section. If
the keypad casing is pulled off
the wall, the break out section
will stay fixed, and a tamper
activation will occur.
RESET
TAMPER
